Printed in U.S.A. 7400-0621

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template 7400-0000.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

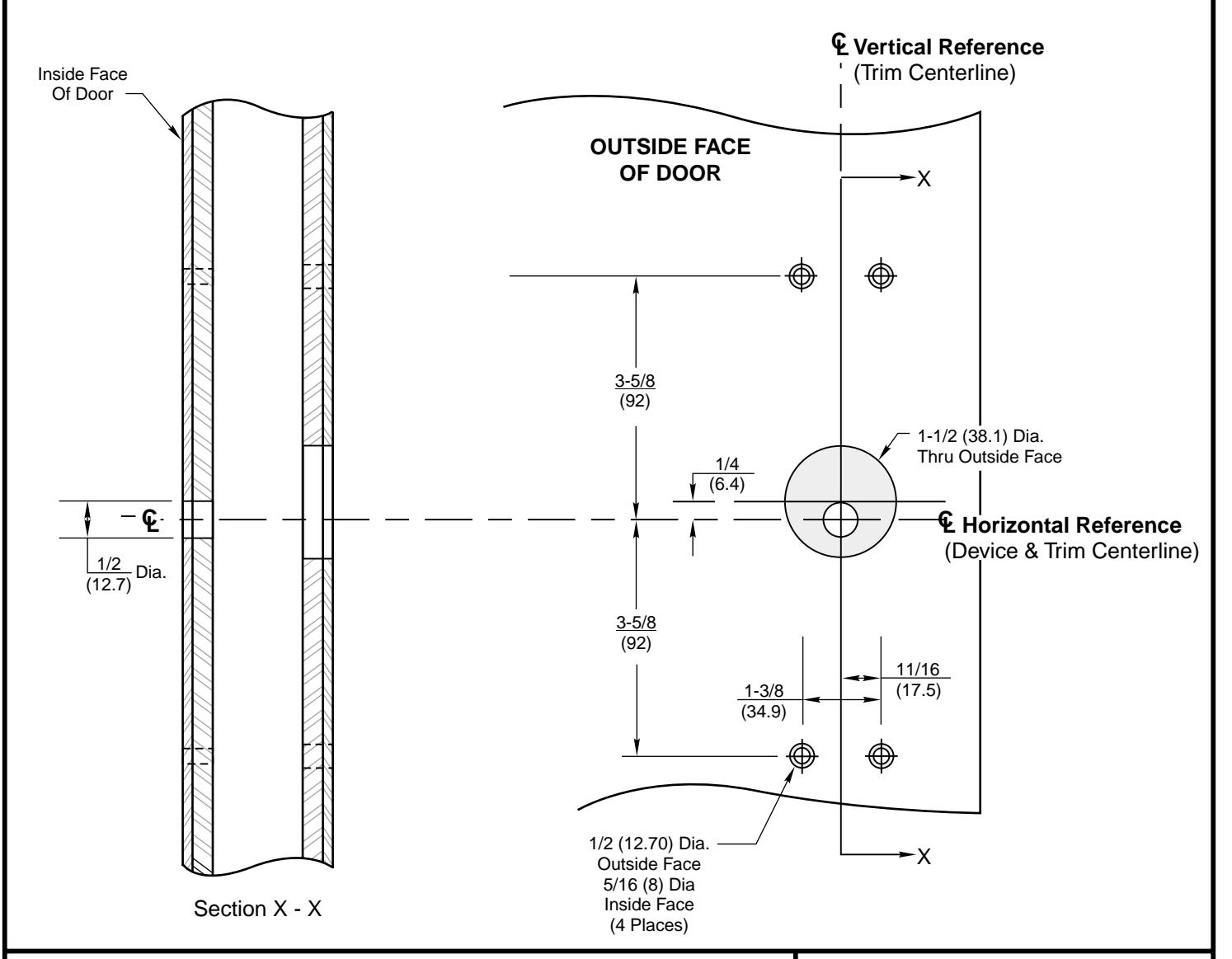

621F Trim

Metal Door Preparation With 1500(F), 2100(F) or 7100(F) Series Rim and Vertical Rod Exit Devices

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER DATE

7400-0621

3-06
