13. For electrical devices (suffixes "-B","-G","-O","-P","-S") also see

RESPONSIBILITY

TYPICAL DETAIL

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

6210, 6215, 7210 & 7215 Narrow Stile Surface Vertical Rod Panic Devices with Bottom Pullman Latch Option

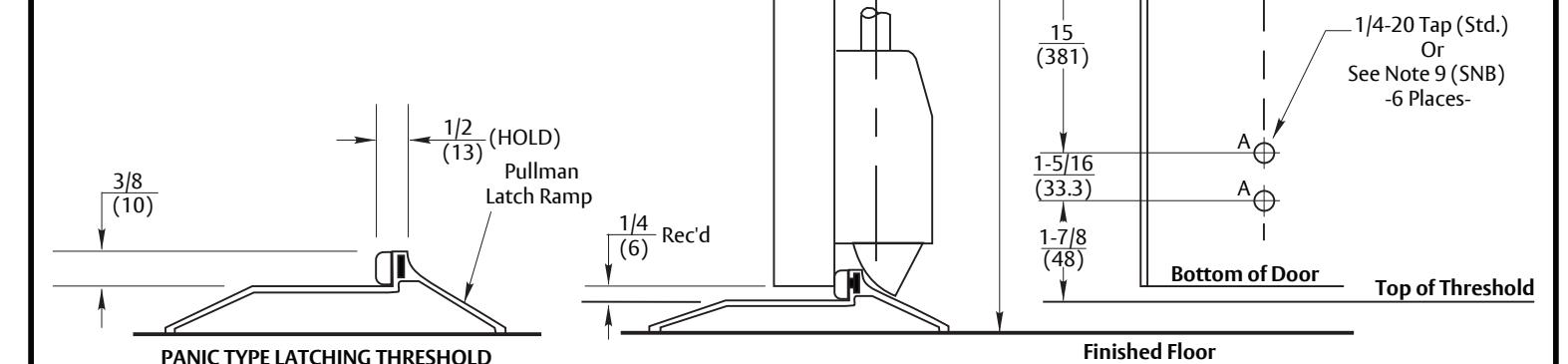

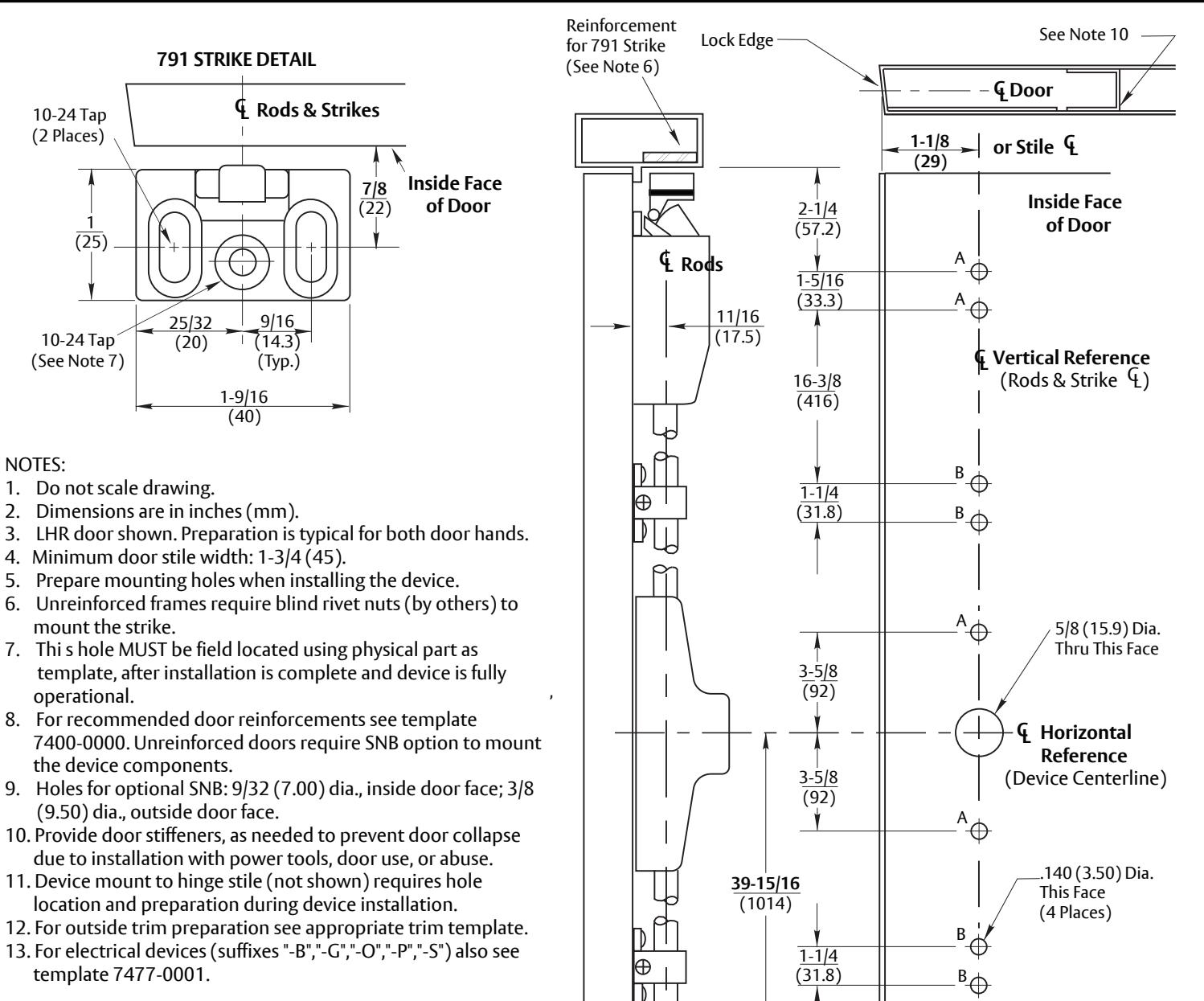

Application for Metal Door, Blade Stop Frame, and Latching Threshold; 791 Top Strike

ASSA ABLOY

SLIPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7472-0016 01 - 24
