ASSA ABLOY ACCENTRA 620F Trim for 1500(F), 2100(F), 6100ED(F), and 7100(F) Series Wide Stile Rim_7400-1620

1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template. 2. Do not scale drawing. NOTES :

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

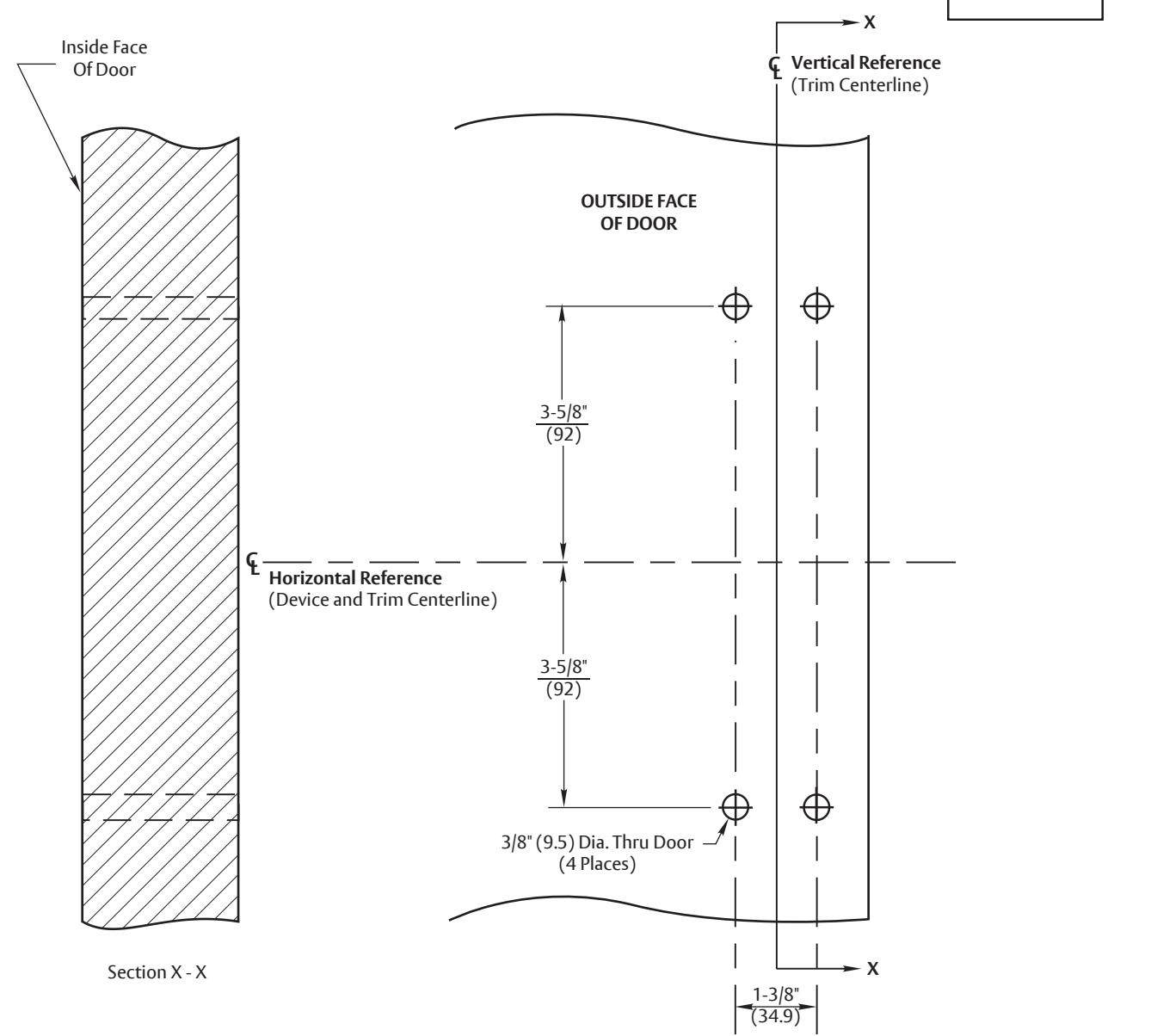

620F Trim With 1500(F), 2100(F), 6100(F), or 7100(F) Series Rim, Mortise and Vertical Rod Exit Devices

Wood or Composite Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-800-438-1951.

SUPERSEDES DO NOT SCALE DRAWING 7400-1620 (05-15)

TEMPLATE NUMBER

7400-1620 DATE

12-23
