ASSA ABLOY ACCENTRA 6200, 6250, 7200 & 7250 Narrow Stile Rim and SquareBolt with M300 Mullion Pair_7472-0300

CL 3-5/8 (92) 13/16 (21) 5/8 (15.9) Dia. Thru this Face Vertical Reference INSIDE FACE OF DOOR Face of M300 Mullion (See Note 6)

3-5/8 (92)

1/4-20 Tap (Std.) or See Note 8 (SNB) - 2 Places -

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are in inches(mm).
• 3. LHR door shown. Preparation is typical for both door hands.
• 4. Minimum door stile width: 2-1/4 (57).
• 5. Prepare mounting holes when installing the device.
• 6. For M300 mullion installation see template 7400-0300.
• 7. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the device components.
• 8. Holes for optional SNB: 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face.

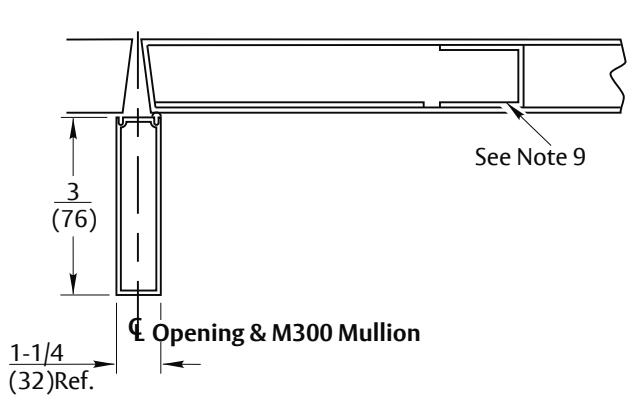

• 9. Provide door stiffeners, as needed to prevent door collapse due to installation with power tools, door use, or abuse.
• 10. Device mount to hinge stile (not shown) requires holes location and preparation during device installation.
• 11. For outside trim preparation see appropriate trim template.
• 12. For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.

CL 39-15/16 (1014) Horizontal Reference (Device & Strike Centerline)

Finished Floor

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

6200, 6250, 7200 & 7250 Narrow Stile Rim Panic Deviceswith M300 Mullion

Application for a Pair of Aluminum or Metal Doors

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7472-0300 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
