ASSA ABLOY ACCENTRA 6200, 6205, 7200, 7205 Narrow Stile Rim 759 Strike Aluminum Door and Blade Stop_7472-0000

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

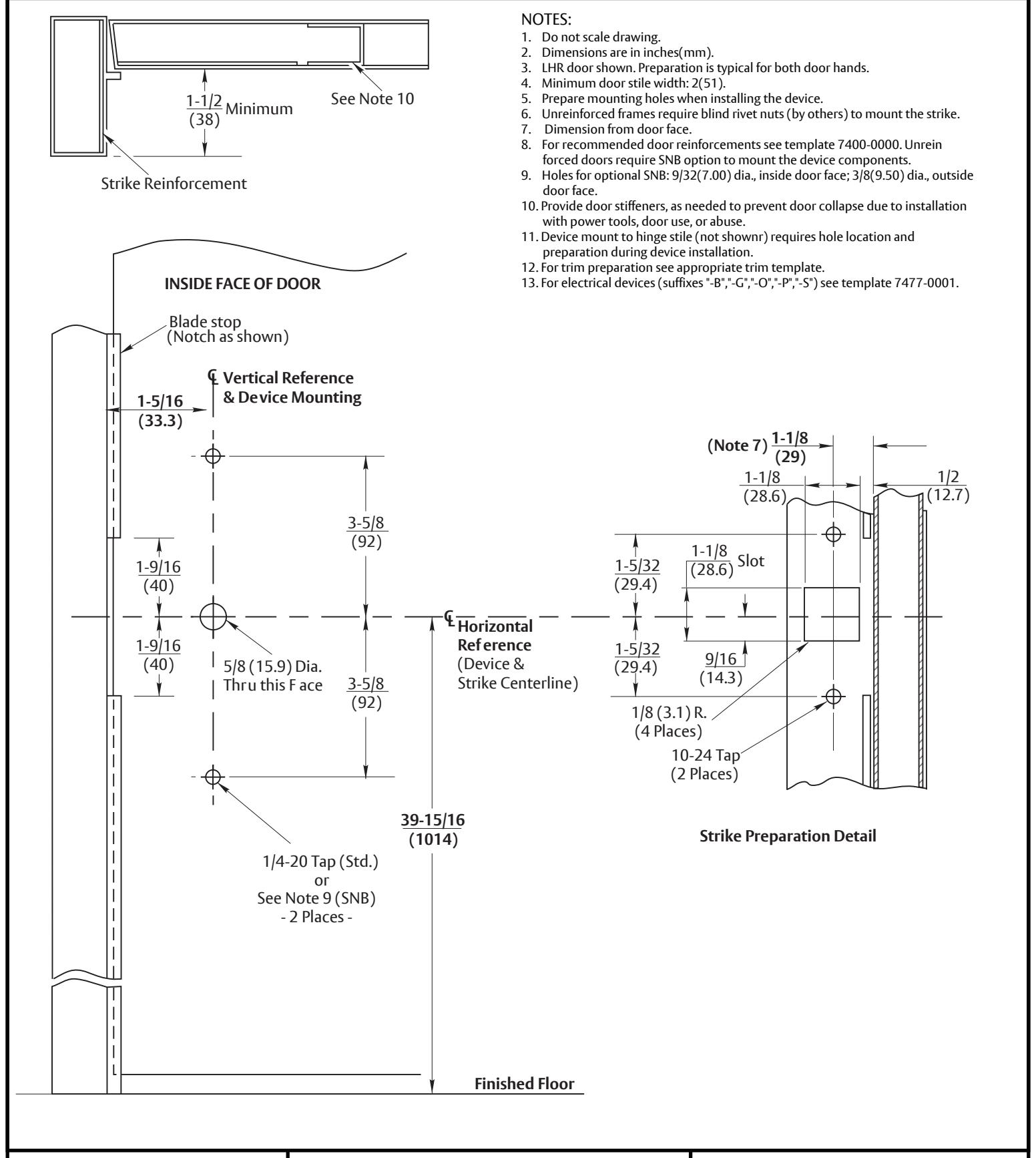

6200, 6205, 7200 & 7205 Narrow Stile Rim Panic Devices

Application for Aluminum Door and Blade Stop Frame

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7472-0000 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 05/15 01-24

Experience a safer and more open world
