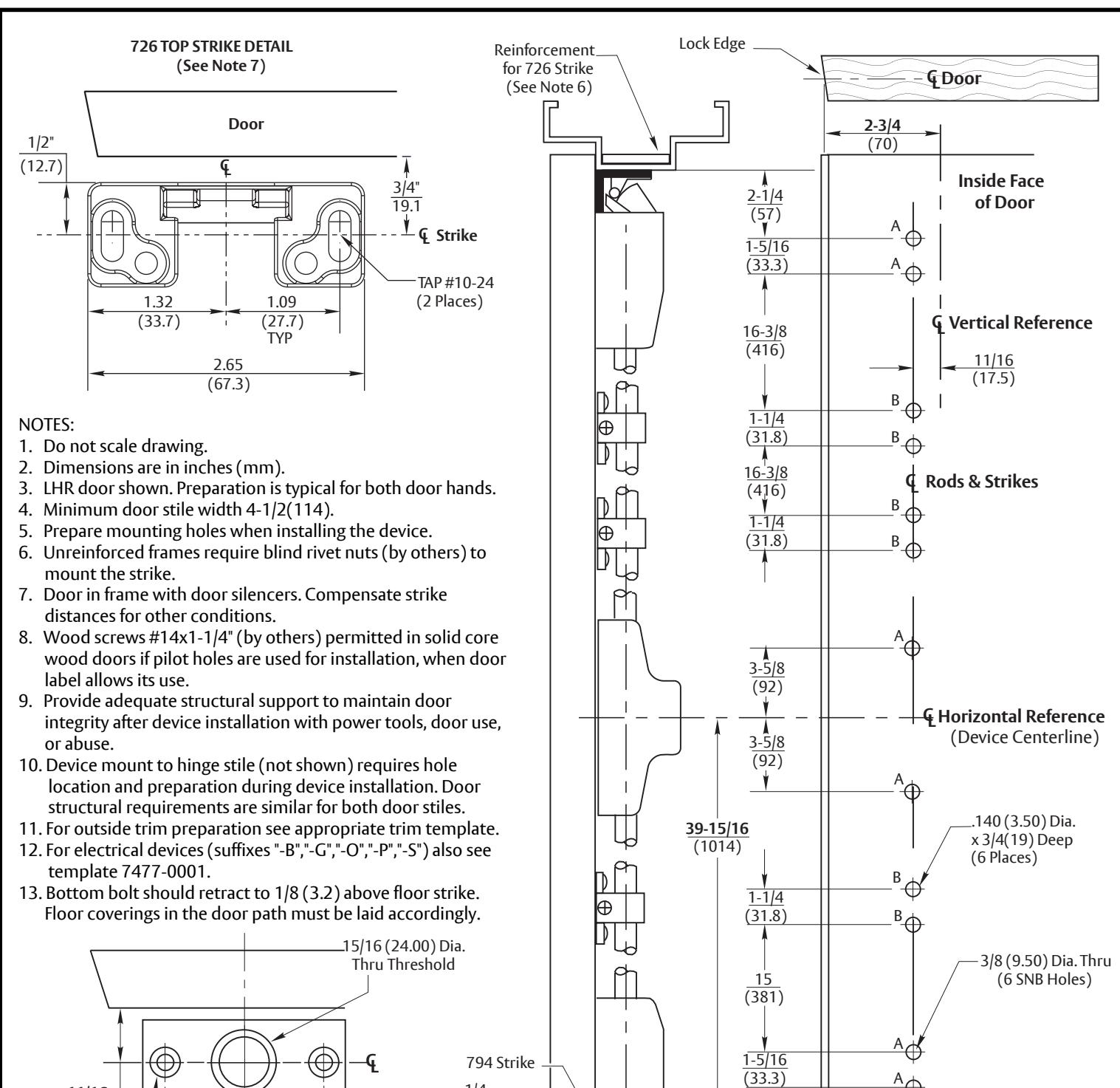

ASSA ABLOY ACCENTRA 6170F90-10, 6170-10, 6175-10, 7170WF90-10, 7170W-10, 7175W-10 Wide Stile SVR 794_7470-1071

CL CL Rods & Strikes A/R For 1/4-20 11/16 (17.5) 1 (25.4) 1 (25.4) From Door Face

794 STRIKE DETAIL

6170F90-10, 6170-10, 6175-10, 7170WF90-10, 7170W-10, 7175W-10 Surface Vertical Rod Exit Devices

11/16 (17.5)

1/2 (13)

1/4 (6)

CL

Application for Wood or Composite Door and HM Frame with 1/2" Threshold and Optional 794 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

Finished Floor

1/4 (6) Recommended 3/4 (19) Maximum

Bottom of Door

1-3/8 (35)

Rods, Deadbolt and Floor Strike

7470-1071 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01/17 12 -23

RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR

RESPONSIBILITY DOOR AND FRAME MANUFACTURERS ARE

PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

Experience a safer and more open world

Screw Anchor (2 Places)
