ASSA ABLOY ACCENTRA 6170F90-10, 6170-10, 6175-10, 7170WF90-10, 7170W-10, 7175W-10 Wide Stile SVR 790_7470-1070

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

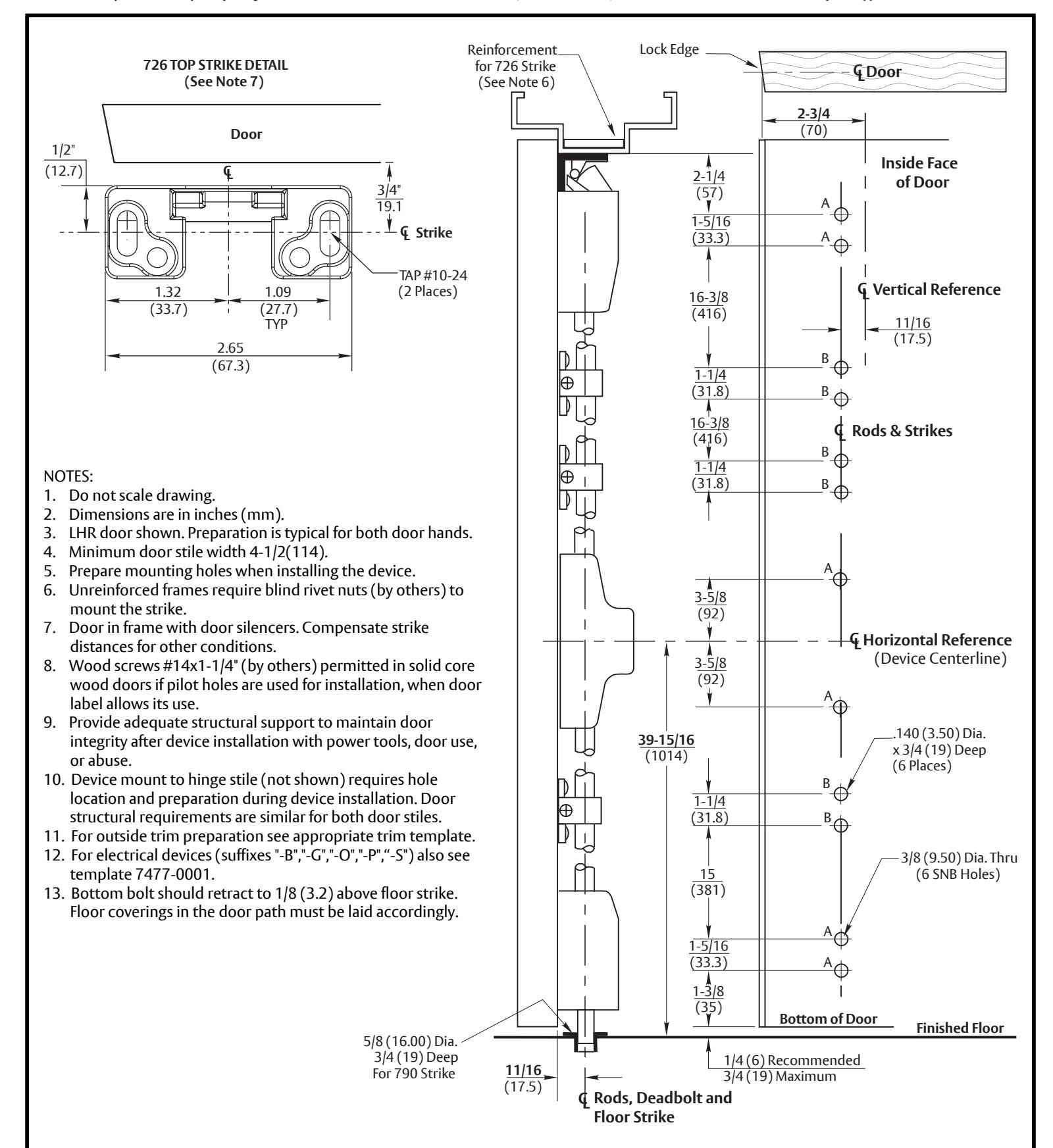

6170F90-10, 6170-10, 6175-10 7170WF90-10, 7170W-10, 7175W-10 Surface Vertical Rod Exit Devices

Application for Wood or Composite Door and HM Frame with 790 Floor Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7470-1070 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01/17 12-23
