ASSA ABLOY ACCENTRA 6170F90-10, 6170-10, 6175-10 7170F90-10, 7170-10, & 7175-10 Wide Stile SVR 726_7470-0071

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

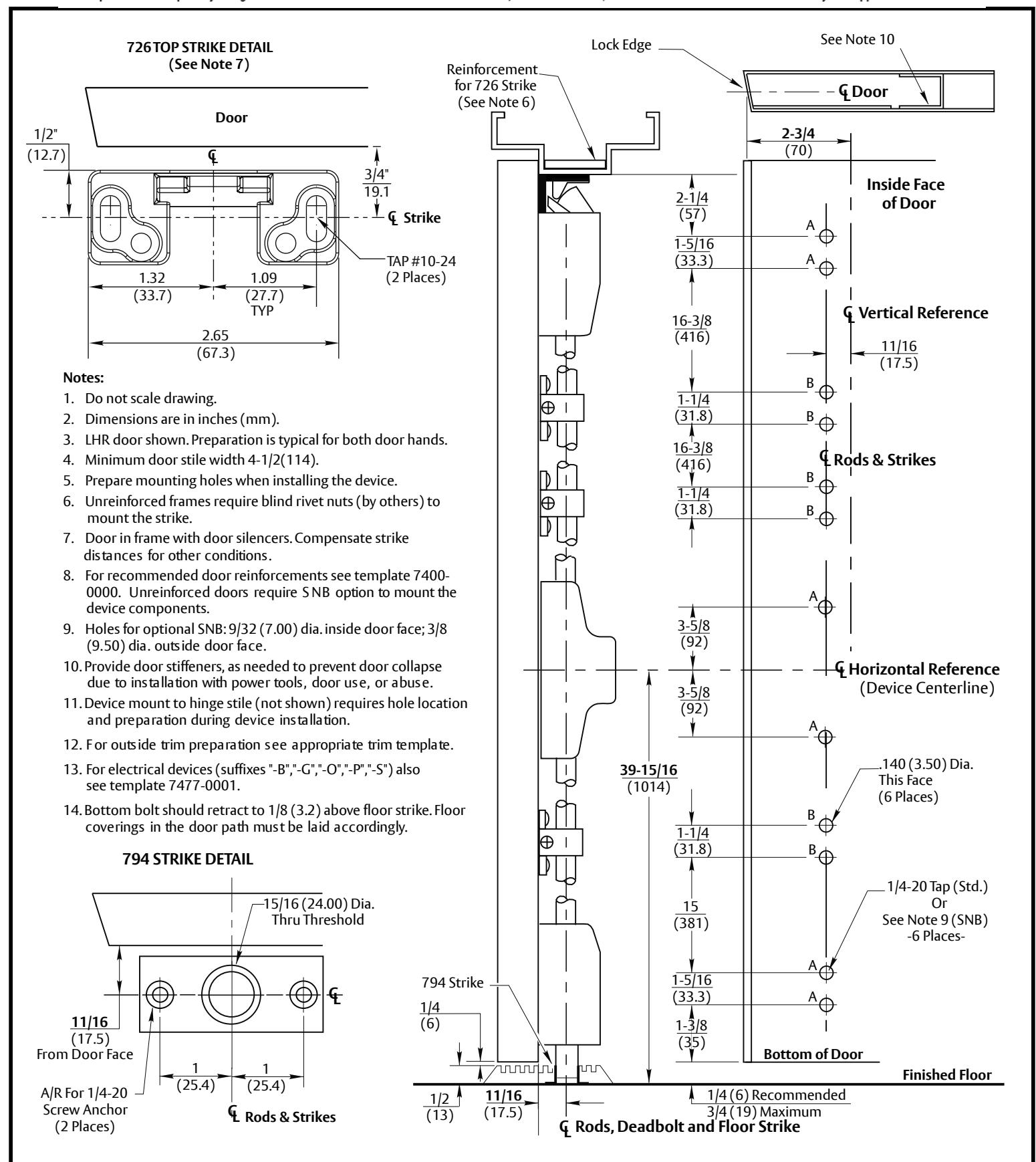

6170F90-10, 6170-10, 6175-10, 7170F90-10, 7170-10, & 7175-10

Surface Vertical Rod Exit Devices

Application for Metal Door and Frame with 1/2" Threshold and 794 Optional Floor Strike 726 Top Strike

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7470-0071 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
