ASSA ABLOY ACCENTRA 6160(F90), 7160(F90) Wide Stile CVR 761 Top and 794 Floor Strike Metal Door_7470-0062

Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2002, 2015, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

Notes:

• Do not scale drawing. 1.
• Dimensions are in inches (mm). 2.
• Preparation is typical for both hands. 3.
• Minimum door stile width: 4-1/2 (114). 4.
• Prepare mounting holes when installing the device. 5.

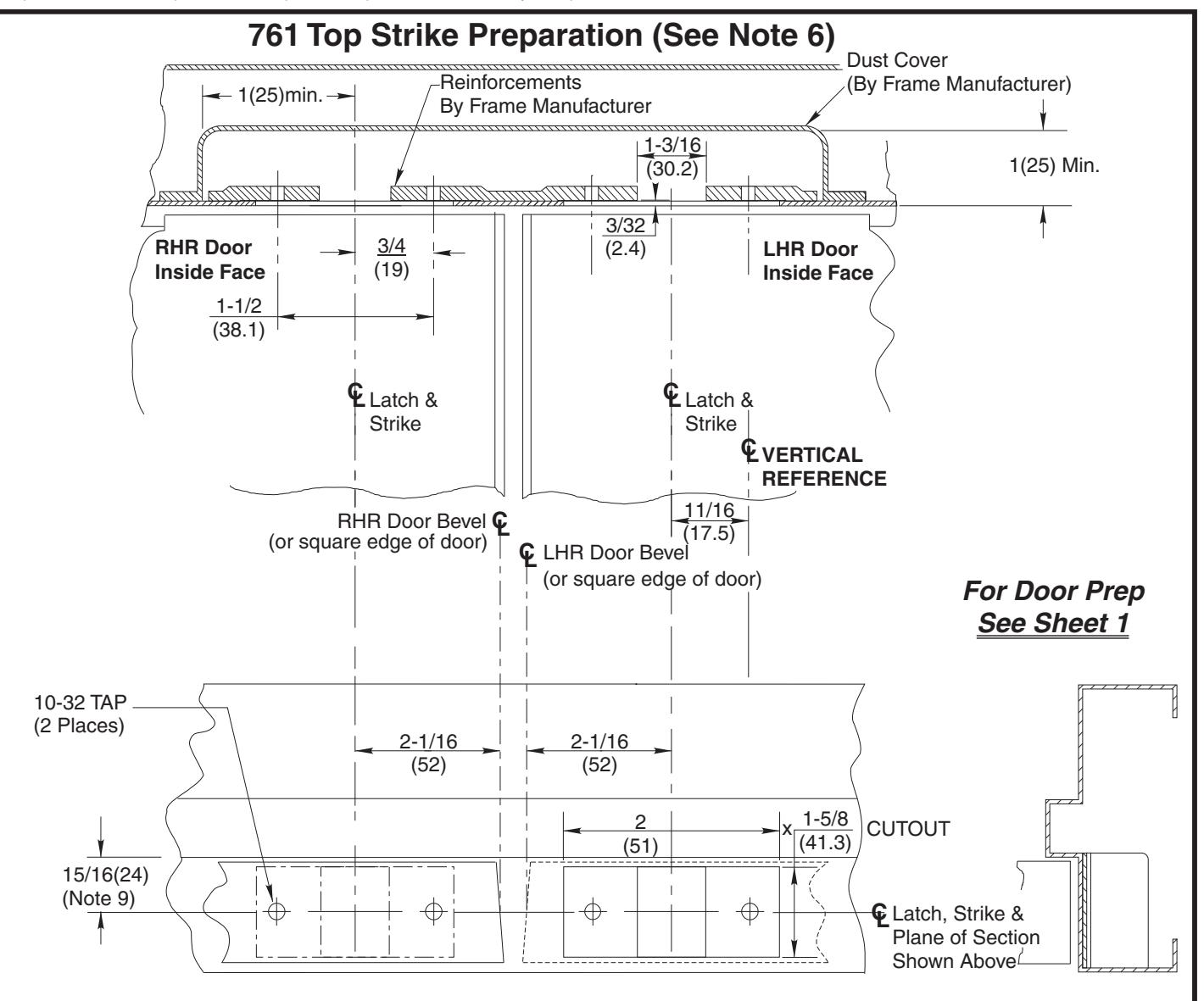

• Drawing shows elevation (frame bisected on strike center), bottom view looking up and side view. 6.
• Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse. 7.
• For recommended door reinforcements see template 7400-0000. 8.
• Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle. 9.

• Device mount to hinge stile (not shown) requires hole location and preparation during device installation. 10.
• For outside trim preparation see appropriate trim template. 11.
• For electrical devices (suffixes "-B", "-G", "-O", "-P", "-S") also see template 7477-0001. 12.
• Holes for optional SNB (Required for unreinforced doors): 9/32 (7.00) dia., inside door face; 3/8 (9.50) dia., outside door face. 13.
• Maximum thickness 5/32 (4.0) when outside escutcheon trim is used. 14.
• Bottom bolt should retract to 1/8 (3.2) above floor strike. Floor coverings in the door path must be laid accordingly. 15.

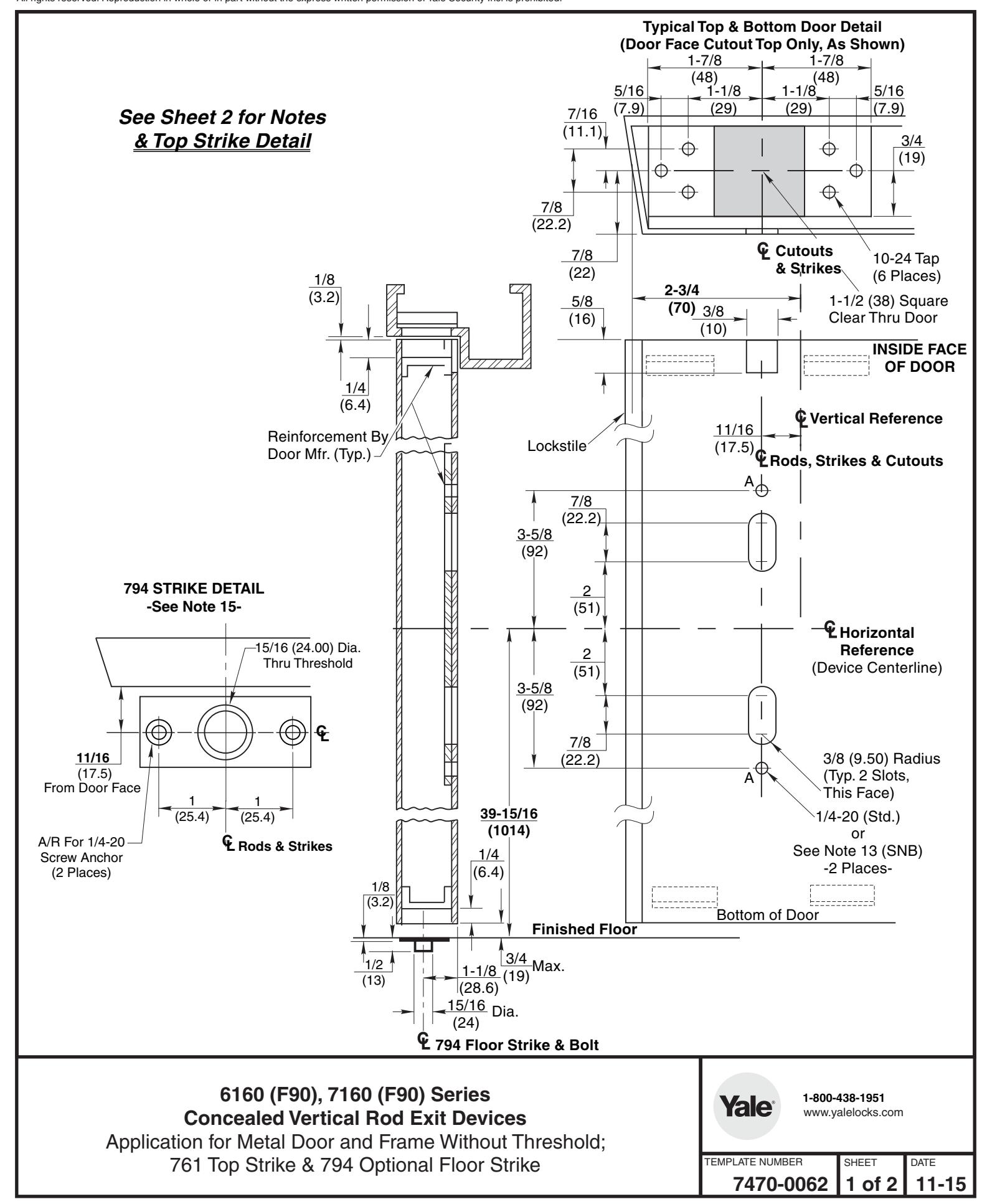

6160 (F90), 7160 (F90) Series 1-800-438-1951 Concealed Vertical Rod Exit Devices

Application for Metal Door and Frame Without Threshold; 761 Top Strike & 794 Optional Floor Strike
