ASSA ABLOY ACCENTRA 6160(F90)(-10), 7160(F90)(-10), 6165(-10), & 7165(-10) Series Wide Stile CVR 761_7470-1061

Open the original PDF document

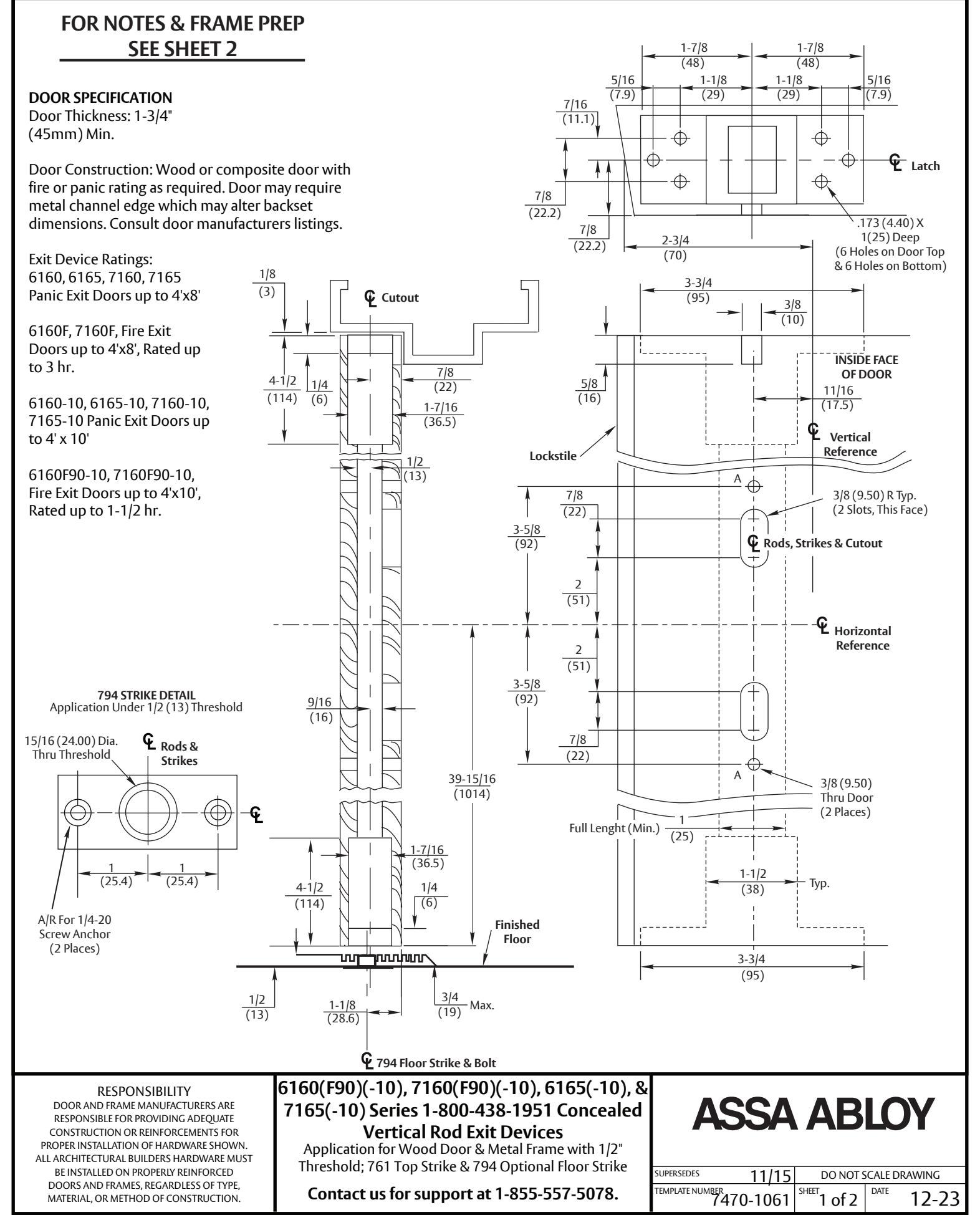

Dust Cover (By Frame Manufacturer) 761 Top Strike Preparation (See Note 6) VERTICAL REFERENCE LHR Door Inside Face RHR Door Inside Face CUTOUT For Door Prep See Sheet 1 1-3/16 1-1/2 3/32 3/4 (30.2) (2.4) 1(25) Min. 1(25) Min. 11/16 (17.5) 2-1/16 (52) 2-1/16 (52) (19) (38.1) Reinforcements By Frame Manufacturer Latch & Strike Latch & Strike RHR Door Bevel (or square edge of door) 15/16(24) 10-32 TAP (2 Places) LHR Door Bevel (or square edge of door) 2 (51) 1-5/8 (41.3)

NOTES:

1. Do not scale drawing.
2. Dimensions are in inches (mm).

(Note 9)

3. Preparation is typical for both hands.
4. Minimum door stile width: 4-1/2 (114).
5. Prepare mounting holes when installing the device.
6.Drawing shows elevation (frame bisected on strikecenter), bottom view looking up and side view.
7. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
8. This template does not cover devices without bottom rod ("-LBR" Series).

9. Door located in frame for door silencers. If not used, compensate this dimension to seat the door against the stop without rattle.

Latch, Strike & Plane of Section Shown Above

10.Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both stiles.
11. For outside trim preparation see appropriate trim template.
12. For electrical devices (suffixes "-B", "-G", "-O", "-P", "-S") also see template 7477-0001.
13. Bottom bolt should retract to 5/32 (4.0) above floor strike. Floor coverings in the door path must be laid accordingly.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

6160(F90)(-10), 7160(F90)(-10), 6165(-10) & 7165(-10) Series 1-800-438-1951

Concealed Vertical Rod Exit Devices Application for Wood Door & Metal Frame;

761 Top Strike & 794 Optional Floor Strike MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.
