ASSA ABLOY ACCENTRA 6150F, 7150F Wide Stile SquareBolt 757F Strike Wood or Composite Door and H.M_7470-1052

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

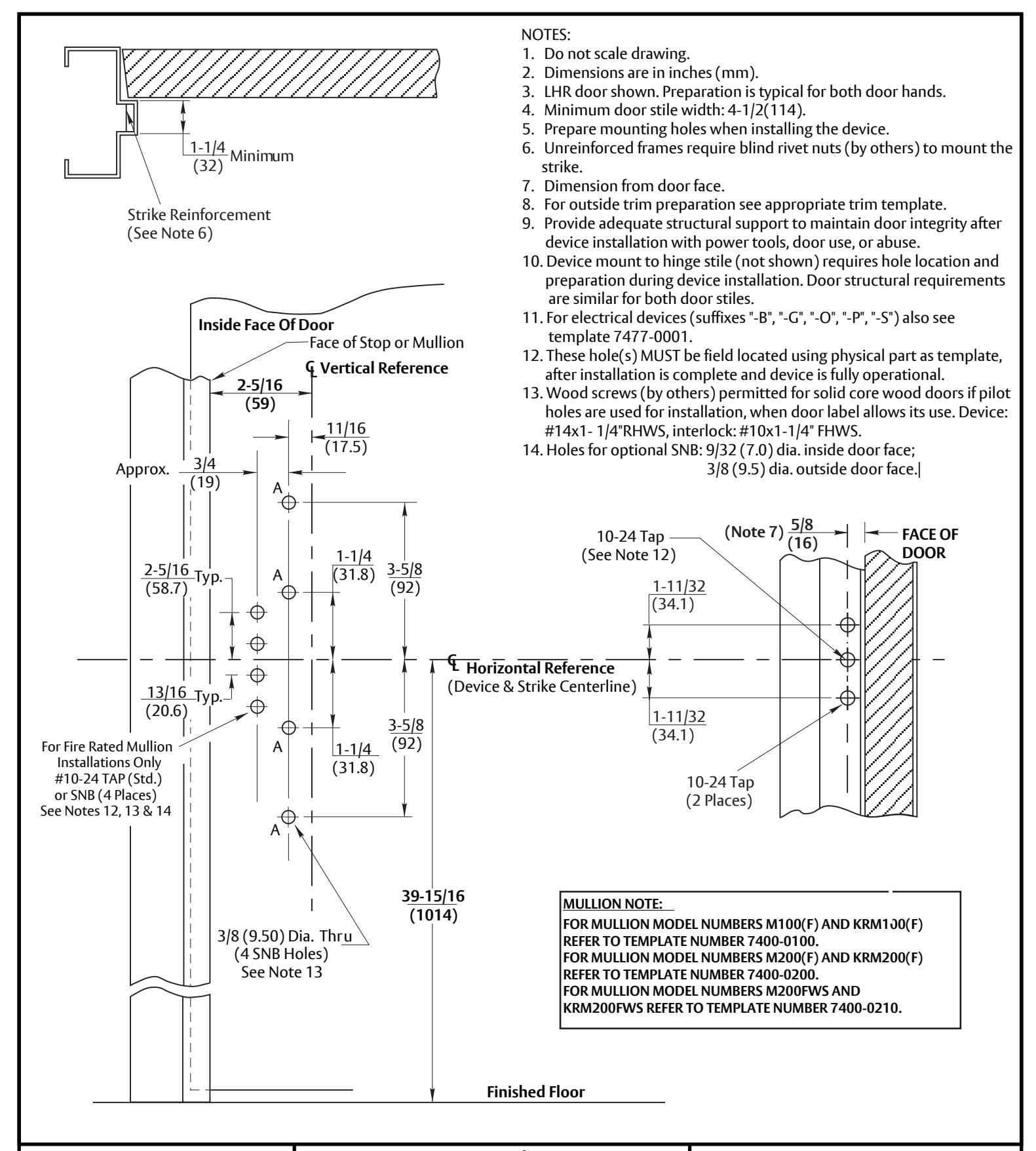

6150F & 7150F SquareBolt Fire Exit Devices with 757F Strike

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

7470-1052 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 05/15

12-23
