ASSA ABLOY ACCENTRA 6150F, 7150F Wide Stile SquareBolt 757F Strike Metal Door and Frame or Mullion_7470-0052

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

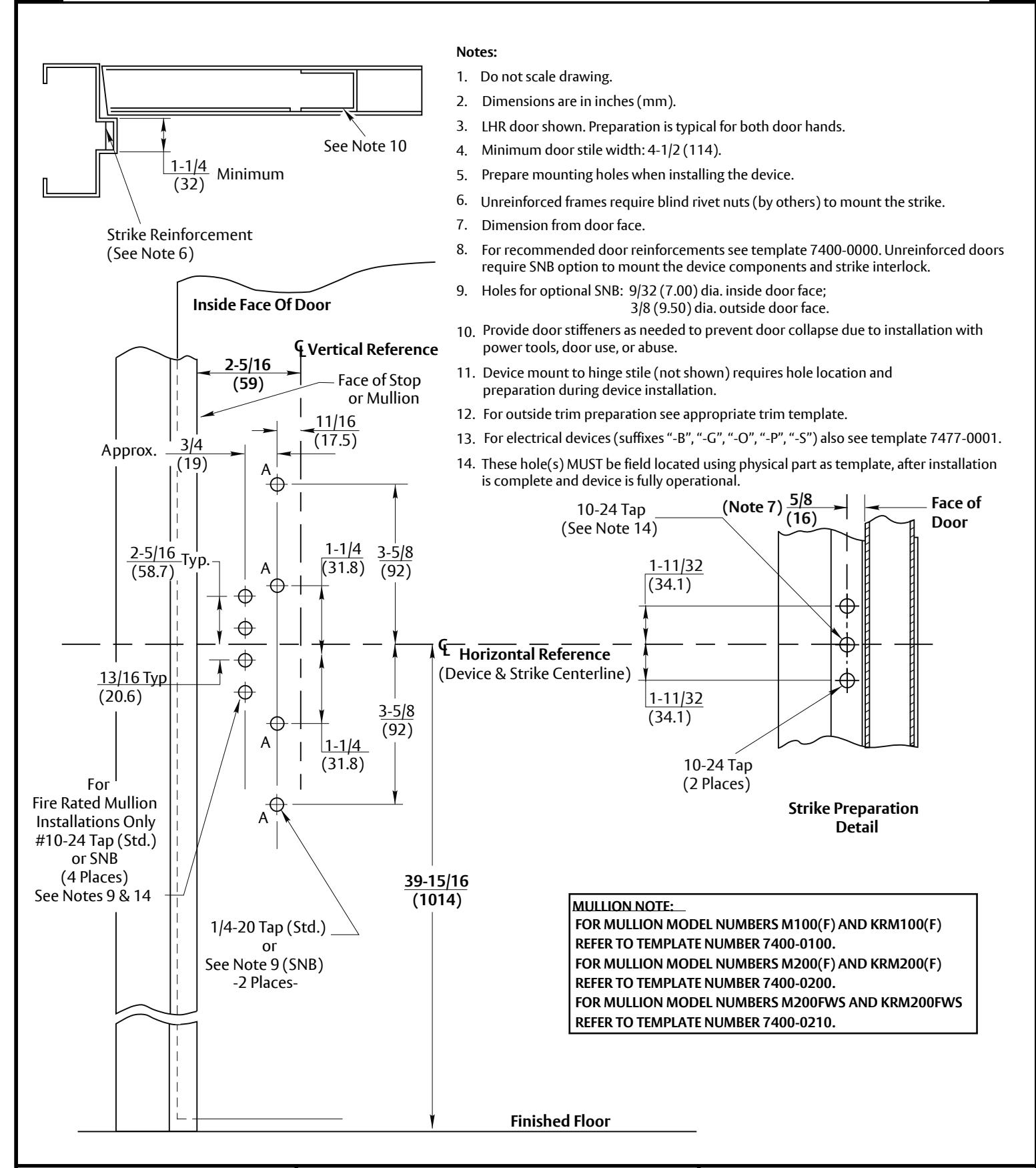

6150F, 7150F SquareBolt® Fire Exit Devices with 757F Strike

Application for Fire Labeled Metal Door and Frame or Mullion

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7470-0052 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
