ASSA ABLOY ACCENTRA 6150, 6155, 7150, 7155 Wide Stile SquareBolt 757F Strike Wood or Composite Door_7470-1050

Open the original PDF document

View PDF

  • NOTES: 1. Do not scale drawing.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Minimum door stile width: 4-1/2(114).
  • 5. Prepare mounting holes when installing the device.
  • 6. Unreinforced frames require blind rivet nuts (by others) to mount the strike.
  • 7. Dimension from door face.
  • 8. For outside trim preparation see appropriate trim template.
  • 9. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
  • 10. Device mount to hinge stile (not shown) requires hole location and preparation during device installation. Door structural requirements are similar for both door stiles.
  • 11. For electrical devices (suffixes "-B", "-G", "-O", "-P", "-S") also see template 7477-0001.
  • 12. This hole MUST be field located using physical part as template, after installation is complete and device is fully operational.
  • 13. Wood screws (#14x1-1/4"RHWS, by others) permitted for solid core wood doors if pilot holes are used for installation.

RESPONSIBILITY

Inside Face Of Door

Strike Reinforcement (See Note 6)

1-1/4

(32) Minimum

2-5/16

CL Vertical Reference

Face of Stop or Mullion

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

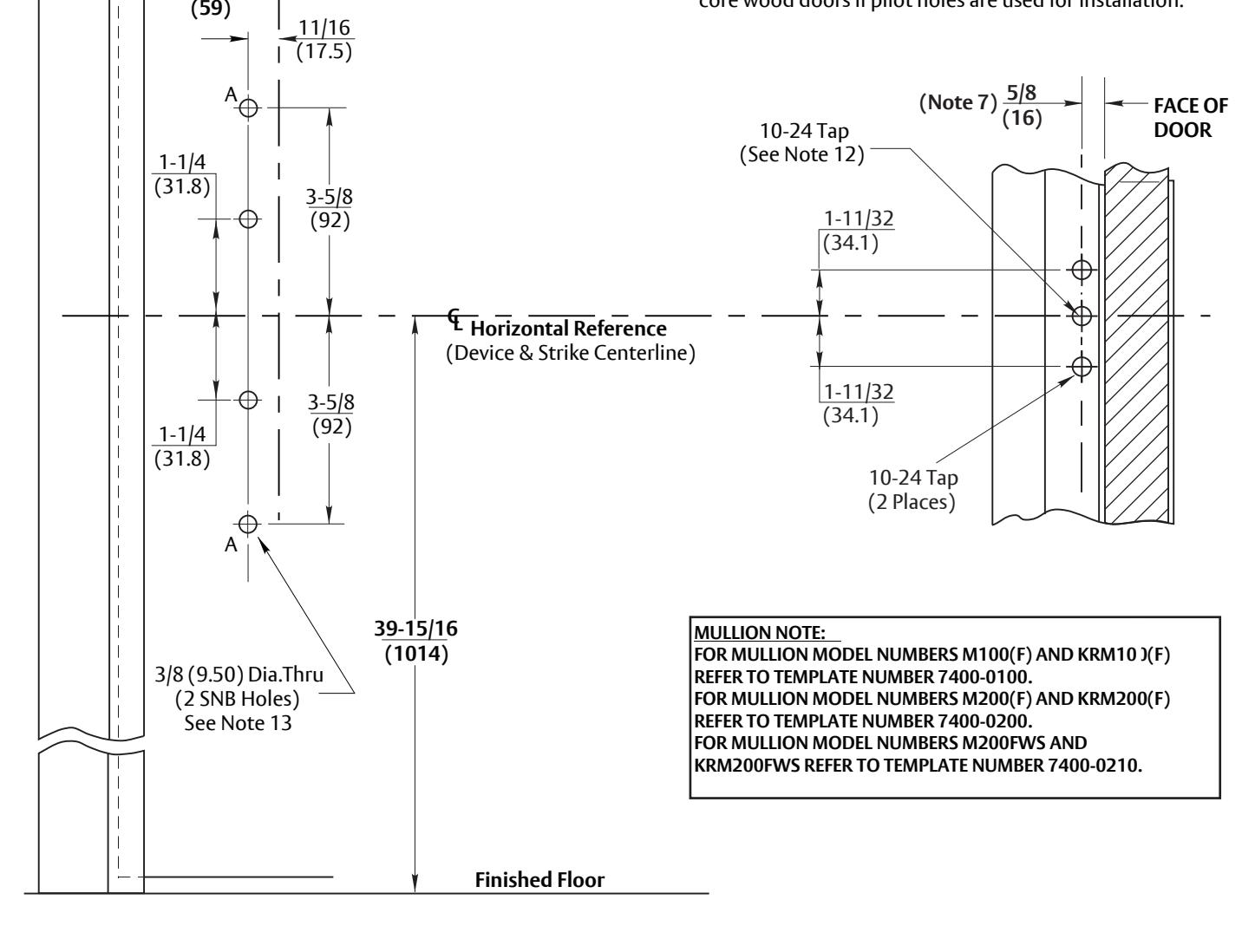

6150, 6155, 7150 & 7155 SquareBolt Panic Devices with 757F Strike

Application for Wood or Composite Door and H.M. Frame or Mullion (Not for Fire Labeled Devices)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES 05/15 DO NOT SCALE DRAWING
TEMPLATE NUMBER 7470-1050 DATE 12-23
