ASSA ABLOY ACCENTRA 6150, 6155, 7150, 7155 Wide Stile SquareBolt 757F Strike Metal Door and Frame_7470-0050

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

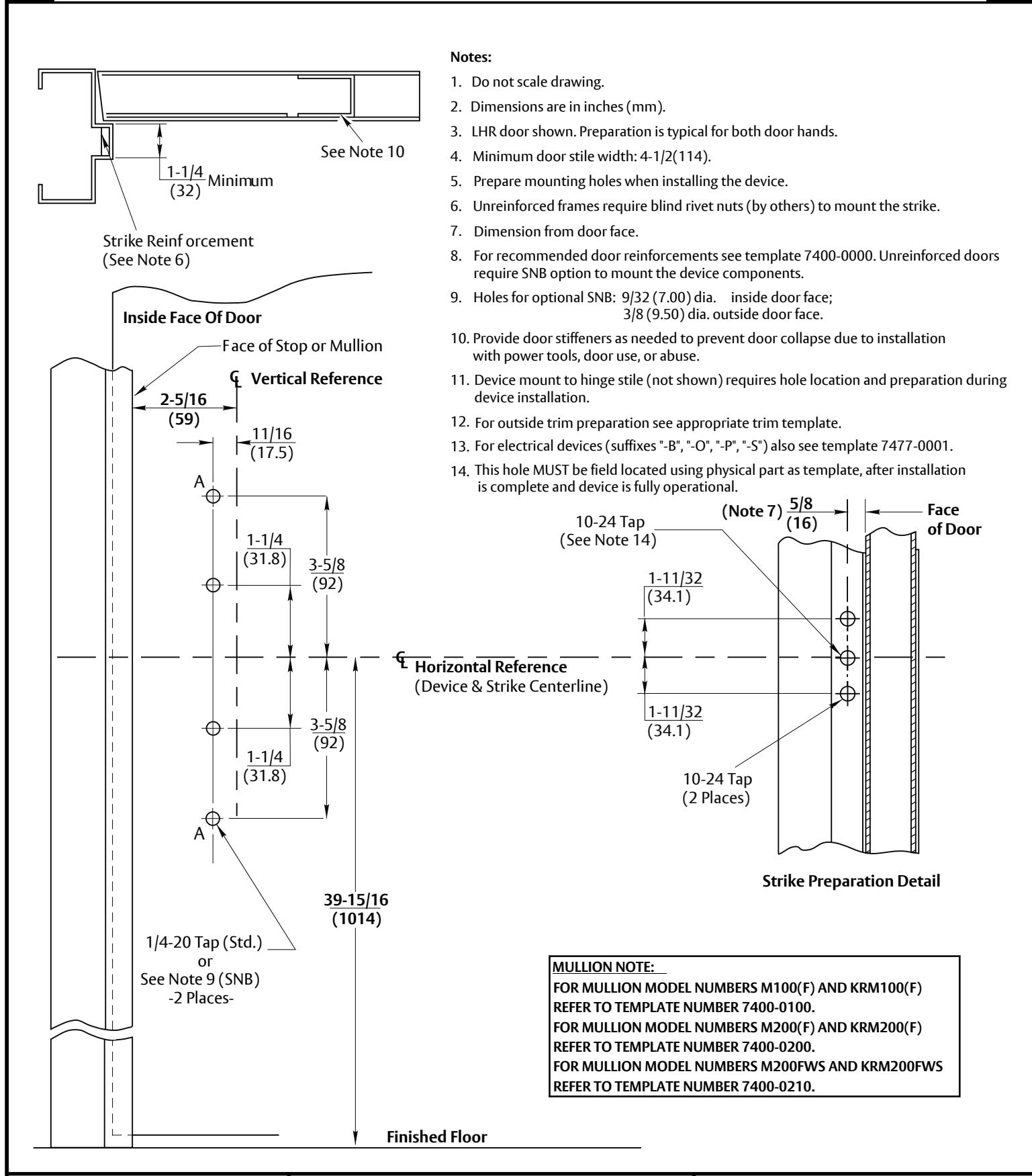

6150, 6155, 7150 & 7155 SquareBolt Panic Devices with 757F Strike Application for Metal Door and Frame or Mullion (Not for Fire Labeled Devices)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7470-0050 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
