ASSA ABLOY ACCENTRA 6100F, 7100F Wide Stile Rim 757F Strike Wood or Composite Door and H.M. Frame_7470-1002

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

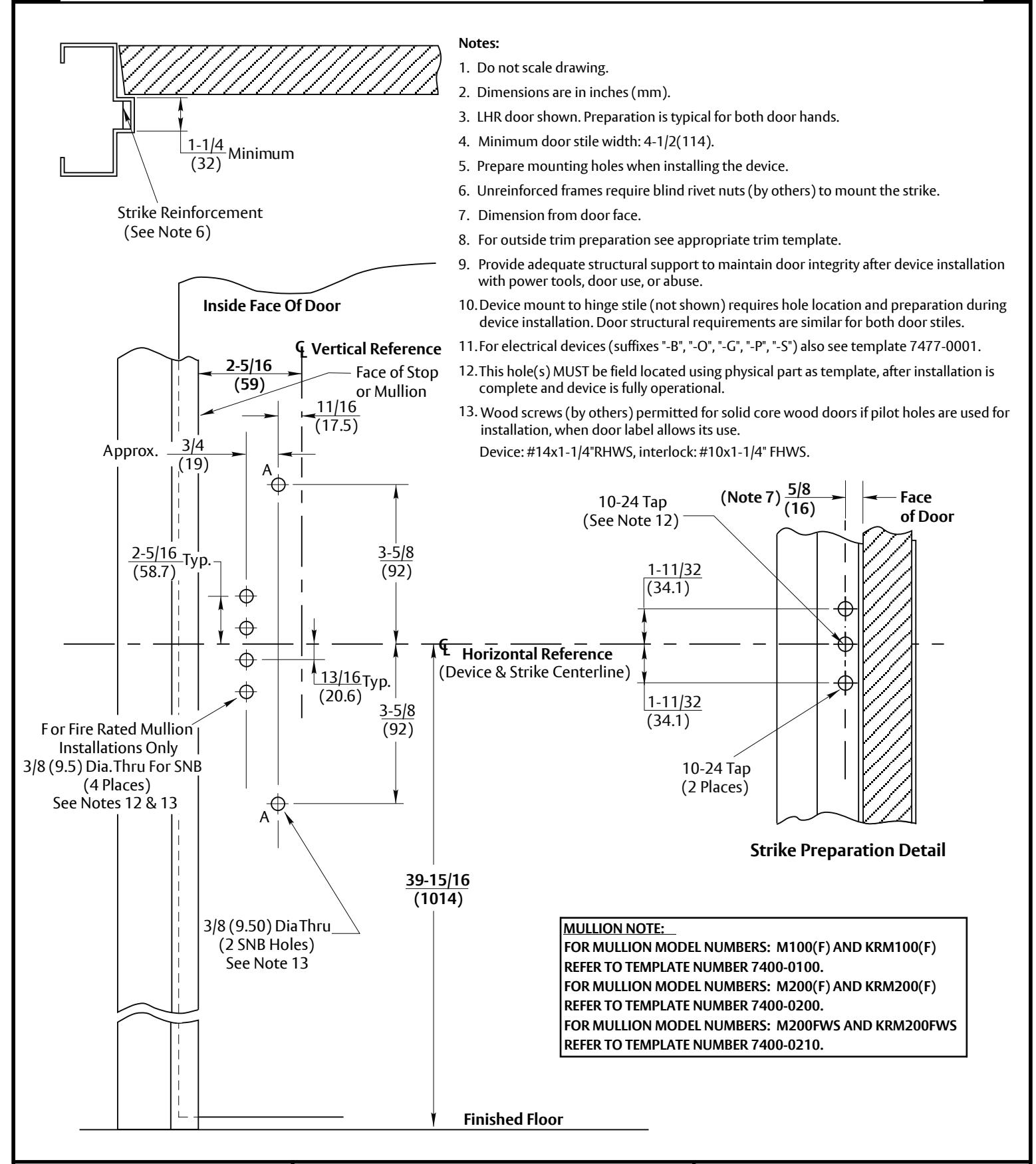

6100F & 7100F Rim Fire Exit Devices with 757F Strike

Application for Fire Labeled Wood or Composite Door and H.M. Frame or Mullion

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7470-1002 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
