ASSA ABLOY ACCENTRA 6100(F), 7100(F) Wide Stile Rim 757F Strike Metal Door and Frame or Mullion_7470-0002

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

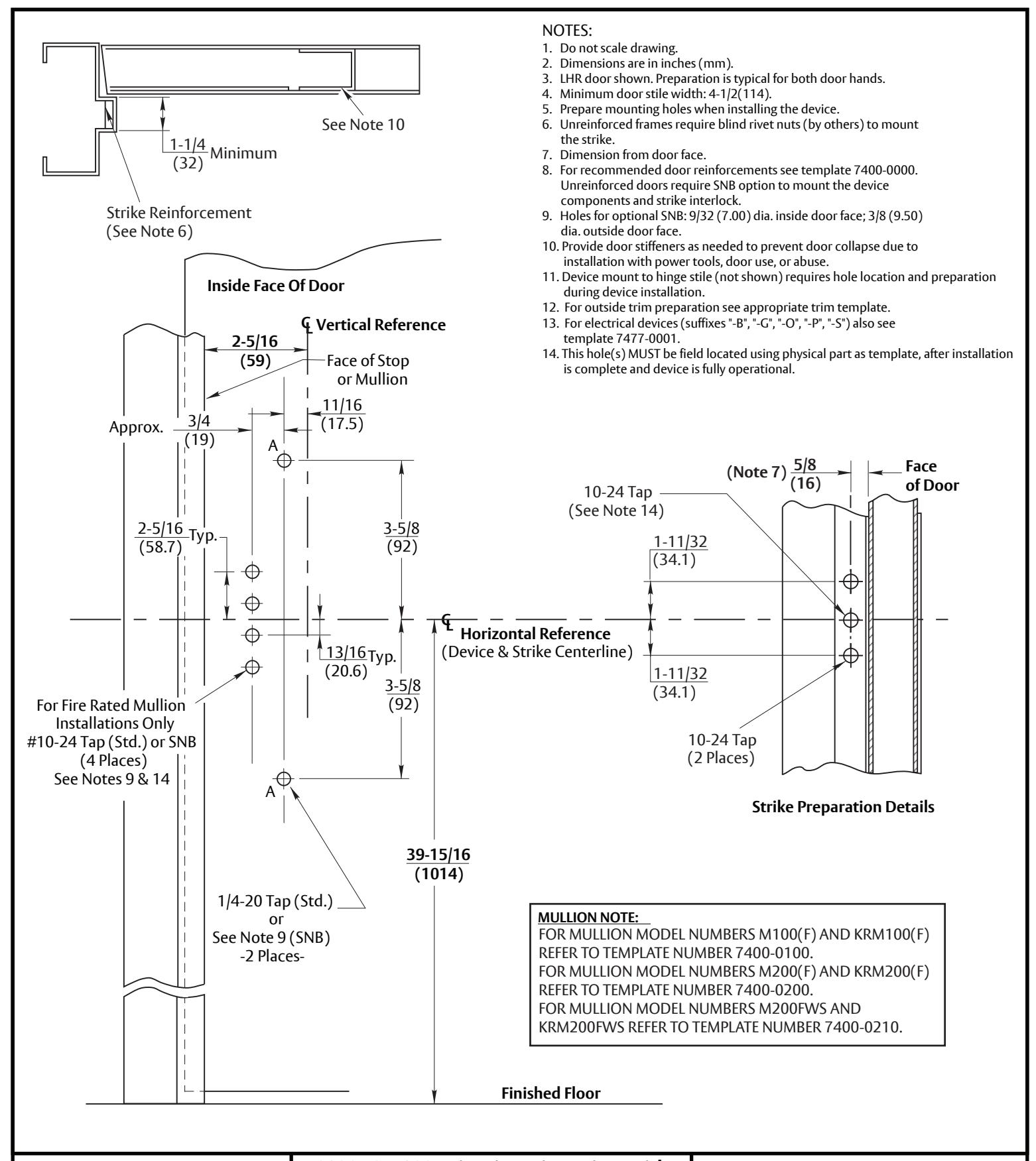

6100F & 7100F Rim Fire Exit Devices with 757F Strike

Application for Fire Labeled Metal Door and Frame or Mullion

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES DO NOT SCALE DRAWING 05/15

01-24

7470-0002 DATE TEMPLATE NUMBER
