ASSA ABLOY ACCENTRA 6100A Emergency Exit Device SS Promo_42951

A-ALR Emergency Exit Option

for 6000 Series Exit Devices

• • Ensures loss prevention: Reduces employee and customer theft
• • Quick & easy installation: Only five screws needed to mount the device to the door
• • Great for retrofit applications: Conceals existing door preps of most other exit devices
• • Strong & reliable: ANSI/BHMA Grade 1 and UL/cUL panic hardware certified

benefits features

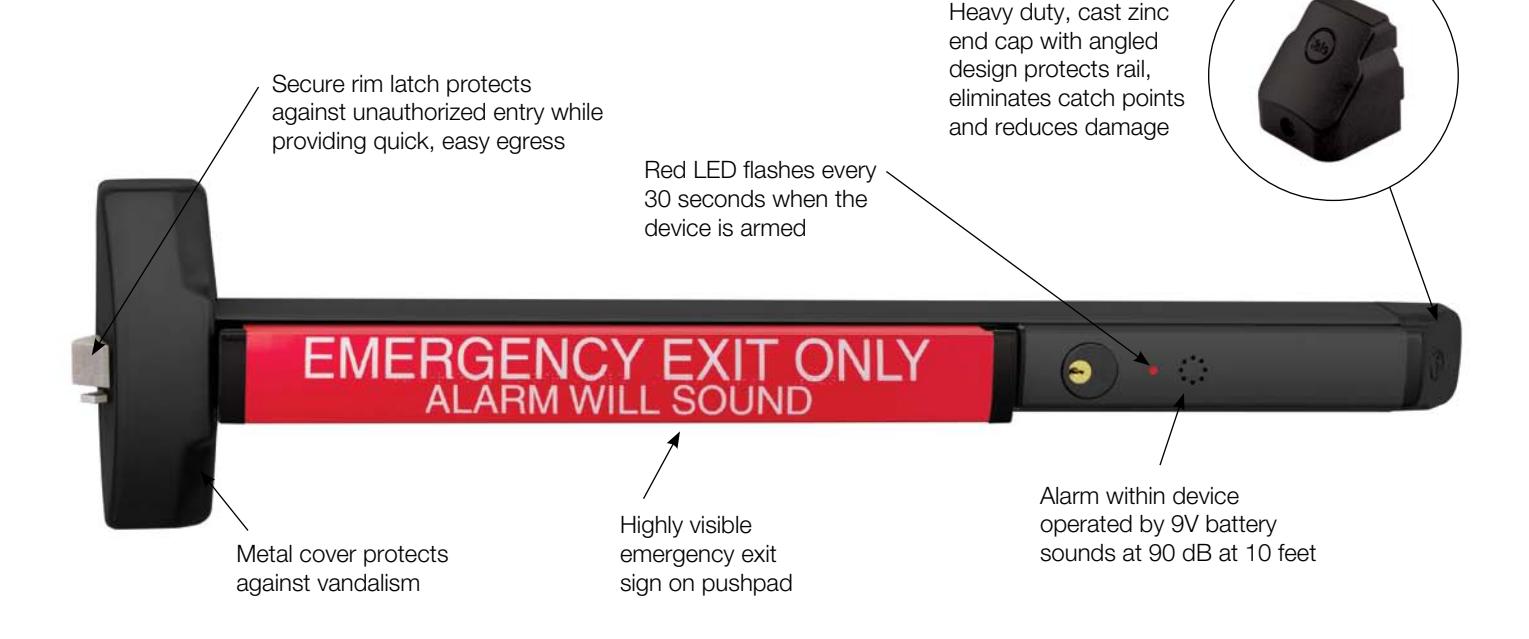

• ANSI/BHMA A156.3 Grade 1 certified

• • Highly durable aluminum rail design
• • Built-in alarm powered by 9V battery sounds at 90 dB at 10 feet
• • Works with a complete range of Yale exit device trim
• • 10 year warranty

other features

• • Alarm Activation: Alarm is armed by turning key clockwise. Low audible chirp indicates alarm has been activated. Alarm will sound when pushpad is depressed. Factory preset for standard alarm mode which automatically resets after 5 minutes.
• • Continuous Alarm Mode: Alarm sounds continuously when the pushpad is depressed. Alarm must be manually reset by keyswitch. (This feature is selected by a switch on the circuit board.)
• • Nuisance Alarm: Factory preset for instant alarm. Selectable feature for alarm to sound when pushpad is depressed for more than 2 seconds.
• • Low Battery Warning: Audible chirp.
• • Arming Delay/Authorized Egress: 10-second delay (after arming) permitting egress (by turning key clockwise).
• • Alarm Shunt: Ingress shunt alarm input for devices with latchbolt position (S) monitor.
• • Power Requirements: One (1) 9V battery (included).
• • Device Status: A red LED indicator will illuminate every 30 seconds when the alarm is armed.
• • Tamper Resistant: Built-in safety monitor sounds alarm when tampering occurs.

Available in 36" length and black painted finish (ANSI/BHMA 622) only.

Contact your local ASSA ABLOY Door Security Solutions team or visit www.yalelocks.com

Copyright © 2018, Yale Security, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

YALE , with its unique global reach and range of products, is the world's favorite lock. ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

42951 – 1/18N
