ASSA ABLOY ACCENTRA 6100, 6105, 7100, 7105 Wide Stile Rim 793 Strike Optional SNB Pair of Wood_7470-1793

Open the original PDF document

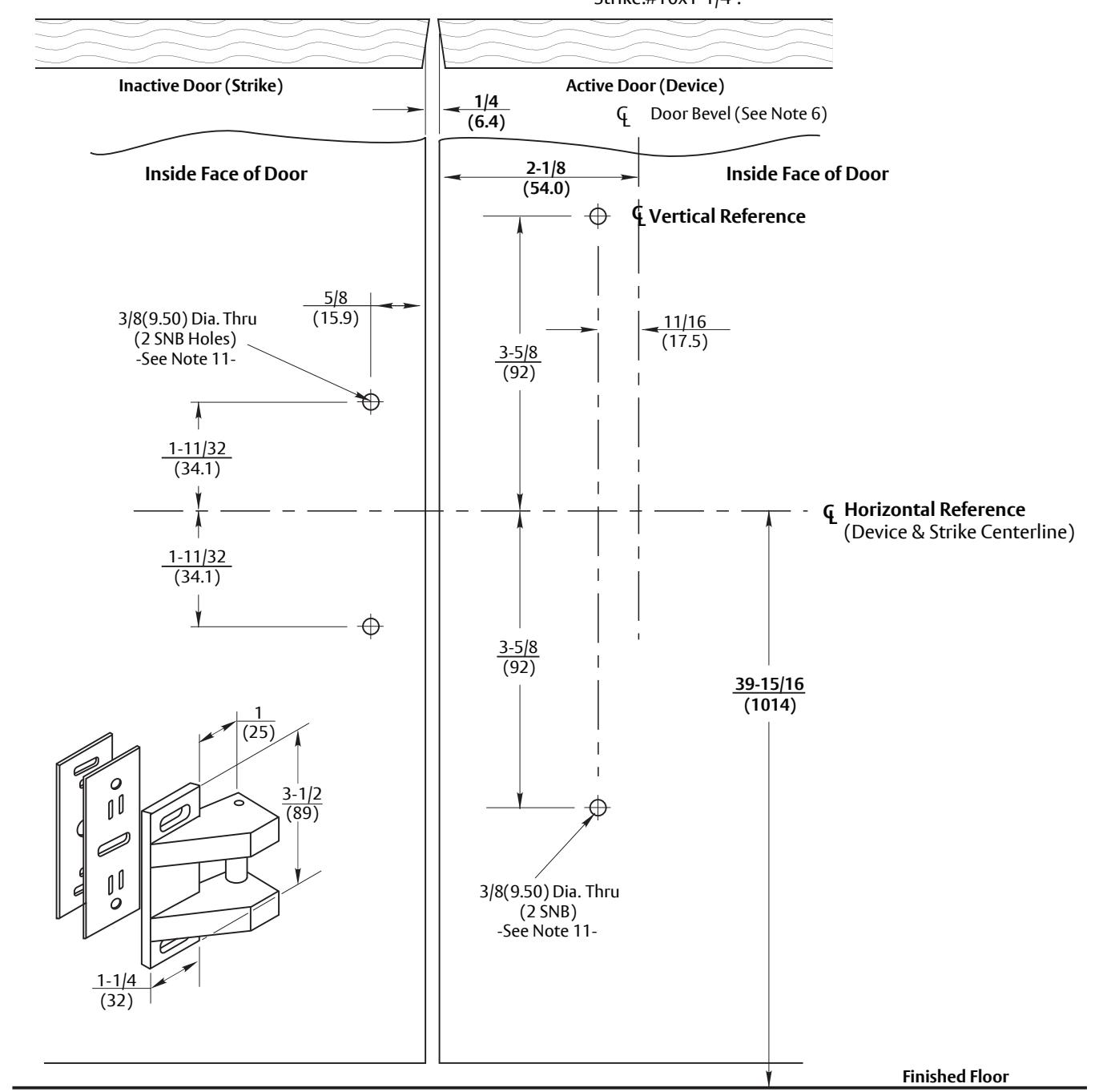

NOTES:

1. Do not scale drawing.
2. Dimensions are in inches(mm).
3. LHR active pair shown. Preparation is typical for both hands.
4. Minimum door stile width: 4-1/2(114).
5. Prepare mounting holes when installing the device.
6. For square door edges, or other center clearance, compensate locating dimensions as required to maintain strike to device distance shown.
7. For trim preparation see appropriate trim template.

8. Provide adequate structural support to maintain door integrity after device installation with power tools, door use, or abuse.
9. Device mount to hinge stile (not shown) requires holes location and preparation during device installation. Door structural requirements are similar for both door stiles.
10. For electrical devices (suffixes "-B","-G","-O","-P","-S") also see template 7477-0001.
11. Wood screws (by others) permitted in solid core wood doors if pilot holes are used for installation. Device:#14x1-1/4"; Strike:#10x1-1/4".

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADFOLIATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST RE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES REGARDLESS OF TYPE MATERIAL, OR METHOD OF CONSTRUCTION.

6100, 6105, 7100 & 7105 Rim Exit Devices Optional 793 Strike and SNB

Application to Pair of Wood or Composite Doors without Mullion (Not for Fire Labeled Devices)

ASSA ABLO

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 7470-1793

01 - 24
