ASSA ABLOY ACCENTRA 6100, 6105, 7100, 7105 Wide Stile Rim 757 Strike Wood or Composite Door and H.M_7470-1000

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

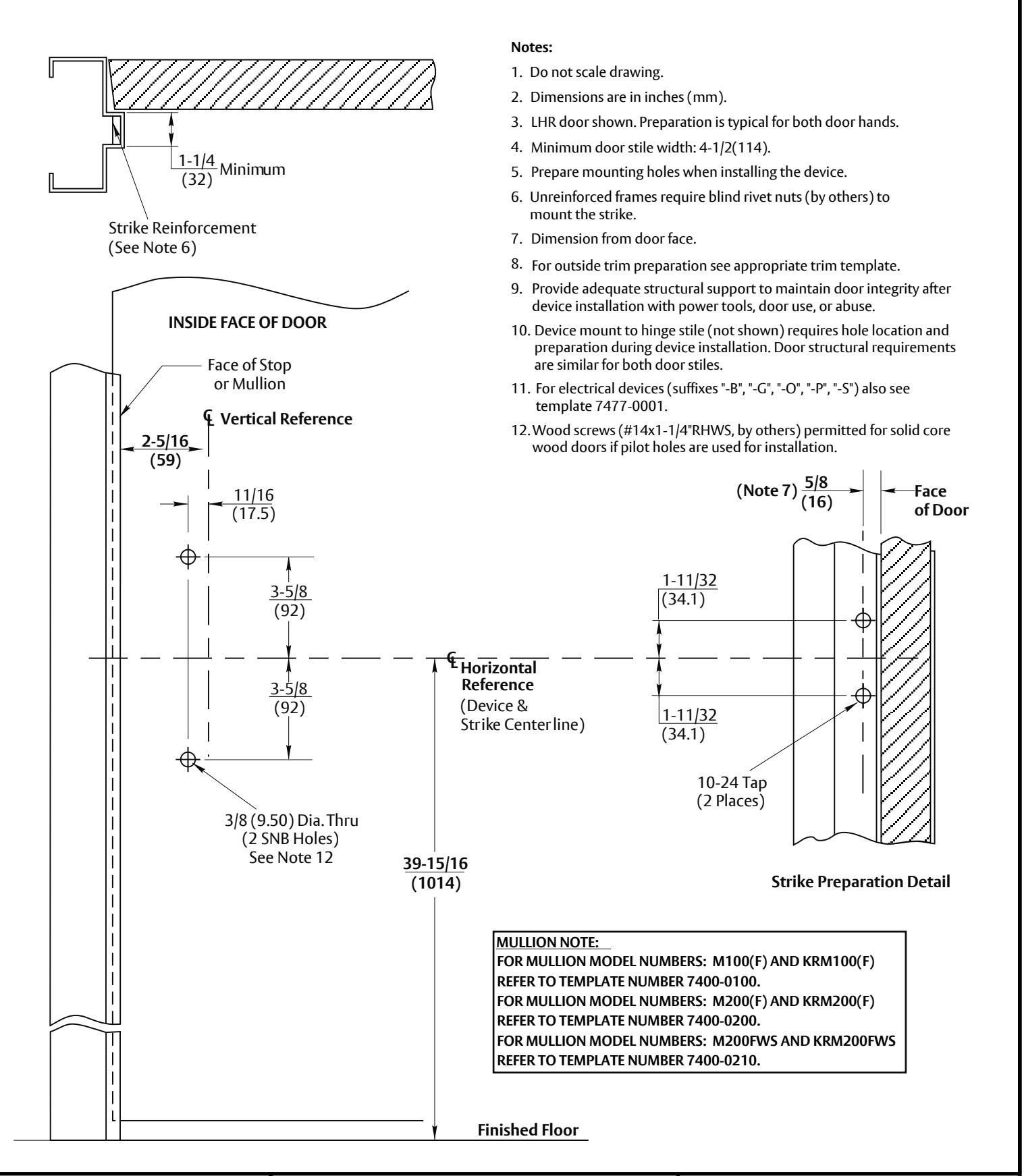

6100, 6105, 7100 & 7105 Rim Panic Devices with 757 Strike

Application for Wood or Composite Door and H.M. Frame or Mullion (Not for Fire Labeled Devices)

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-577-5078.

7470-1000 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 01-24
