ASSA ABLOY ACCENTRA 6100, 6105, 7100, 7105 Wide Stile Rim 757 Strike Metal Door and Frame or Mullion_7470-0000

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION

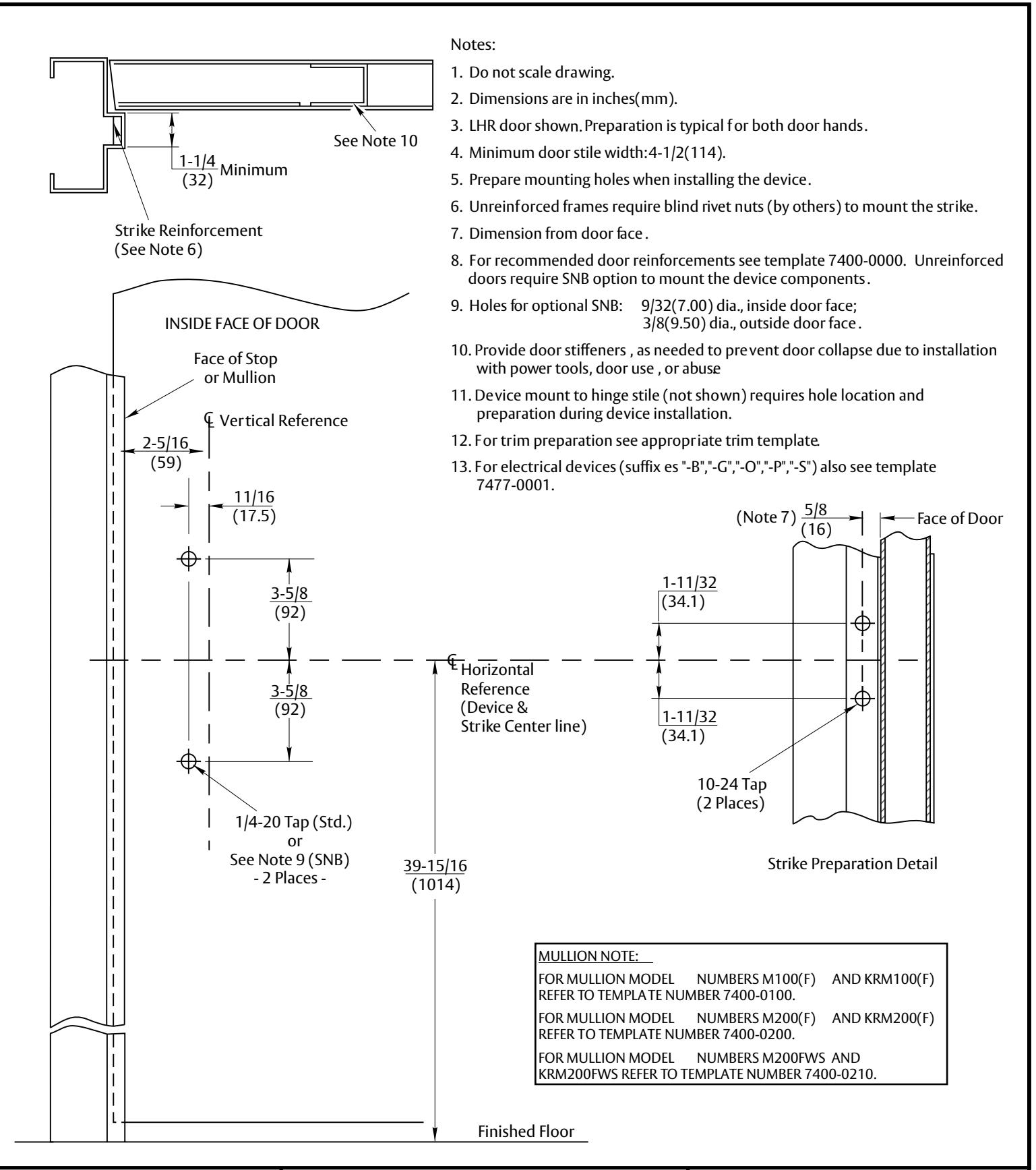

6100, 6105, 7100 & 7105 Rim Panic Devices with 757 Strike

Application for Metal Door and Frame or Mullion (Not for Fire Labeled Devices)

ASSA ABLOY

SUPERSEDES 7470-0000 05-15 DO NOT SCALE DRAWING

10 - 23

7470-0000
