ASSA ABLOY ACCENTRA 603F, 622F and 626F Trim for 1500(F), 2100(F), 6100ED(F), and 7100(F) Series_7400-0622

Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2006, 2015, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

Notes:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing trim.
• Provide adequate internal support to prevent door deformation after trim is bolted to the device.
• 8. Dimensions given about a centerline are symmetrical.
• 9. Unspecified radii 1/8 (3) maximum.

Note: Lever and knob prefix does not affect door prep.

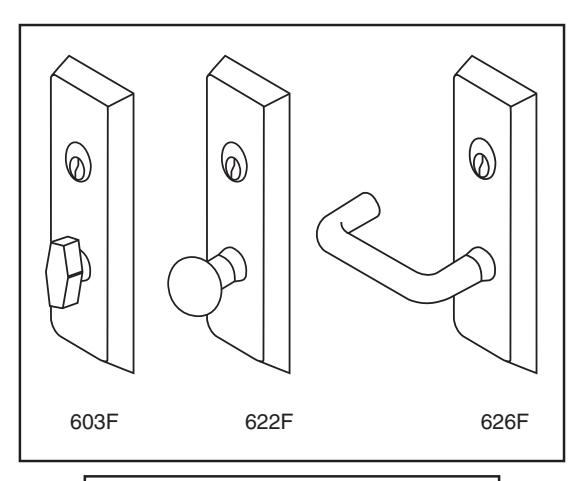

603F, 622F and 626F Trim

With 1500(F), 2100(F), 6100(F) or 7100(F) Series Rim and Vertical Rod Exit Devices

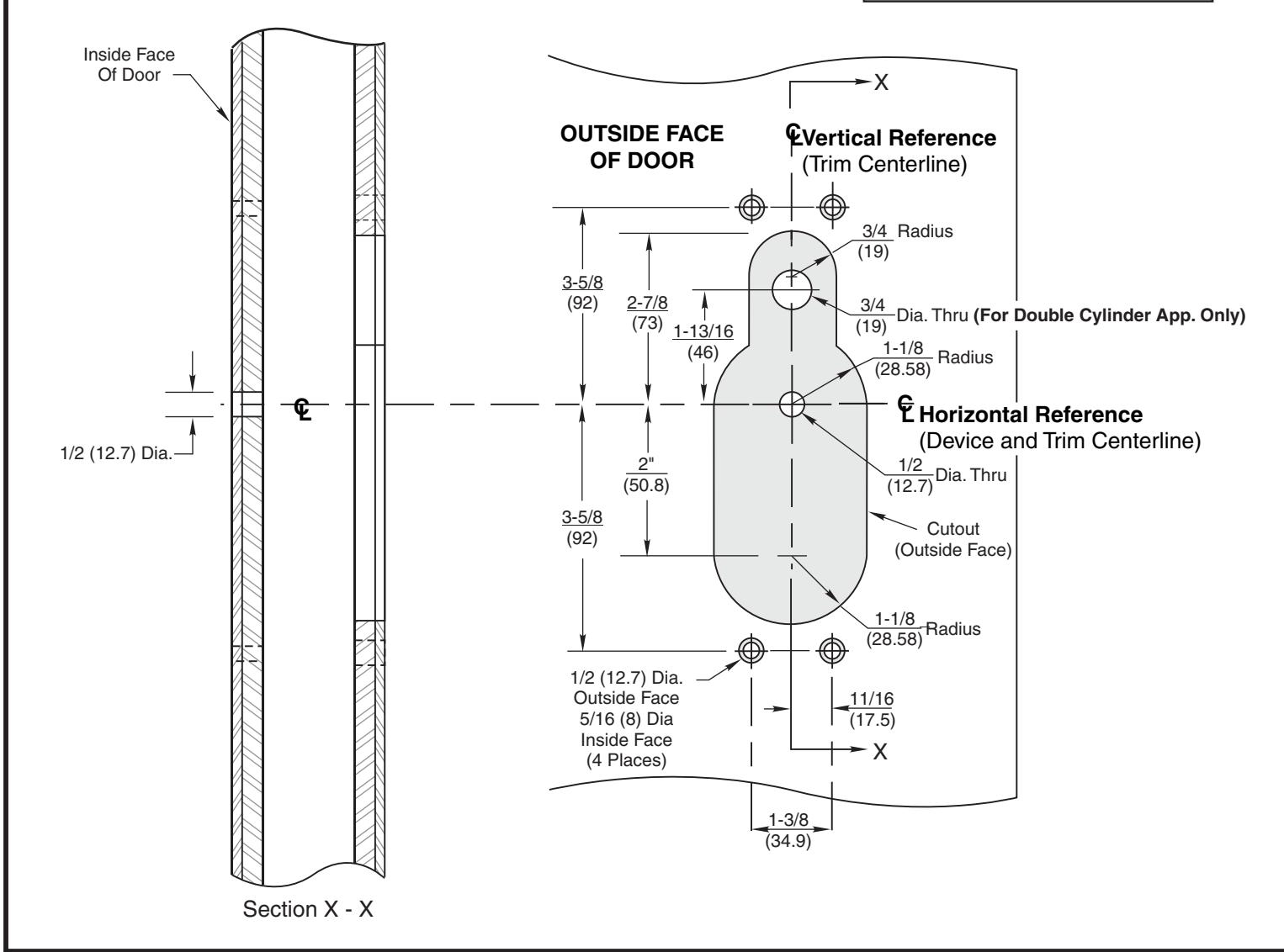

Metal Door Preparation

1-800-438-1951 www.yalelocks.com

TEMPI ATE NUMBER

DATE

7400-0622

05-15
