ASSA ABLOY ACCENTRA 6000 and 7000 Series 620DB and 720DB Dummy Push Bar Wood or Composite Door_7470-1720

Open the original PDF document

NOTES:

1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. Minimum Stile Width: 2 (51).
4. Maximum door Width: 42 (1067)
5. Prepare mounting holes when installing the hardware.
6. Provide adequate door support to maintain door integrity after bar installation with power tools, door use, or abuse.
7. Wood screws (by others) permitted for solid core wood doors if pilot holes are used for installation and door label allows its use.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADFOLIATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST RE INSTALLED ON PROPERTY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE. MATERIAL, OR METHOD OF CONSTRUCTION.

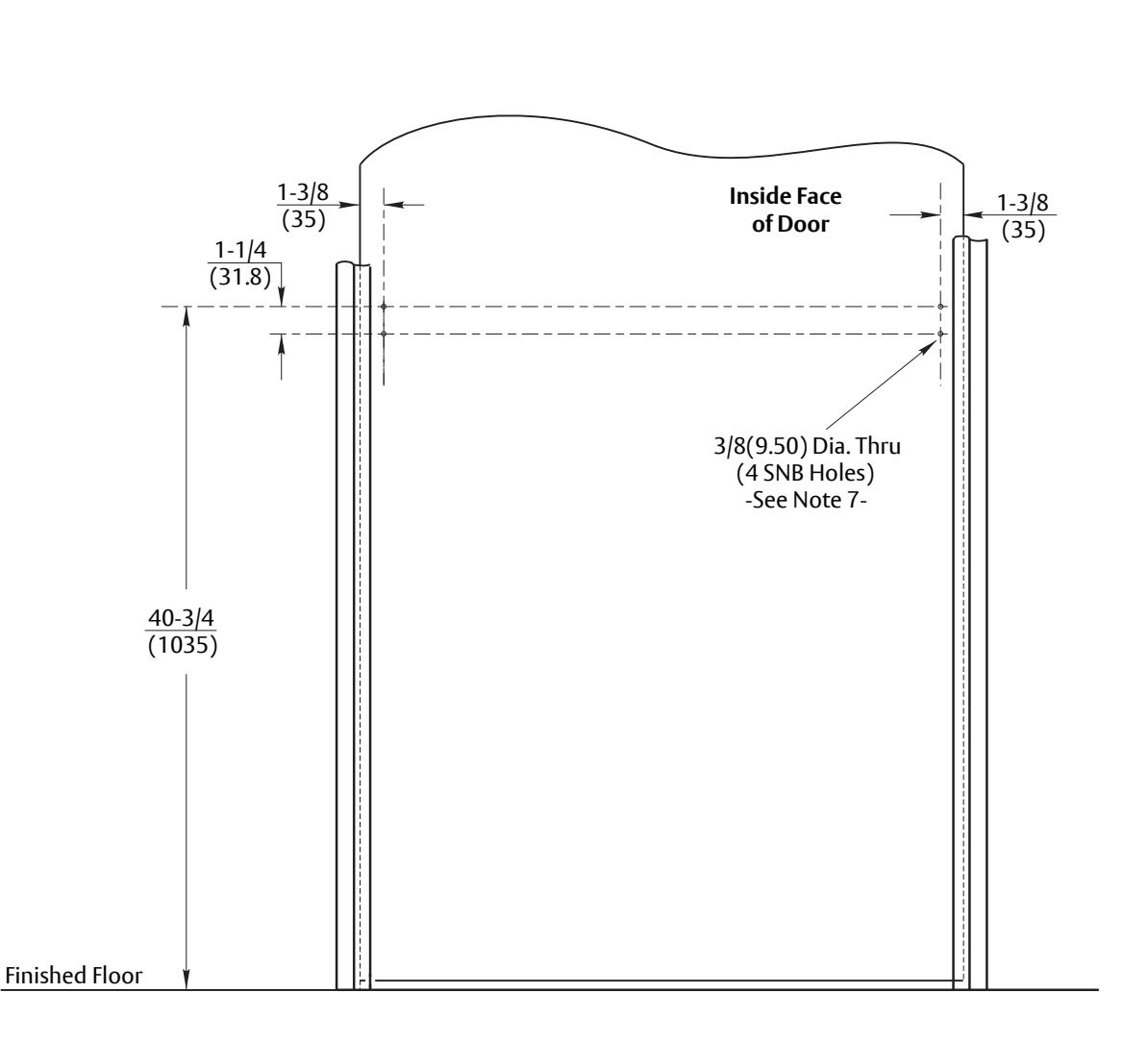

620DB & 720DB Dummy Push Bar

Application for Wood or Composite Door

ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING 05/15 TEMPLATE NUMBER 7470-1720

03/24
