ASSA ABLOY ACCENTRA 6000 and 7000 Series 620DB and 720DB Dummy Push Bar Metal Door Template_7470-0720

Open the original PDF document

Notes:

1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. Minimum Stile Width: 2 (51).
4. Maximum door Width: 42 (1067)
5. Prepare mounting holes when installing the hardware.
6. For recommended door reinforcements see template 7400-0000. Unreinforced doors require SNB option to mount the hardware
7. Holes for optional SNB:9/32 (7.00) Dia.Inside door face; 3/8 (9.50) Dia. Outside door face.
8. Provide door stiffeners as needed to prevent door collapse due to installation with power tools, door use, or abuse.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADFOLIATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST RE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE. MATERIAL, OR METHOD OF CONSTRUCTION

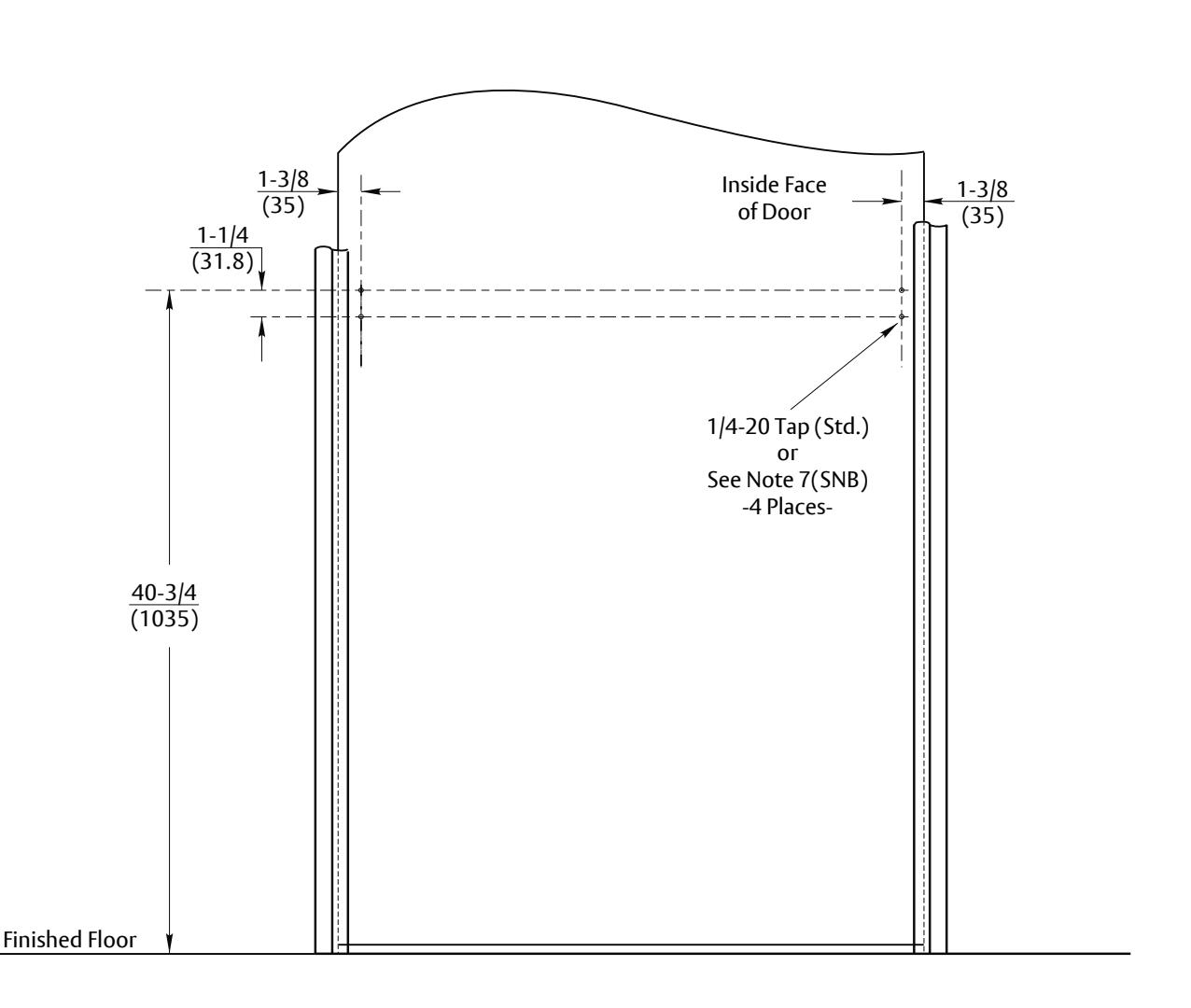

620DB & 720DB Dummy Push Bar Application for Metal Door

ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING

TEMPLATE NUMBER 7470-0720 01-24
