ASSA ABLOY ACCENTRA 6000 Series MELR Sell Sheet_4200-0312

Open the original PDF document

View PDF

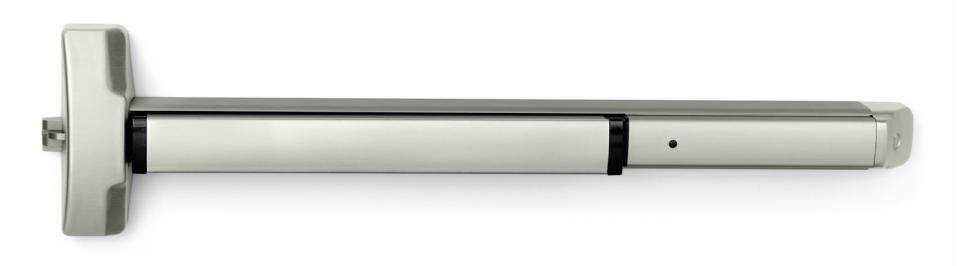

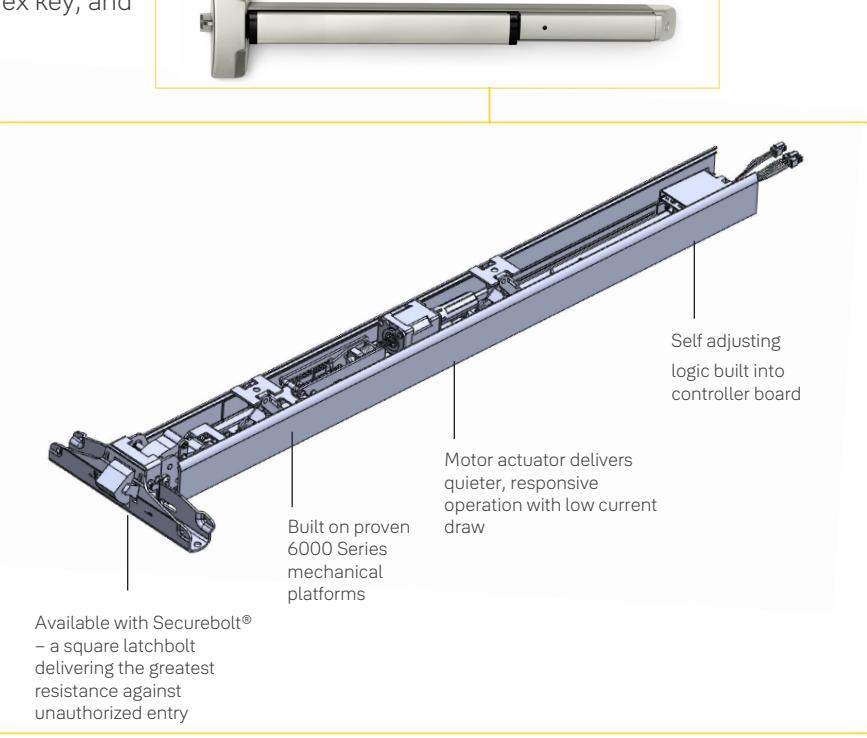

Motorized Electric Latch Retraction Option for 6000 Series Exit Device

The Motorized Electric Latch Retraction (MELR) provides remote-controlled latch retraction that delivers a quieter and smooth operation for convenient, hassle-free egress. The 6000 Series Exit Device can easily be installed in new applications or upgrade applications. The MELR features a maintenance-free design with few moving parts using 86% less power consumption during retraction than solenoid devices.

Plus, MELR is powered by a standard power supply, simplifying installation, and increasing system design flexibility.

Features

  • Continuous or intermittent use
  • Digital timer (0-20 seconds) no costly external timer required
  • Diagnostic LED to ease field service
  • Available for 34" 48" doors
  • .85A during retraction and .3A maintained in hold position
  • 24 VDC 1 amp regulated/filtered power supply required
  • UL/cUL listed for panic and fire exit hardware
  • Compatible with many options: latchbolt position monitor, touch bar monitor, trim monitor, hex key, and cylinder dogging
  • Utilizes BPS Power Supply by Securitron listed as UL Class 2 circuit
  • 10 year Warranty and 2 year limited warranty on electronical components.

Applications

  • Offices
  • Convention Halls
  • Schools
  • Healthcare Facilities
  • Theaters
  • Libraries

Benefits

  • Responsive, quieter retraction perfect for any environment that demands consistent performance
  • Hands free operation for convenient egress
  • Self-adjusting retraction reduces installation time and improves performance
  • Low current draw
  • Uses standard electric hinge special power transfer device NOT required

Contact your local ASSA ABLOY Door Security Solutions team or visit yalecommercial.com

Yale Locks & Hardware • 225 Episcopal Road, Berlin, CT 06037-4004 Tel: 1-800-438-1951 • Fax: 1-800-338-0965 • yalecommercial.com

Yale Commercial is a business associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Part of ASSA ABLOY 4200-0312 – 02/24
