ASSA ABLOY ACCENTRA 563F & 565F Series Trim (Discontinued) Installation Instructions_80-8470-0563-000

Installation Instructions

OUTSIDE FACE

VERTICAL

REFERENCE

• 1. Assemble trim. See other side for components and instructions

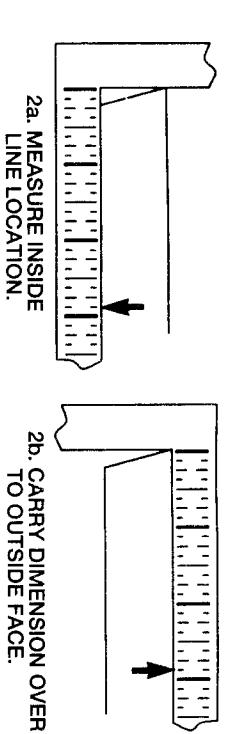

• 2. After marking door inside face for device location (Device Instructions), carry "Vertical Reference Centerline" from inside door face. Follow steps 2a. and 2b. below.

• 3. Carry "Horizontal Reference Centerline" from inside to outside door face

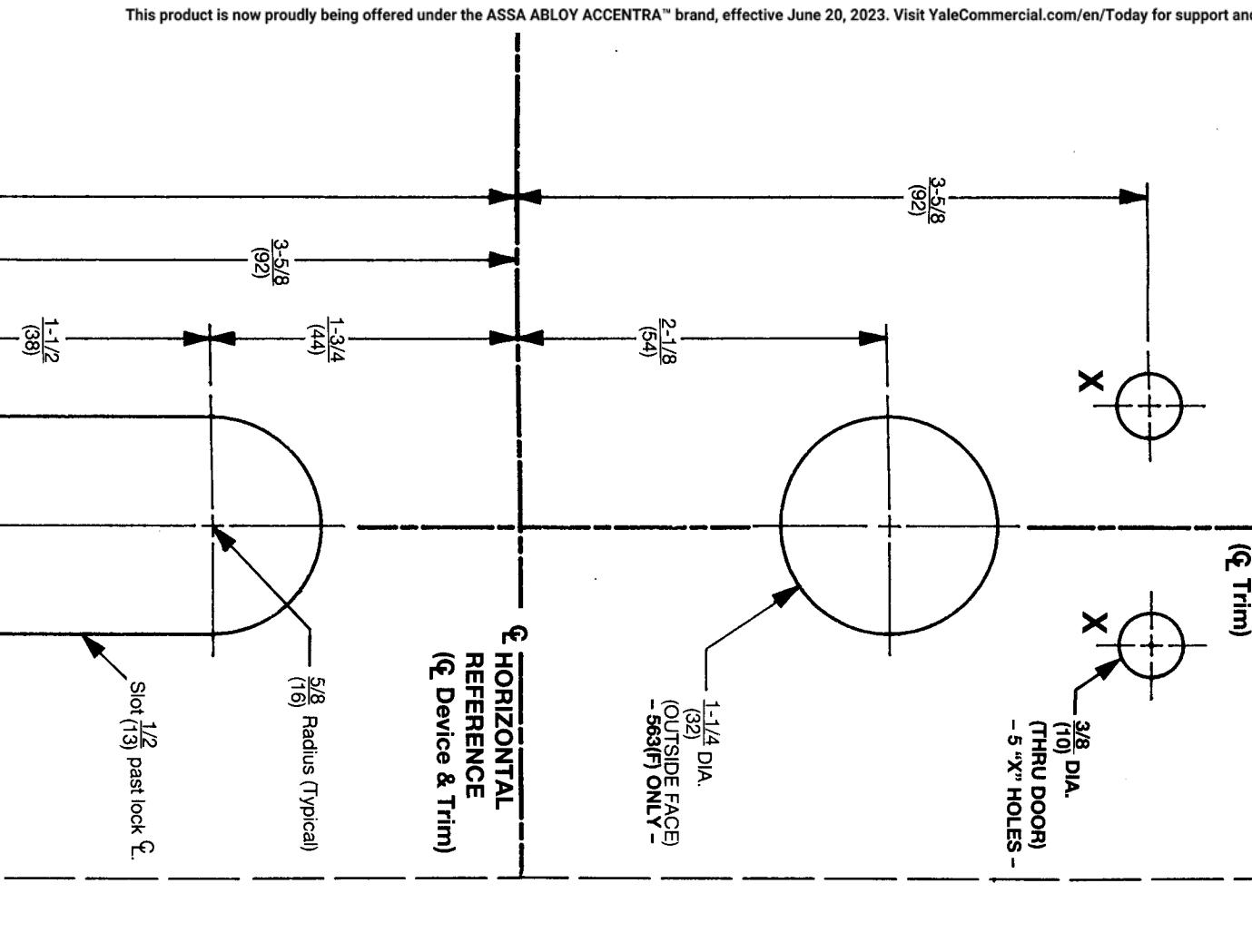

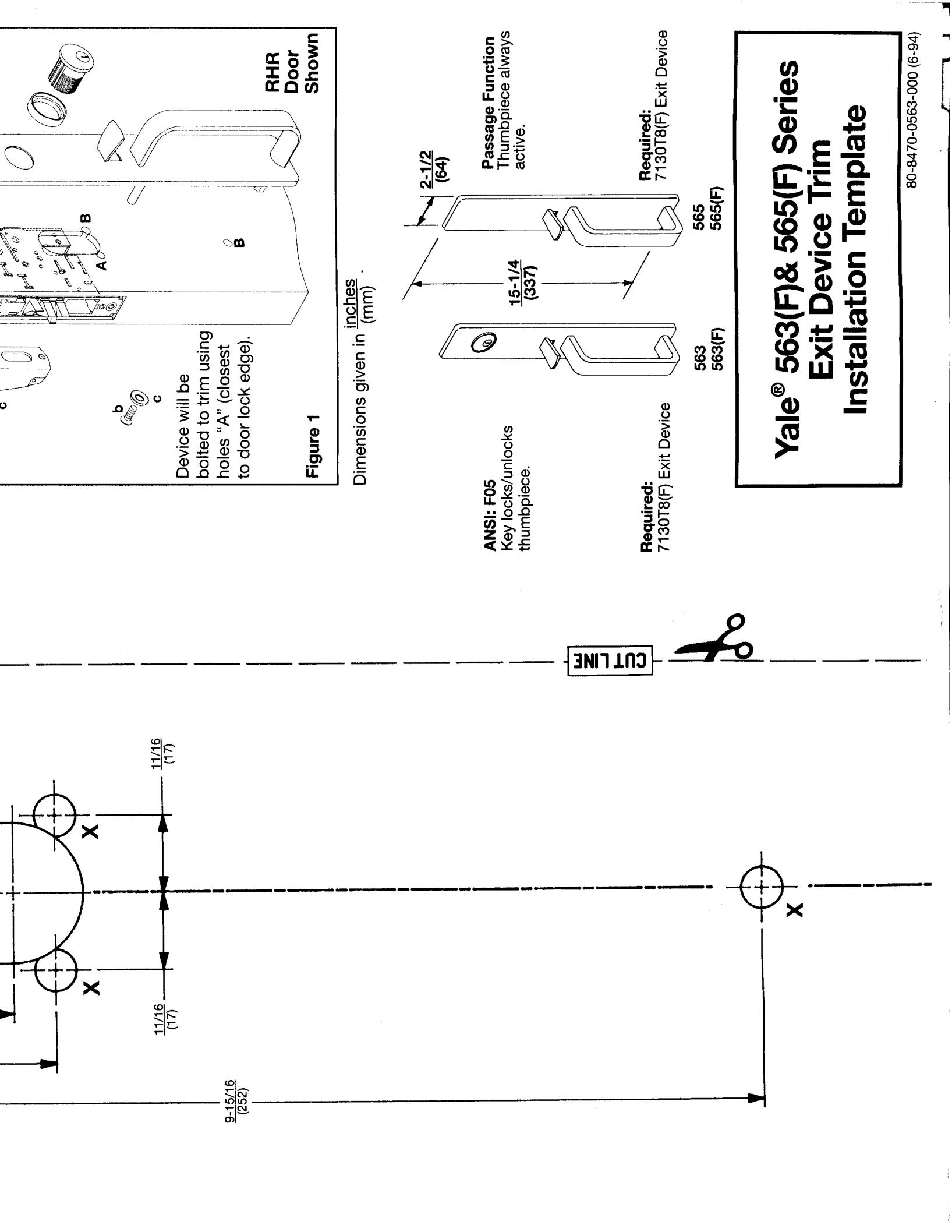

• Align trim template and tape to door outside face CAUTION: Office copiers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template the door (do not use the template as a door marker). packed with the trim, use only the dimensions written on the template to locate the holes on
• 5. Spot holes and prepare door for trim

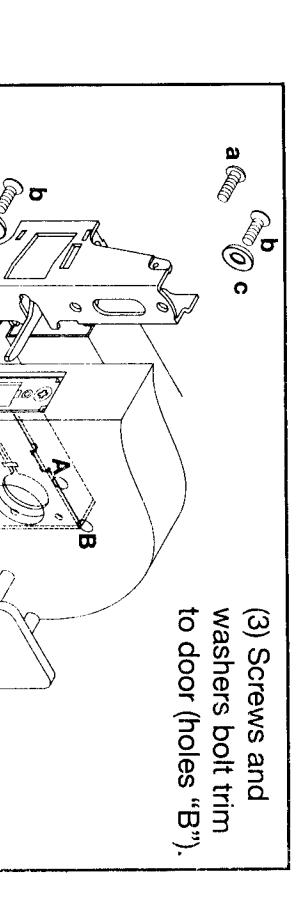

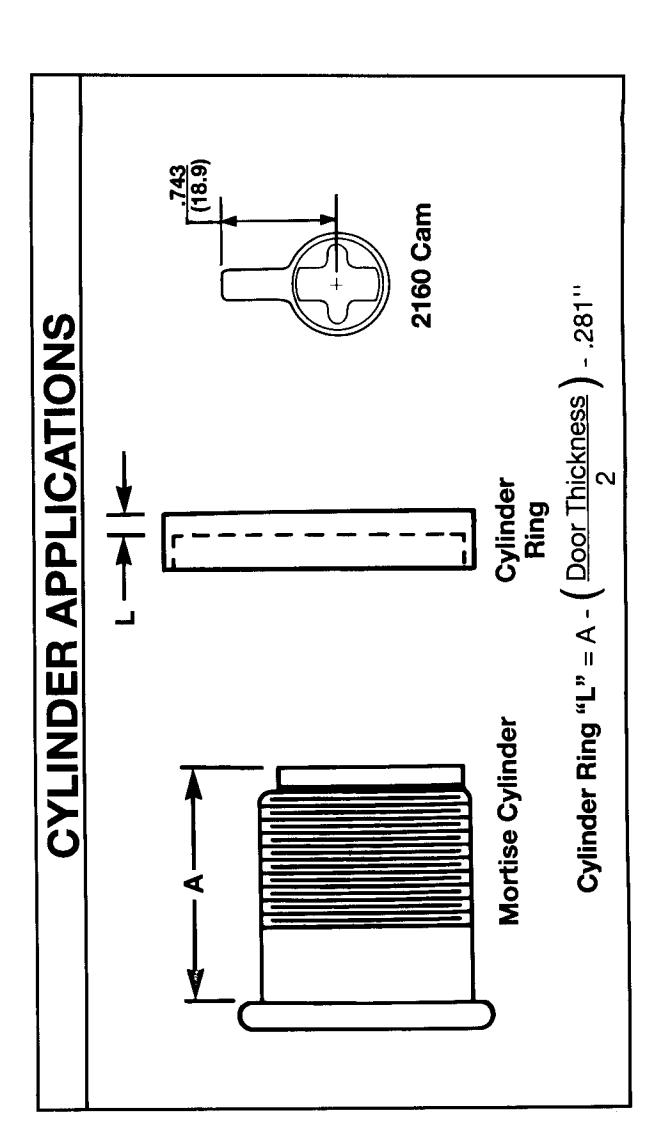

• 6. Mount trim to door (Fig. 1). Fasten finger tight only with 3 screws (b) and seated in cylinder ring recess and keyway is positioned as shown. Lock washers (c), seated on door. For 563(F) only, thread cylinder into lock till cylinder in place (cylinder set screw accessible thru lock front).
• Continue as shown in device instructions

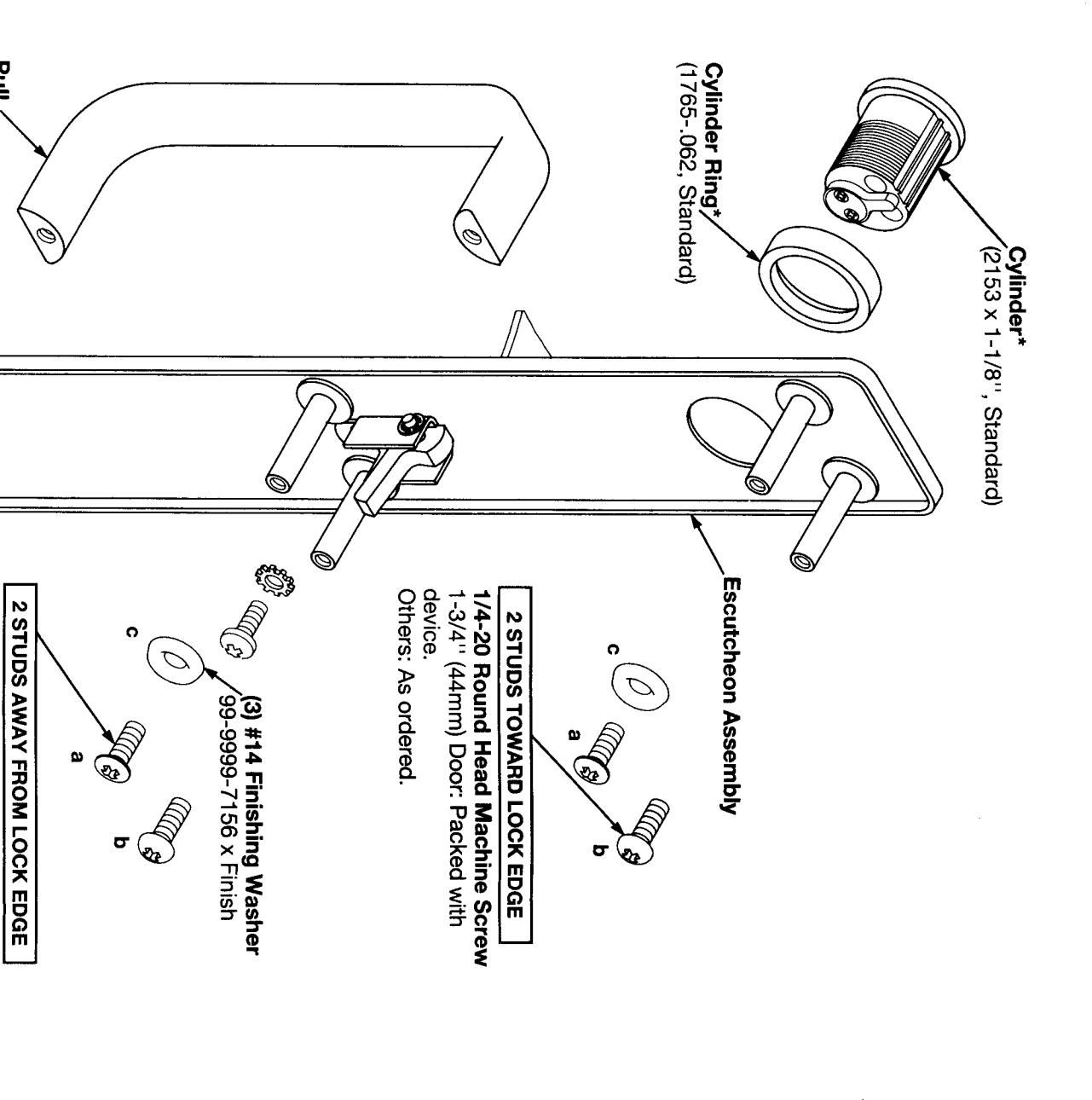

563(F) & 565(F) TRIM COMPONENTS For Mortise Exit Devices Using 38T(F) Mortise Locks.

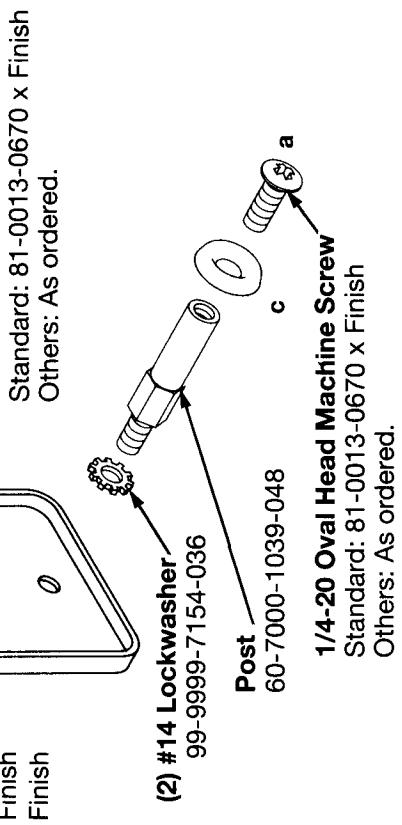

Assemble components as shown.

NOTE: Parts marked (*) are for 563(F) only.
