ASSA ABLOY ACCENTRA 554F and 558F Trim for 7130(F) Narrow Stile Mortise Wood or Composite Doors_7400-1558

NOTES:

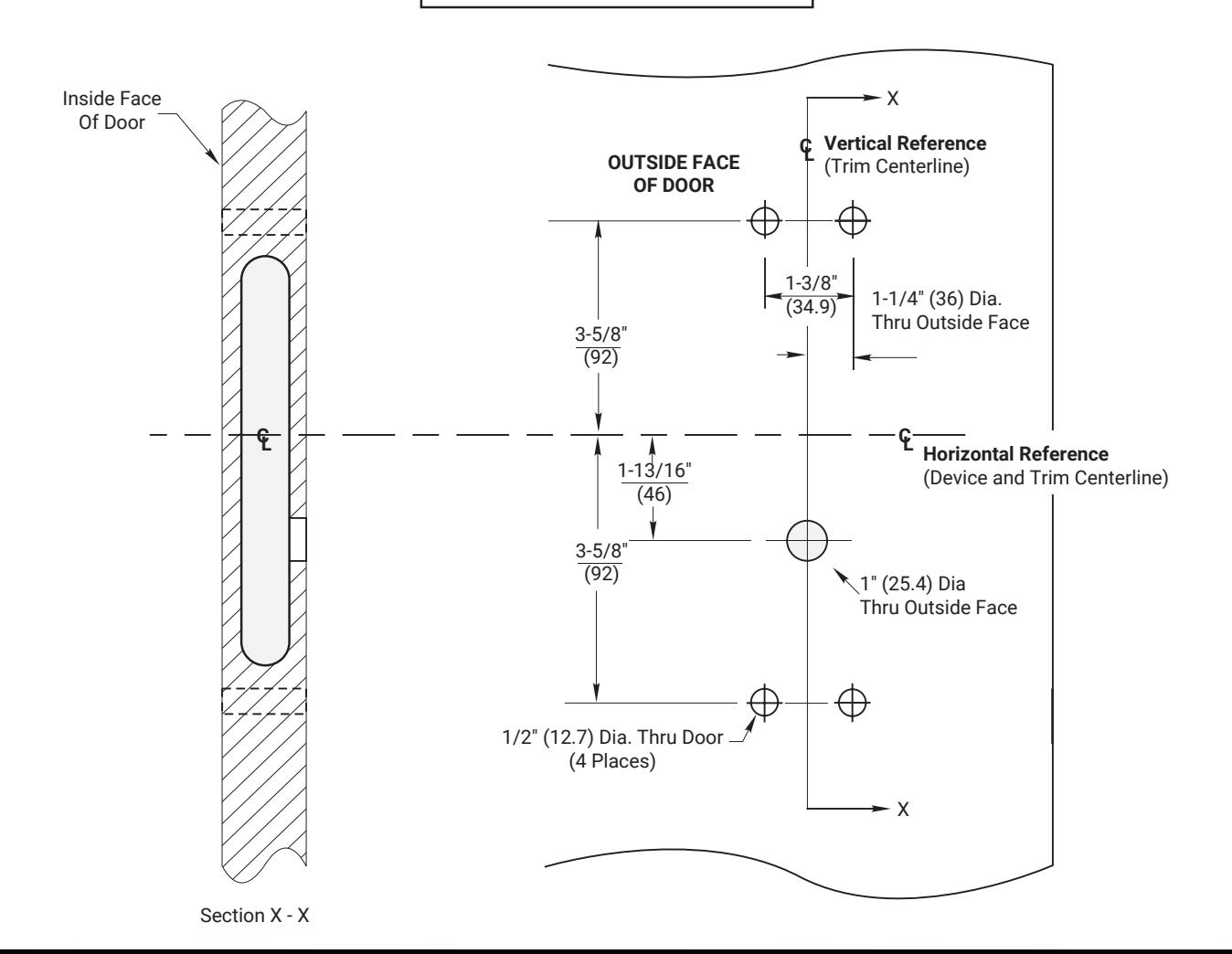

• 1. This template is an addition to the device template.Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Shaded area represents mortise lock cavity from device template.
• 6. Prepare mounting holes when installing trim.
• 7. Provide adequate structural support to maintain door integrity during operation.

CAUTION If printed from website Print 1:1 Scale Measure both 3" lines to check scale

3"

3"

NOTE: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

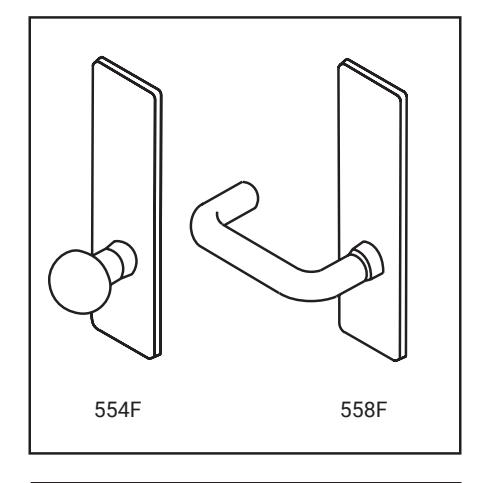

554F and 558F Trim With 7130 (F) Series Mortise Exit Devices

Wood or Composite Door Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

ACCENTRA

ASSA ABLOY

Experience a safer and more open world

Copyright © 2006, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES 7400-1558 (09-06)

DO NOT SCALE DRAWING

TEMPLATE NUMBER 7400-1558

1 of 1

04 - 24
