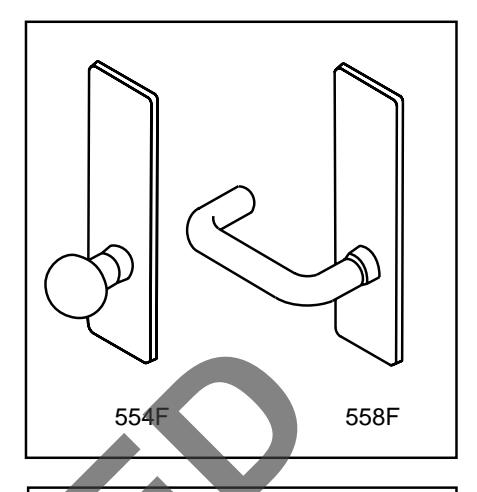

ASSA ABLOY ACCENTRA 554F and 558F Trim for 7130(F) Narrow Stile Mortise Metal Doors Template_7400-0558

Printed in U.S.A. 7400-0558

Notes:

• This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing trim.
• Provide adequate internal support to prevent door deformation after trim is bolted to the device.

NOTE: Lever and knob prefix does not affect door prep.

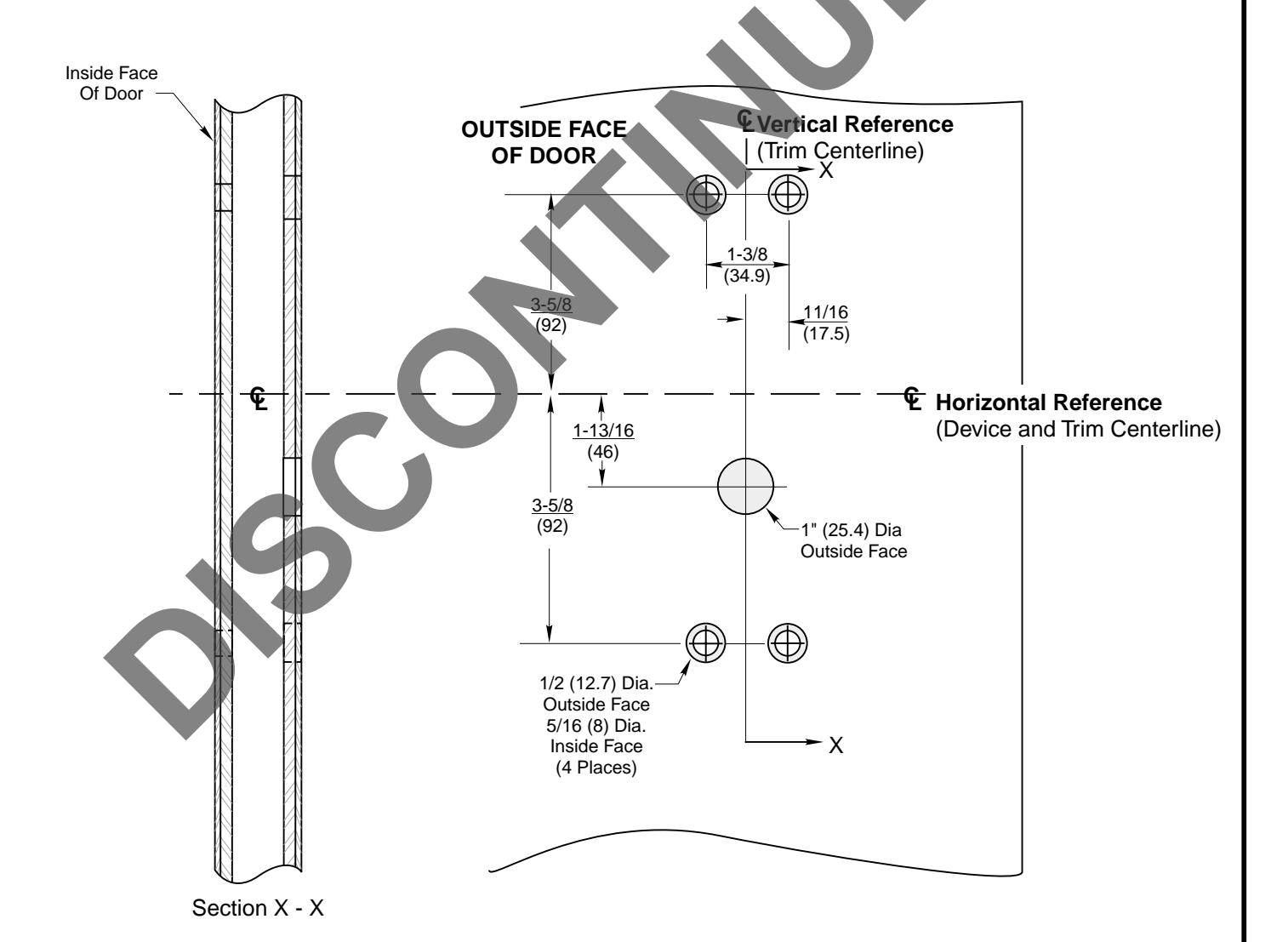

554F and 558F Trim With 7130(F) Series Mortise Exit Devices Metal Door Preparation

Yale ^®

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER

7400-0558

09-06
