ASSA ABLOY ACCENTRA 552F and 556F Trim for 7130(F) Narrow Stile Mortise Metal Doors Template_7400-0556

Open the original PDF document

View PDF

Printed in U.S.A. 7400-0556

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template 7400-0000.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

NOTE: Lever and knob prefix does not affect door prep.

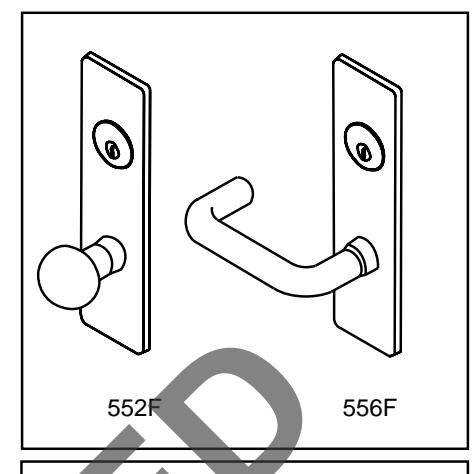

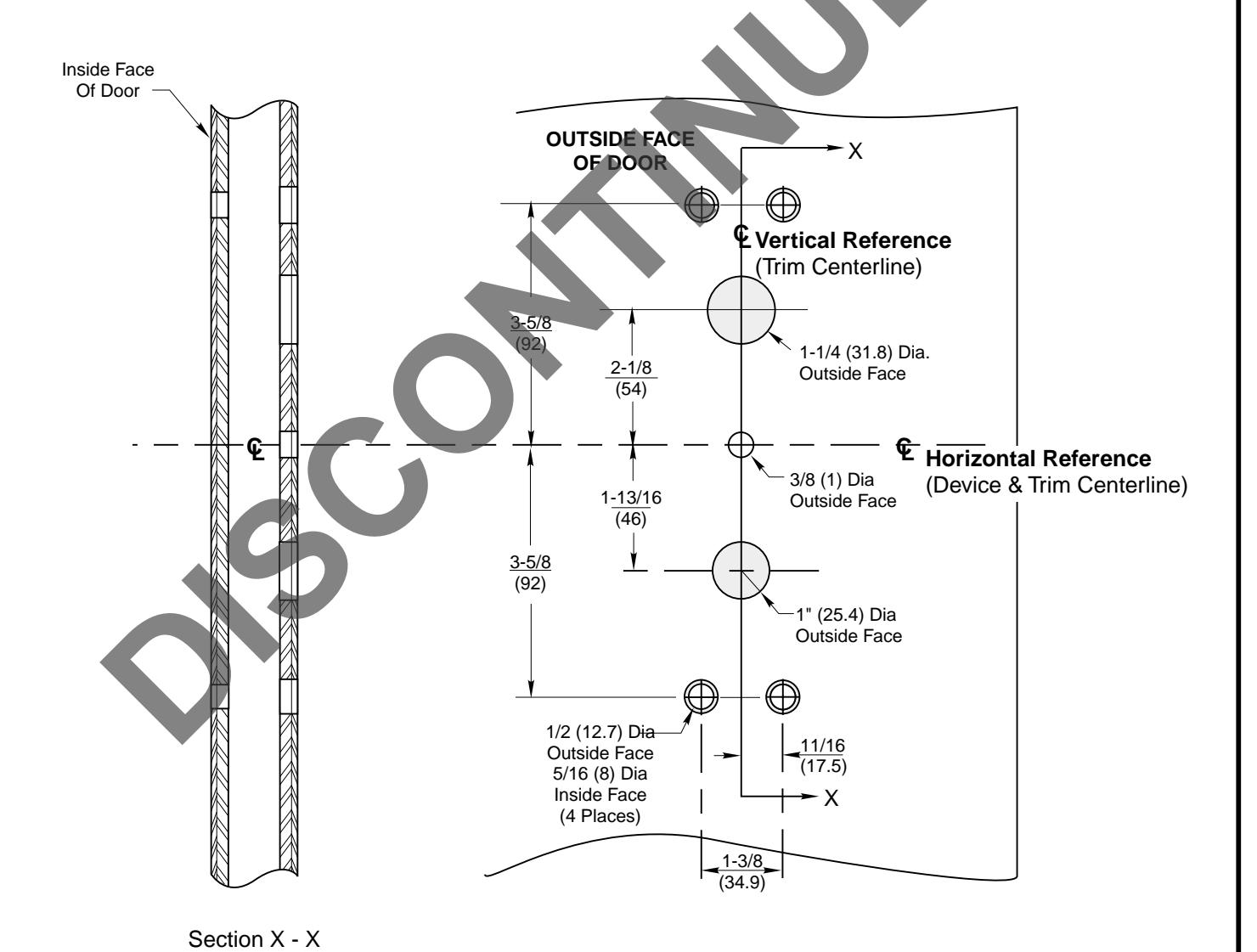

552F and 556F Trim With 7130(F) Series Mortise Exit Devices Metal Door Preparation
