Printed in U.S.A. 7400-0551

Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template 7400-0000.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation from bolting trim to the device.

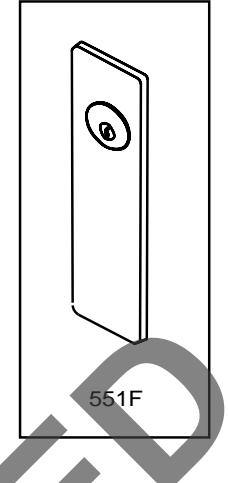

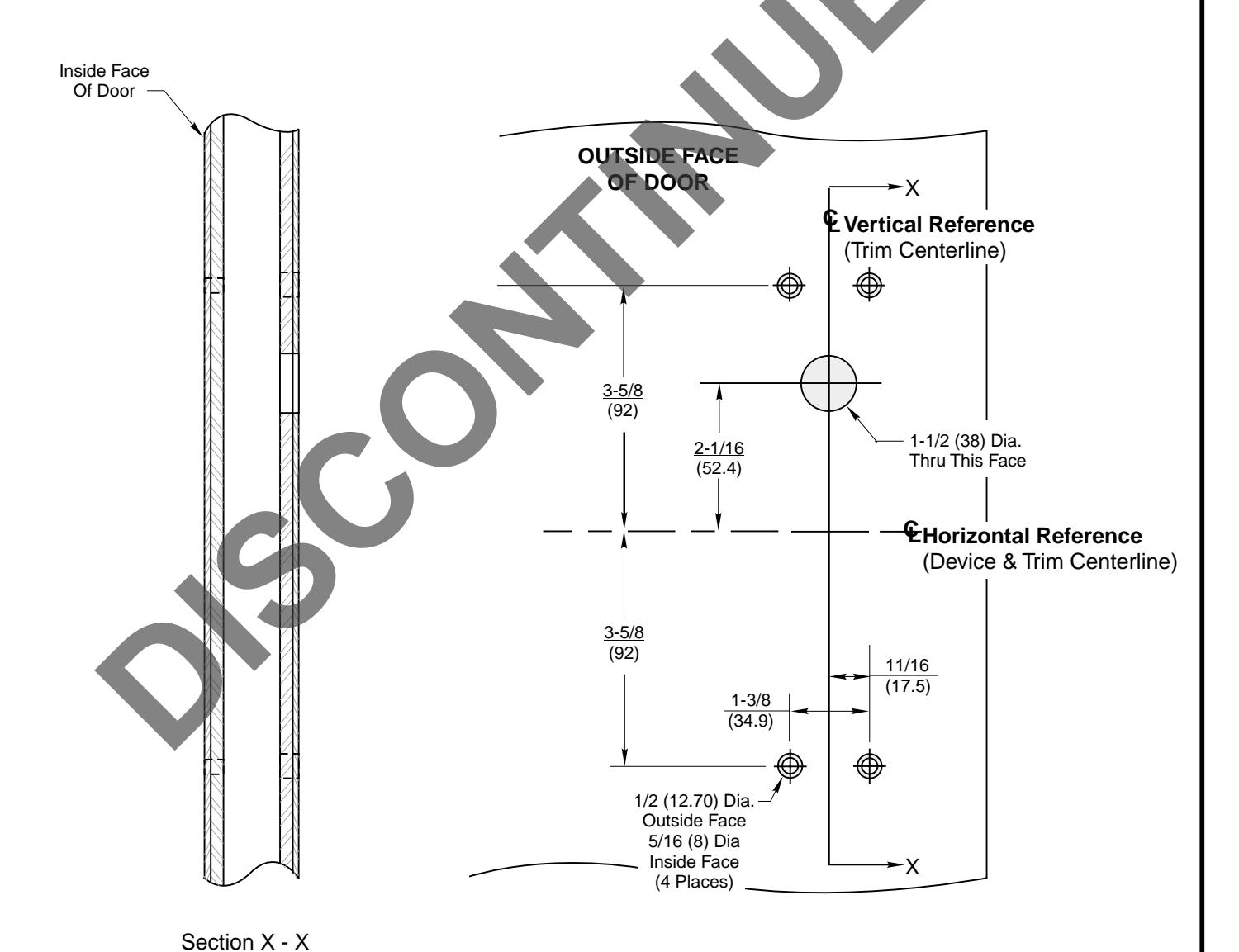

551F Trim Wiith 1530(F) or 7130(F) Series Mortise Exit Devices Metal Door Preparation

Yale <sup>®</sup>

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER __

7400-0551

9-06
