ASSA ABLOY ACCENTRA 541F, 546F, 548F and 549F Trim for 2100(F), 6100ED(F), and 7100(F) Series Narrow_7400-1541

NOTES :

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Prepare mounting holes when installing trim.
• 6. Provide adequate structural support to maintain door integrity during operation.
• 7. With rim and surface vertical rod exit devices, stock doors with ANSI A115.W2 cutout may be substituted (specifier's option). These doors require a filler plate for the door edge cutout (by others).
• 8. Dimensions given about a centerline are symmetrical.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

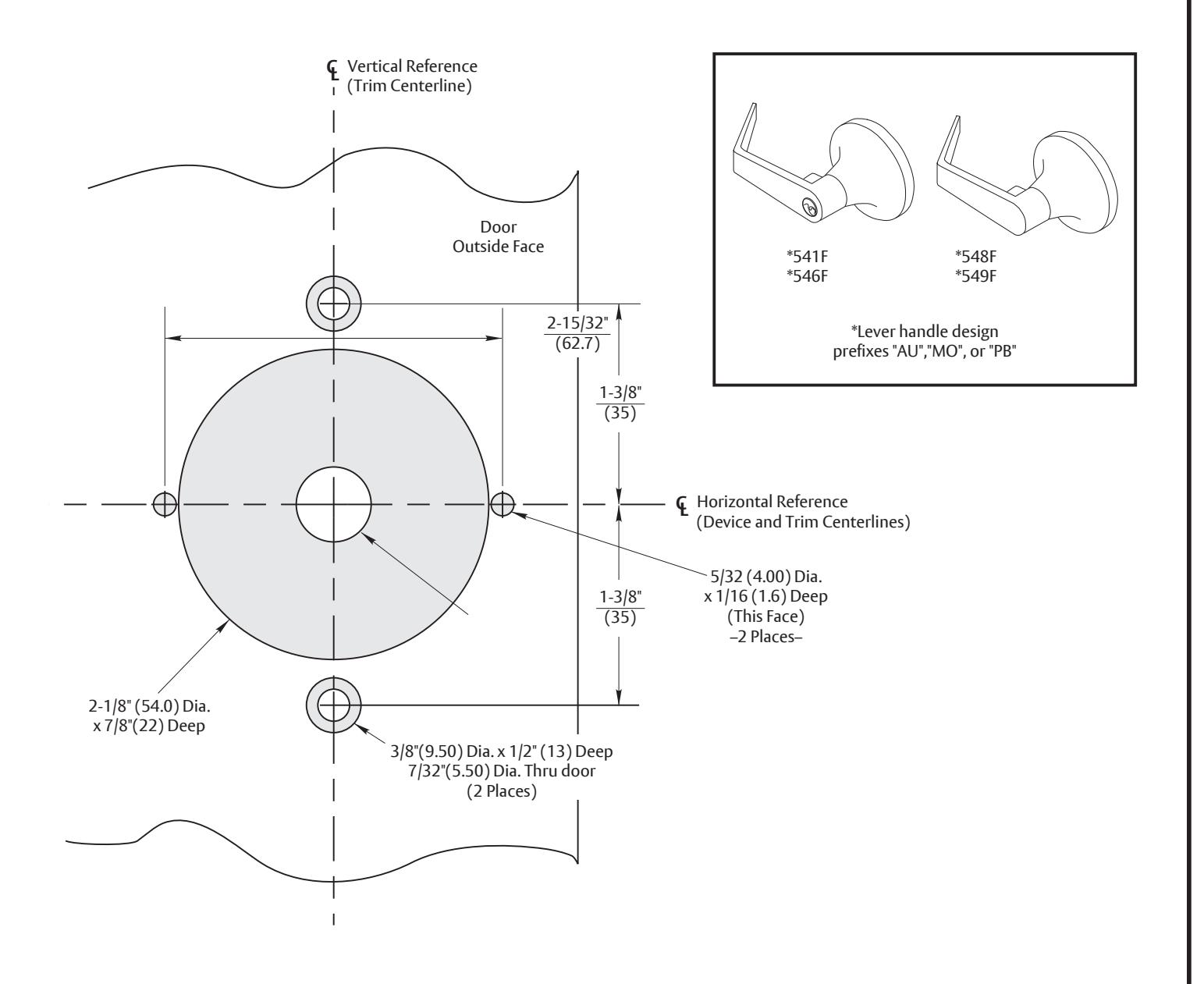

541F, 546F, 549F and 548F Series Trim With 2100(F), 6100(F), or 7100 (F) Series

Rim and Vertical Rod Exit Devices Wood Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-800-438-1951.

SUPERSEDES DO NOT SCALE DRAWING 7400-1541 (05-15)

TEMPLATE NUMBER

7400-1541 DATE

12-23
