5400LN SERIES
Key-In Lever Cylindrical Locks |
||||
|---|---|---|---|---|
| Backset | 1/2" Throw | 3/4" Throw | ||
| Latch No. | Link No. | Latch No. | Link No. | |
|
2-3/4
(70) |
693 or 694 | - | 480B | - |
|
3-3/4
(95) |
3693 or
3694 |
- | 3480B | - |
|
5
(127) |
693 or 694 | 481DL | 480B | 481DL |
|
6
(152) |
3693 or
3694 |
481 | 3480B | 481 |
|
7
(178) |
693 or 694 | 482 | 480B | 482 |
|
8
(203) |
3693 or
3694 |
482 | 3480B | 482 |
|
18
(457) |
693 or 694 | 484 | 480B | 484 |
|
19
(483) |
3693 or
3694 |
484 | 3480B | 484 |
Notes:
-
1. For strike preparation refer to:
- 497 Strike Template No. 7102-0003
- 2. The 5400LN locks can be installed on 1-3/8" (35mm) thick doors by using two (2) #14-5401-6644 spacers under the inside and outside roses.
- 3. For HM door preparation refer to Template No. 7150-0056.
- 4. All dimensions given in inches (mm).
- 5. For universal or square edge doors use latchbolts with flat front (i.e. F694, F480B, etc.)
- 6. Dimensions marked with * have tolerances of +1/32, -0.
Experience a safer and more open world
Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

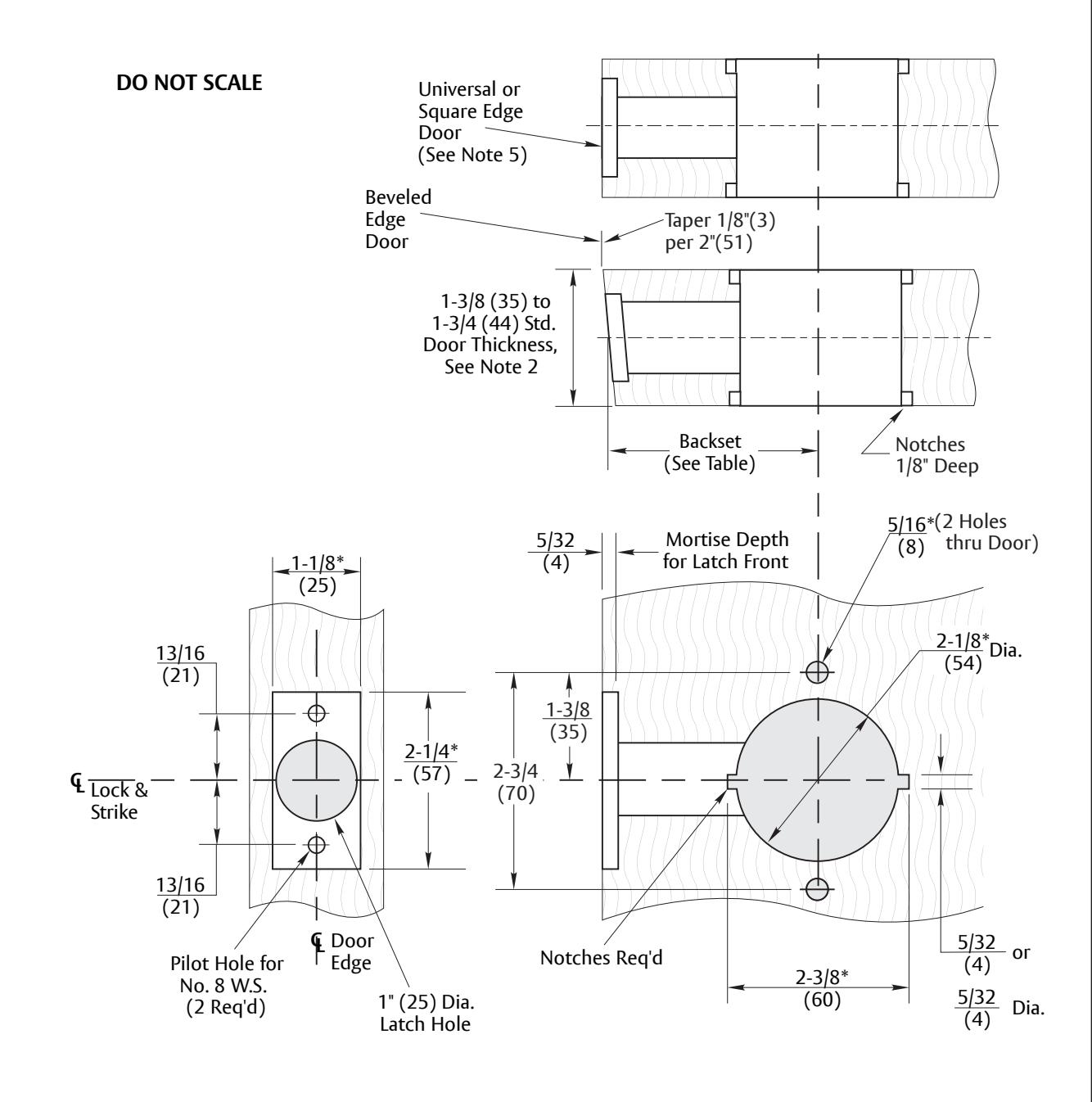

5400LN Series Key-In-Lever Cylindrical Locks -1-1/8" Wide Front Wood Door Preparation (See ANSI/BHMA A156.115) 2-3/4" and Optional Backsets
Template Number: 7150-0057 Sheet: 1 of 1
