5400LN
SERIES Key-In Lever Cylindrical Locks |
||||
|---|---|---|---|---|
| Backset |
1/2"
Throw |
3/4"
Throw |
||
|
Latch
No. |
Link
No. |
Latch
No. |
Link
No. |
|
|
2-3/4
(70) |
693
or 694 |
- | 480B | - |
|
3-3/4
(95) |
3693
or 3694 |
- | 3480B | - |
|
5
(127) |
693
or 694 |
481DL | 480B | 481DL |
|
6
(152) |
3693
or 3694 |
481 | 3480B | 481 |
|
7
(178) |
693
or 694 |
482 | 480B | 482 |
|
8
(203) |
3693
or 3694 |
482 | 3480B | 482 |
|
18
(457) |
693
or 694 |
484 | 480B | 484 |
|
19
(483) |
3693
or 3694 |
484 | 3480B | 484 |
Notes:
- 1. For strike preparation refer to: 495 Strike - Template No. 7102-0005 497 Strike - Template No. 7102-0003
- 2. The 5400LN locks can be installed on 1-3/8" (35mm) thick doors by using two (2) #14-5401-6644 spacers under the inside and outside roses.
- 3. For wood door preparation refer to Template No. 7150-0057.
- 4. Door manufacturer must provide supports within the door to keep the door from collapsing when lock is installed. Back of latch case must also be supported.
- 5. All dimensions given in inches (mm).
- 6. For universal or square edge doors use latchbolts with flat front (i.e. F694, F480B, etc.)
- 7. Dimensions marked with * have tolerances of +1/32, -0.
Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

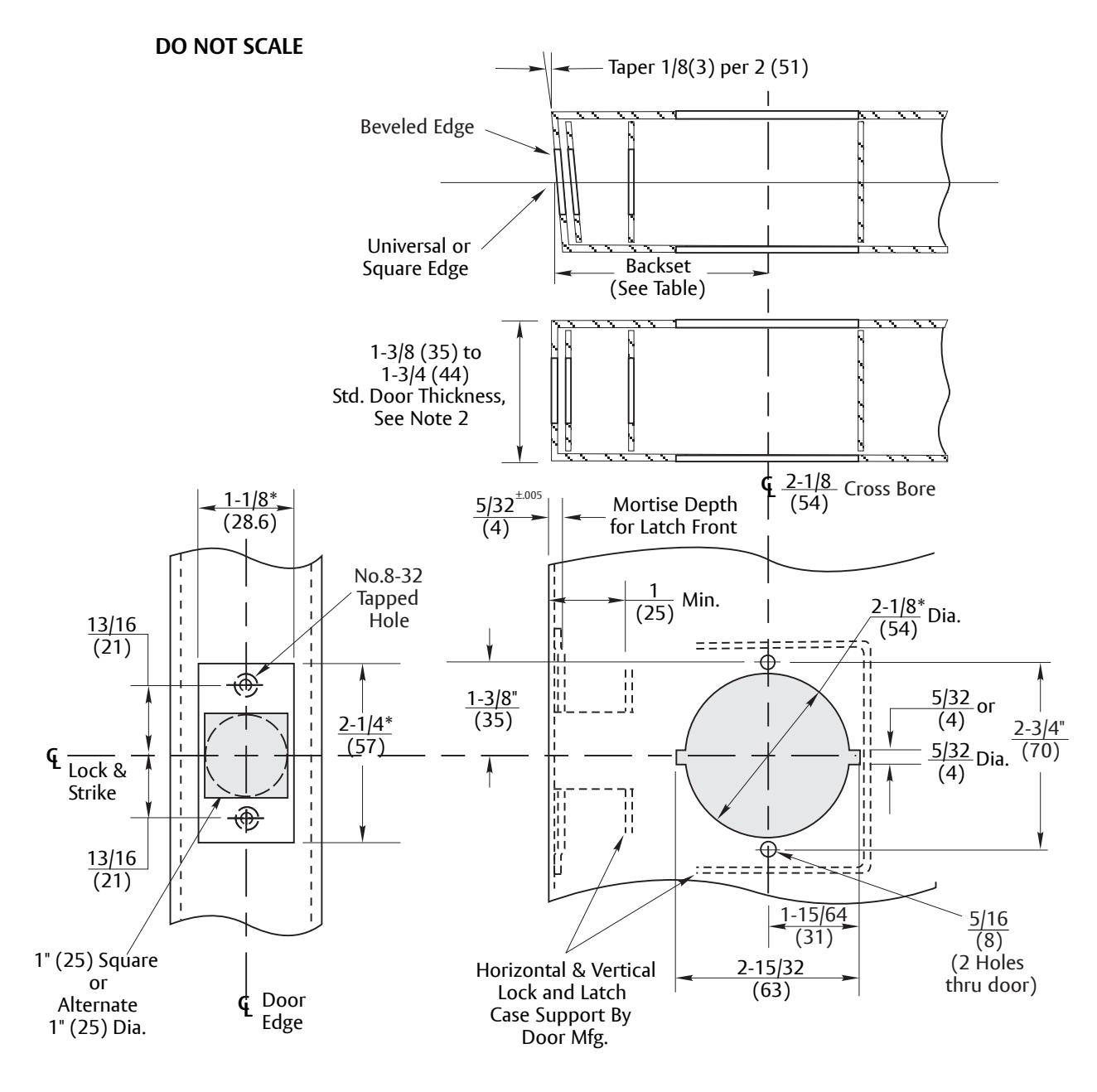

5400LN Series Key-in-Lever Cylindrical Locks - 1-1/8" Wide Front H.M. Door Preparation (See ANSI/BHMA A156.115) 2-3/4" and Optional Backsets
Template Number: 7150-0056 Sheet: 1 of 1
Date: 12/23
