ASSA ABLOY ACCENTRA 5400 and 5500 Series Cylindrical Locks 2-3, 4 and Optional Backsets Wood Door Template_7150-0059
Open the original PDF document
View PDF| Backset | 1/2" Throw | 5/8" Throw | 3/4" Throw | |||
|---|---|---|---|---|---|---|
| Latch No. | Link No. | Latch No. | Link No. | Latch No. | Link No. | |
| 2-3/4 | 493 or | _ | 478 or | _ | 478A or | _ |
| (70) | 494 | 480 | 480B | |||
| 3-3/4 | 3493 or | _ | 3478 or | _ | 3478A or | _ |
| (95) | 3494 | 3480 | 3480B | |||
| 5 | 493 or | or 481 | 478 or | 481 | 478A or | 481 |
| (127) | 494 | 480 | 480B | |||
| _6_ | 3493 or | 481 | 3478 or | 481 | 3478A or | 481 |
| (152) | 3494 | 3480 | 3480B | |||
| _7_ | 493 or | 400 | 478 or | 400 | 478A or | 402 |
| (178) | 494 | 482 | 480 | 482 | 480B | 482 |
| _8_ | 3493 or | 482 | 3478 or | 482 | 3478A or | 482 |
| (203) | 3494 | 3480 | 3480B | |||
| _18_ | 493 or | 484 | 478 or | 484 | 478A or | 484 |
| (457) | 494 | 480 | 480B | |||
| 19 | 3493 or | 484 | 3478 or | 484 | 3478A or | 484 |
| (483) | 3494 | 3480 | 3480B | |||
Notes:
- 1. When ANSI A115.2 (Fig. 1) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- 2. When ANSI A115.2 (Fig. 2) Strike is specified, refer to No. 495 Strike, Template 7102-0005.
- 3. Dimensions marked with * have tolerances of +1/32, +0.
- 4. All dimensions given in inches (mm).
Experience a safer and more open world
Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

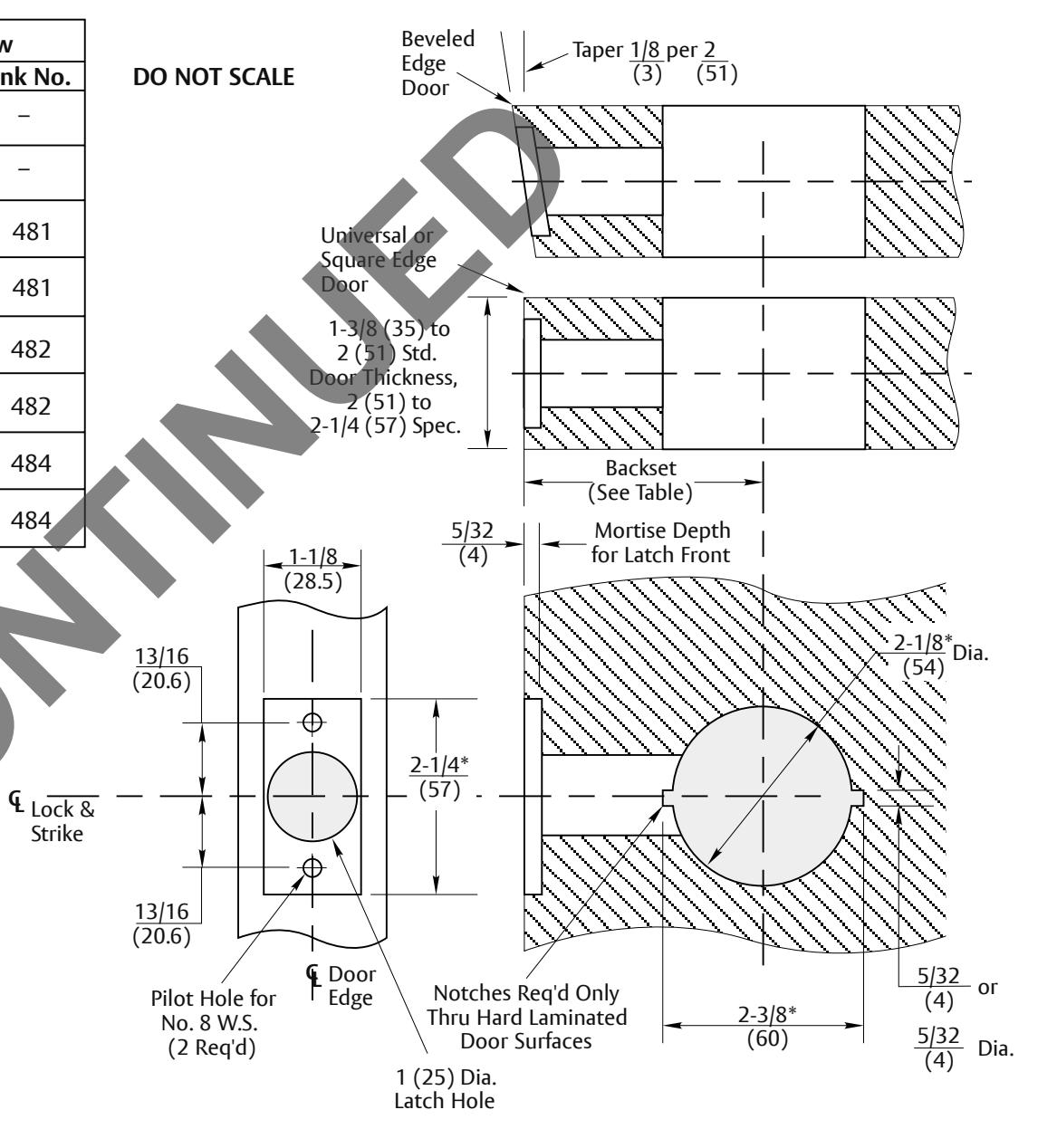

5400 & 5500 Series Cylindrical Locks (Knob Trim) Wood Door Preparation (ANSI A115.2) (FIG. 1) 2-3/4" and Optional Backsets
Template Number: 7150-0059
Sheet: 1 of 1
Date: 12/23
