ASSA ABLOY ACCENTRA 5400 Series Cylindrical Locks 80 and 90 (Solenoid Controlled) Functions 2-3, 4 and Optional …_7150-8005

Backset	1/2" Throw		5/8" Throw		3/4" Throw
	Latch No.	Link No.	Latch No.	Link No.	Latch No.	Link No.
2-3/4 (70)	694	_	480	_	480B	_
3-3/4 (95)	3694	_	3480	_	3480B	_

Notes:

• 1. When ANSI A115.2 (Fig. 1) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
• 2. When ANSI A115.2 (Fig. 2) Strike is specified, refer to No. 495 Strike, Template 7102-0005.
• 3. Dimensions marked with * have tolerances of $\backslash pm\; 1/32$ , $\backslash pm\; 0$ .
• 4. All dimensions given in inches (mm).
• 5. 3/8" minimum hole thru wood door to electric hinge, location optional by door manufacturer.

Experience a safer and more open world

Copyright $\backslash bigcirc$ 2006, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

5480 & 5490 Series Solenoid Controlled Cylindrical Locks (Knob Trim)

Pilot Hole for

No. 8 W.S.

(2 Reg'd)

₲ Door

Edge

Lock & Strike

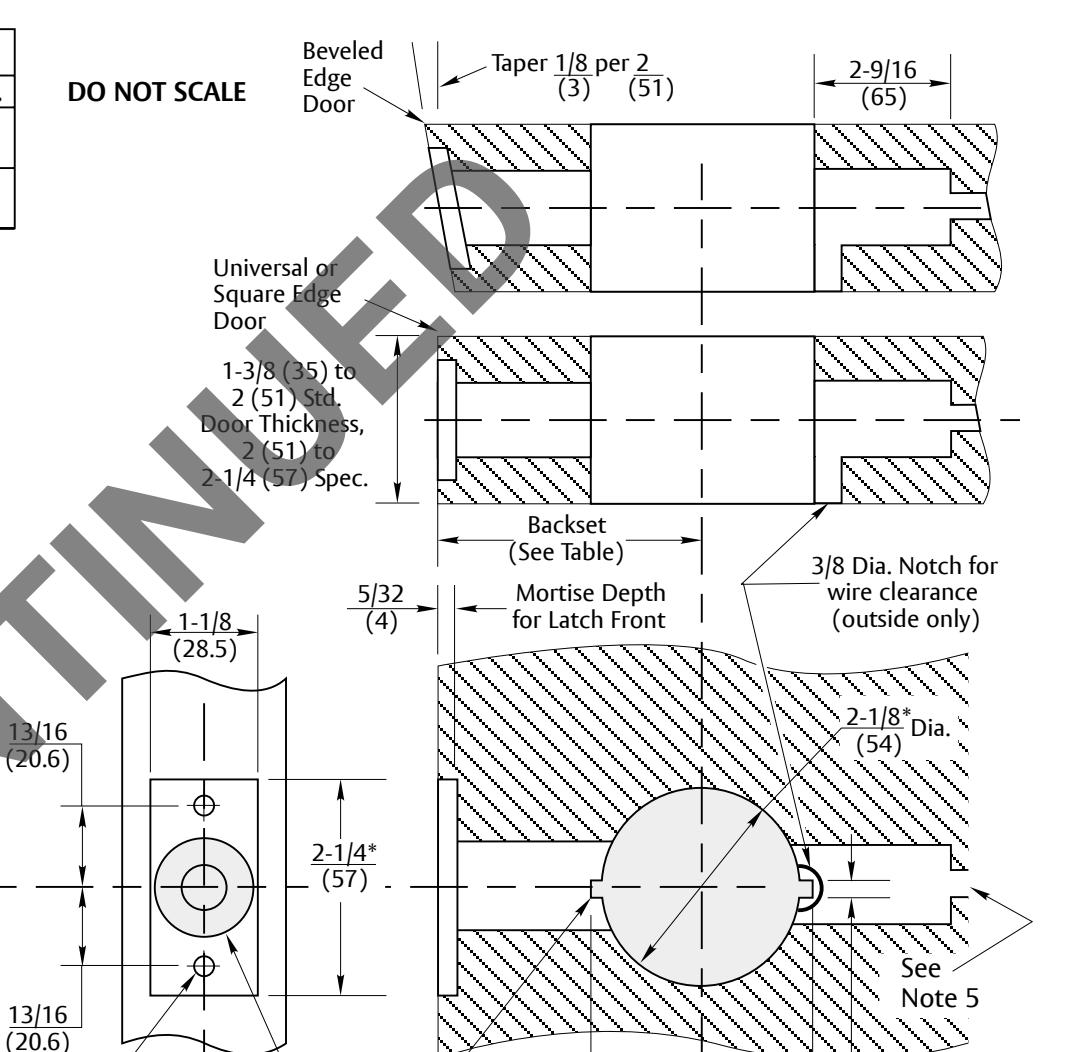

Wood Door Preparation 2-3/4" (70mm) and Optional Backsets

Template Number: 7150-8005 Sheet: 1 of 1

Date: 12/23

Notches Req'd Only

Thru Hard Laminated

Door Surfaces

1 (25) Dia. Latch Hole

ASSA ABLOY

2-3/8*

(60)

(4)

<u>5/32</u> (4)
