ASSA ABLOY ACCENTRA 5300LN Series Cylindrical Locks 80, 81, 90, 91 (Solenoid Controlled) Functions 2-3, 4 and Op…_7150-8015

Beveled Edge

Notes:

• 1. Do not scale drawing
• 2. For strike preparation refer to: 497 Strike - Template No. 7102-0003
• 3. Backset: 2-3/4" (70mm) standard

3-3/4" (95mm) to order 5" (127mm) to order

• 4. For H.M. door preparation refer to Template No. 7150-8014.
• 5. All dimensions given in inches (mm).
• 6. 3/8" (9.5mm) minimum raceway thru door to electric hinge, location optional by door manufacturer.

Experience a safer and more open world

Copyright © 2009, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

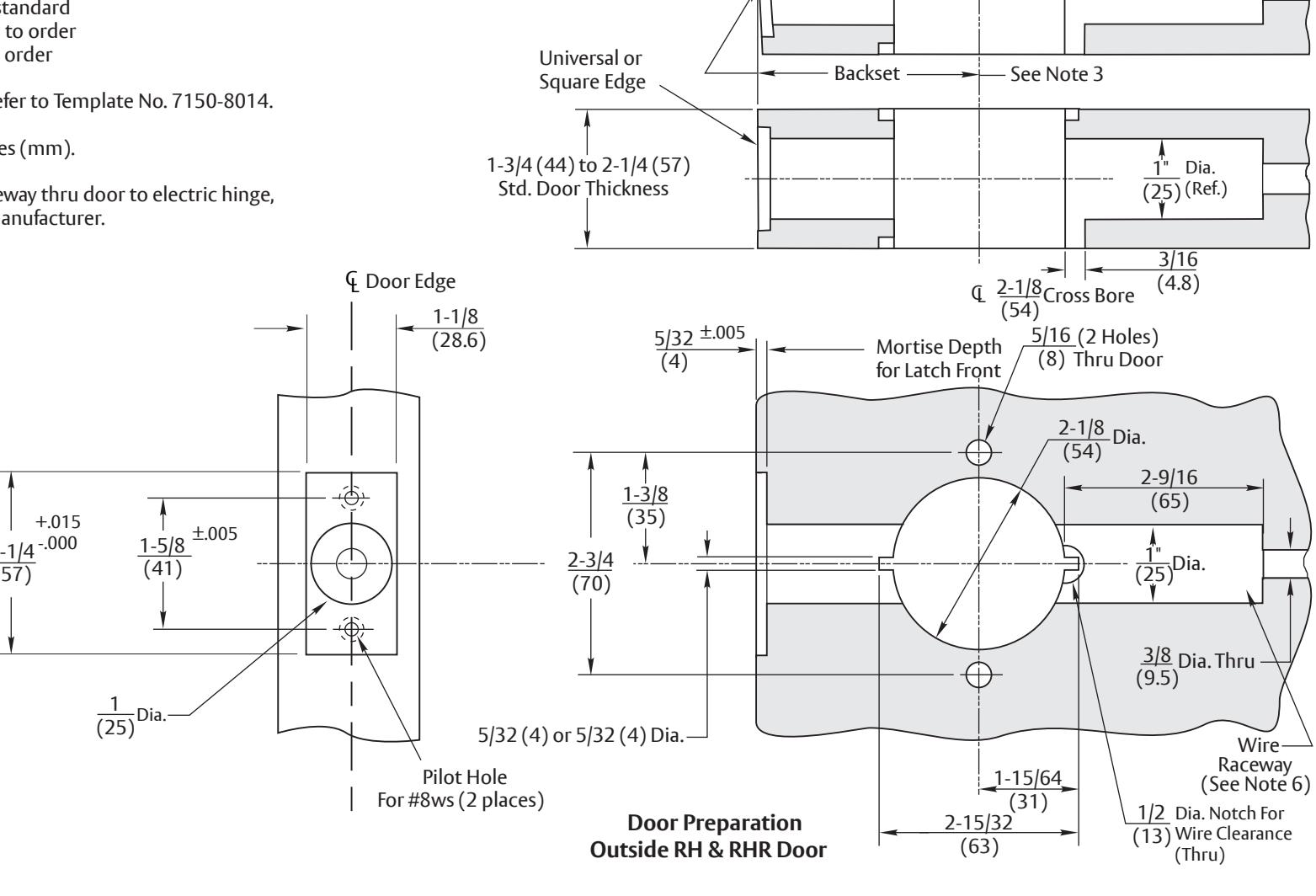

5380LN, 5381LN, 5390LN & 5391LN Solenoid Controlled Cylindrical Locks

Wood Door Preparation Backset - 2-3/4" (70mm) and Optional Backsets

Template Number: 7150-8015 Sheet: 1 of 1

— Taper 1/8 (3) per 2 (51)

Date: 12/23
