ASSA ABLOY ACCENTRA 5300LN Series Cylindrical Locks 2-3, 4 and Optional Backsets 1-1, 8 Wide Front H.M. Door Tem…_7150-0066
Open the original PDF document
View PDF|
5300LN
SERIES Lever Locks |
||
|---|---|---|
| Backset |
Latch
No. |
Link
No. |
|
2-3/4
(70) |
380AN,
380BN |
– |
|
3-3/4
(95) |
3380AN,
3380BN |
– |
|
5
(127) |
380AN,
380BN |
381AN |
|
6
(152) |
3380AN,
3380BN |
381AN |
Notes:
- 1. When 4-7/8" (123.8) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- 2. When T-Strike is specified, refer to No. 371 Strike, Template 7102-0005.
- 3. Dimensions marked with * have tolerances of +.015, -0.000
- 4. All dimensions given in inches (mm).
- 5. Std. Locks adjustable for 1-3/8(35) to 1-3/4"(44) door thicknesses. Special order locks adjustable for 2" (51) to 2-1/4" (57) door thicknesses.
- 6. For universal or square edge doors use latchbolts with flat front (i.e. F380AN, F3380AN, etc.)
Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

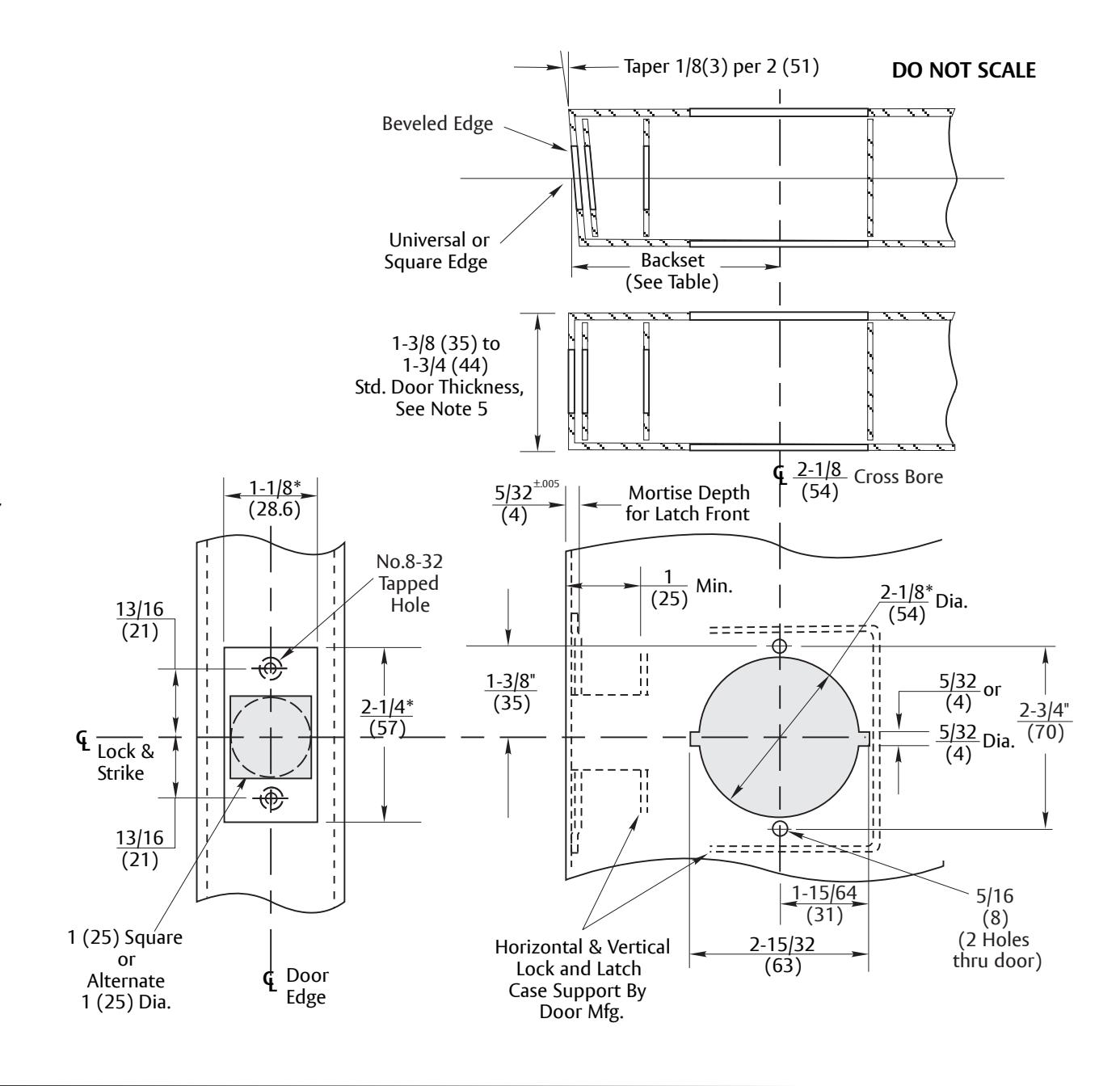

5300LN Series Lever Handle Cylindrical Locks - 1-1/8" Wide Front H.M. Door Preparation (See ANSI/BHMA A156.115) 2-3/4" and Optional Backsets
Template Number: 7150-0066 Sheet: 1 of 1
Date: 12/23
