5300 SERIES
Knob Locks |
||
|---|---|---|
| Backset | Latch No. | Link No. |
|
2-3/8
(60) |
380N, 378N | _ |
|
2-3/4
(70) |
380CN, 380DN | _ |
|
3-3/4
(95) |
3380CN
3380DN |
_ |
|
5
(127) |
380N, 378N | 381N |
| 7 (178) | 380N, 378N | 382N |
|
10
(254) |
380N, 378N | 383N |
|
18
(457) |
380N, 378N | 384N |
Notes:
- 1. When 4-7/8" (123.8) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- 2. When T- Strike is specified, refer to No. 371 Strike, Template 7102-0005.
- 3. Dimensions marked with * have tolerances of +1/32, -0
- 4. All dimensions given in inches (mm).
Experience a safer and more open world
Copyright @ 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

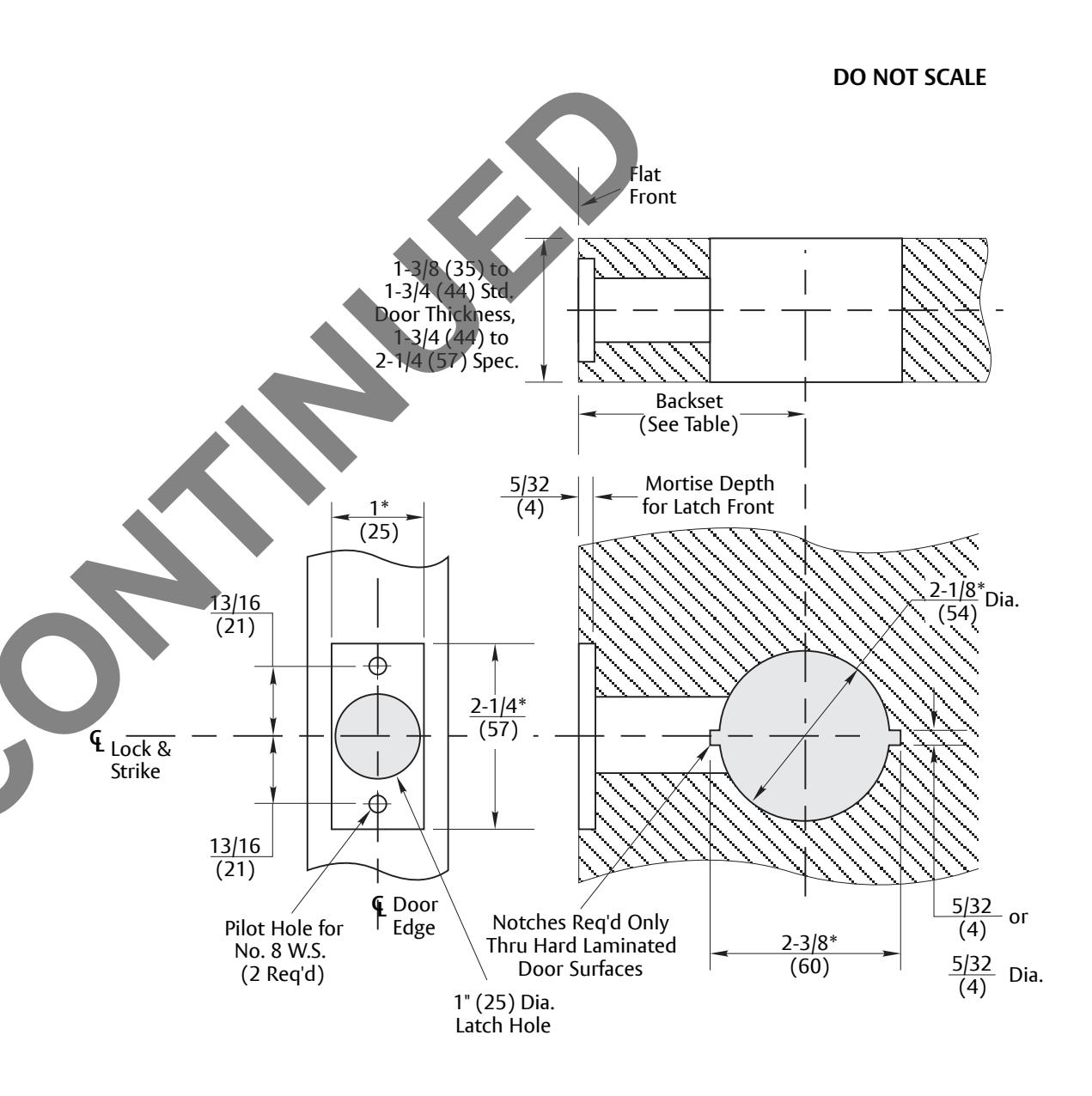

5300 Series Knob Cylindrical Locks - 1" Wide Flat Front Wood Door Preparation (See ANSI/BHMA A156.115) 2-3/8" and Optional Backsets
Template Number: 7150-0061
Sheet: 1 of 1
Date: 12/23
