ASSA ABLOY ACCENTRA 5300 Series Cylindrical Locks 2-3, 4 and Optional Backsets 1-1, 8 Wide Front H.M. Door Templ…_7150-0062

	5300 SERIES Knob Locks
Backset	Latch No.	Link No.
2-3/4 (70)	380AN, 380BN	-
3-3/4 (95)	3380AN, 3380BN	-
5 (127)	380AN, 380BN	381AN
6 (152)	3380AN, 3380BN	381AN

Notes:

• 1. When ANSI A115.2 (Fig. 1) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
• 2. When ANSI A115.2 (Fig. 2) Strike is specified, refer to No. 371 Strike, Template 7102-0005.
• 3. Dimensions marked with * have tolerances of +.015, -.000
• 4. All dimensions given in inches (mm).
• 5. For universal or square edge doors use latchbolts with flat front (i.e. F380AN, F3380AN, etc.)

Experience a safer and more open world

$Copyright\; \backslash \; @\backslash \; 2023,\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\; \backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\backslash \; Inc.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\backslash \; Inc.\backslash \; is\backslash \; prohibited.$

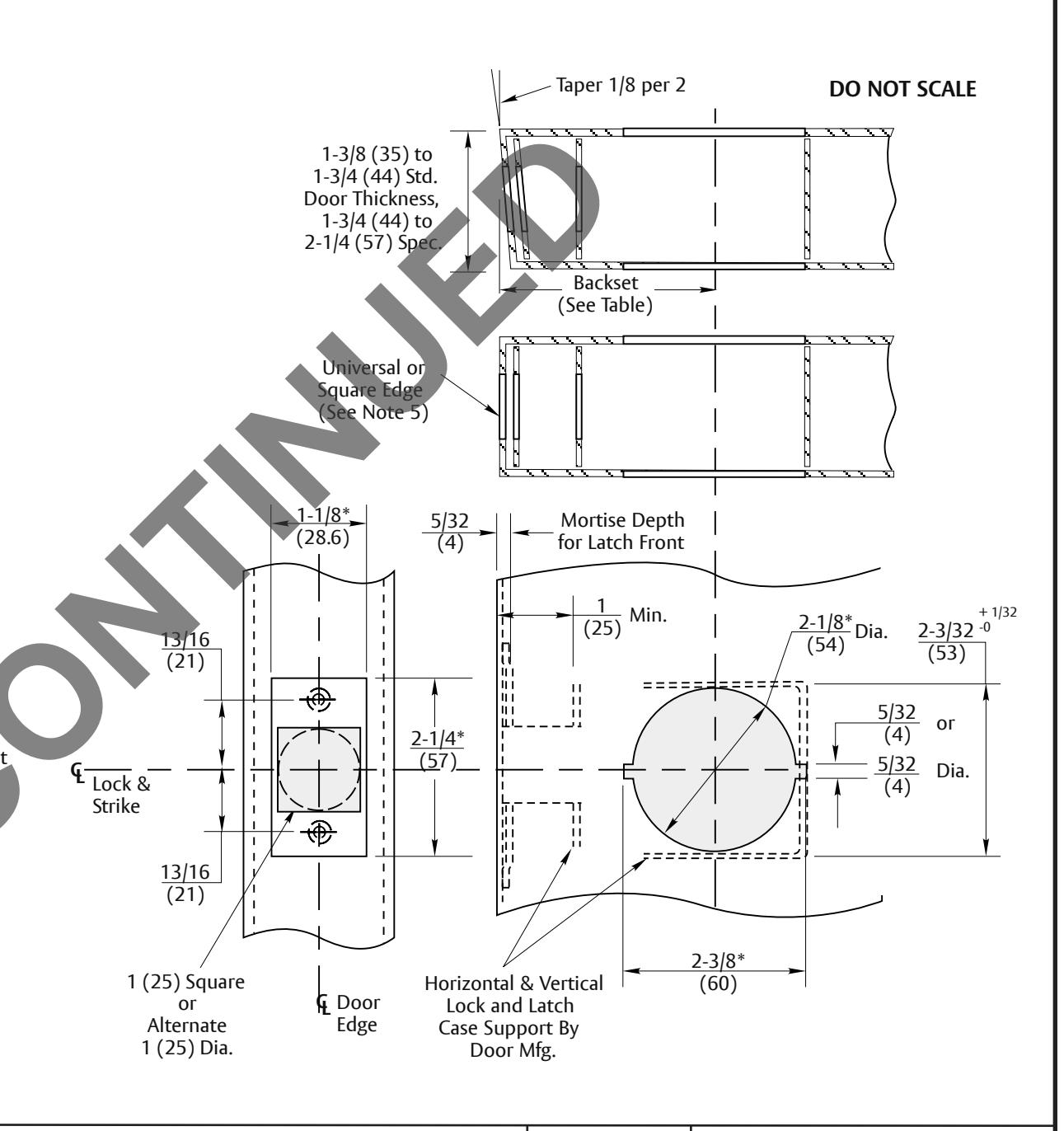

5300 Series Knob Cylindrical Locks - 1-1/8" Wide Front H.M. Door Preparation (ANSI A115.2) (FIG. 1) 2-3/4" and Optional Backsets
