ASSA ABLOY ACCENTRA 525F and 529F Trim for 1500(F), 2100(F), and 7100(F) Series Narrow Stile Rim_7400-1525

Open the original PDF document

NOTES:

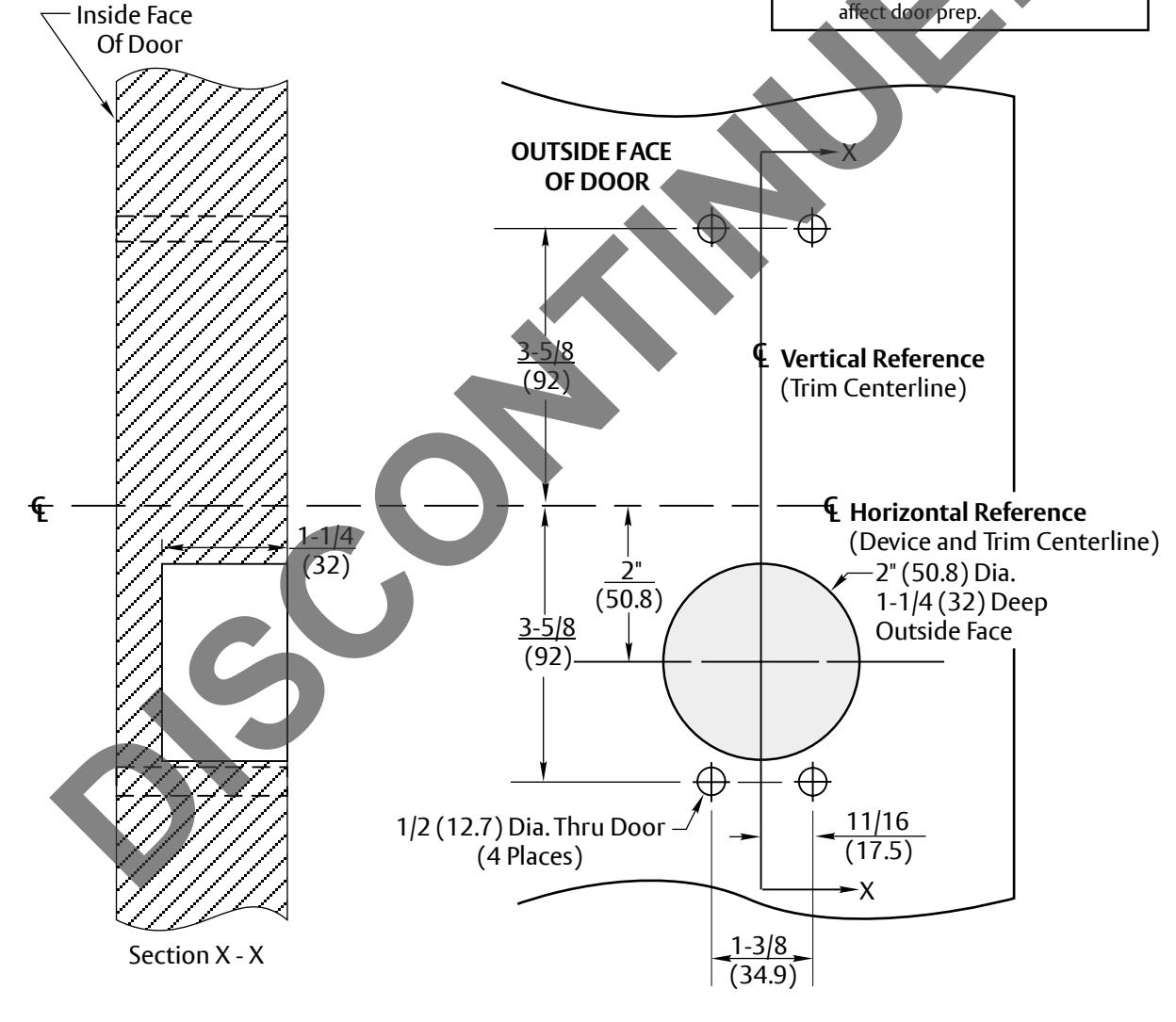

This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
2. Do not scale drawing.
3. Dimensions are in inches (mm).
4. LHR door shown. Preparation is typical for both door hands.
5. Provide adequate internal support to maintain door integrity during operation.
6. Prepare mounting holes when installing trim.

Note: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

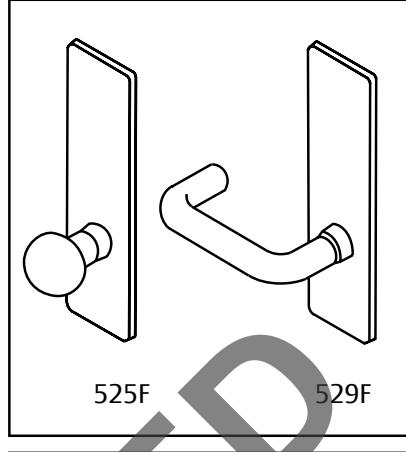

525F and 529F Trim

With 1500(F), 2100(F) or 7100(F) Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation

ASSA ABLOY

supersedes 3/06 do not scale drawing template number 7400-1525 date 12-23
