Printed in U.S.A

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template 7400-0000.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.
  • 9. For dummy trim, centerhole of inside door face may be omitted.

Note: Lever and knob prefix does not affect door prep.

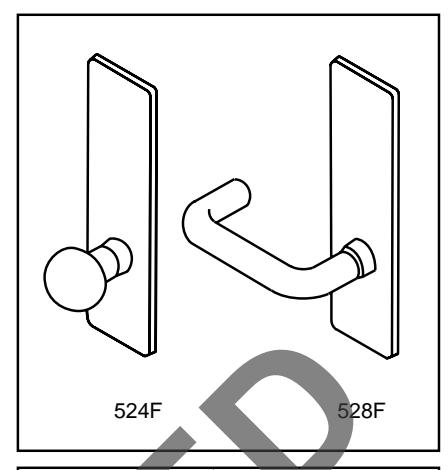

524F and 528F Trim

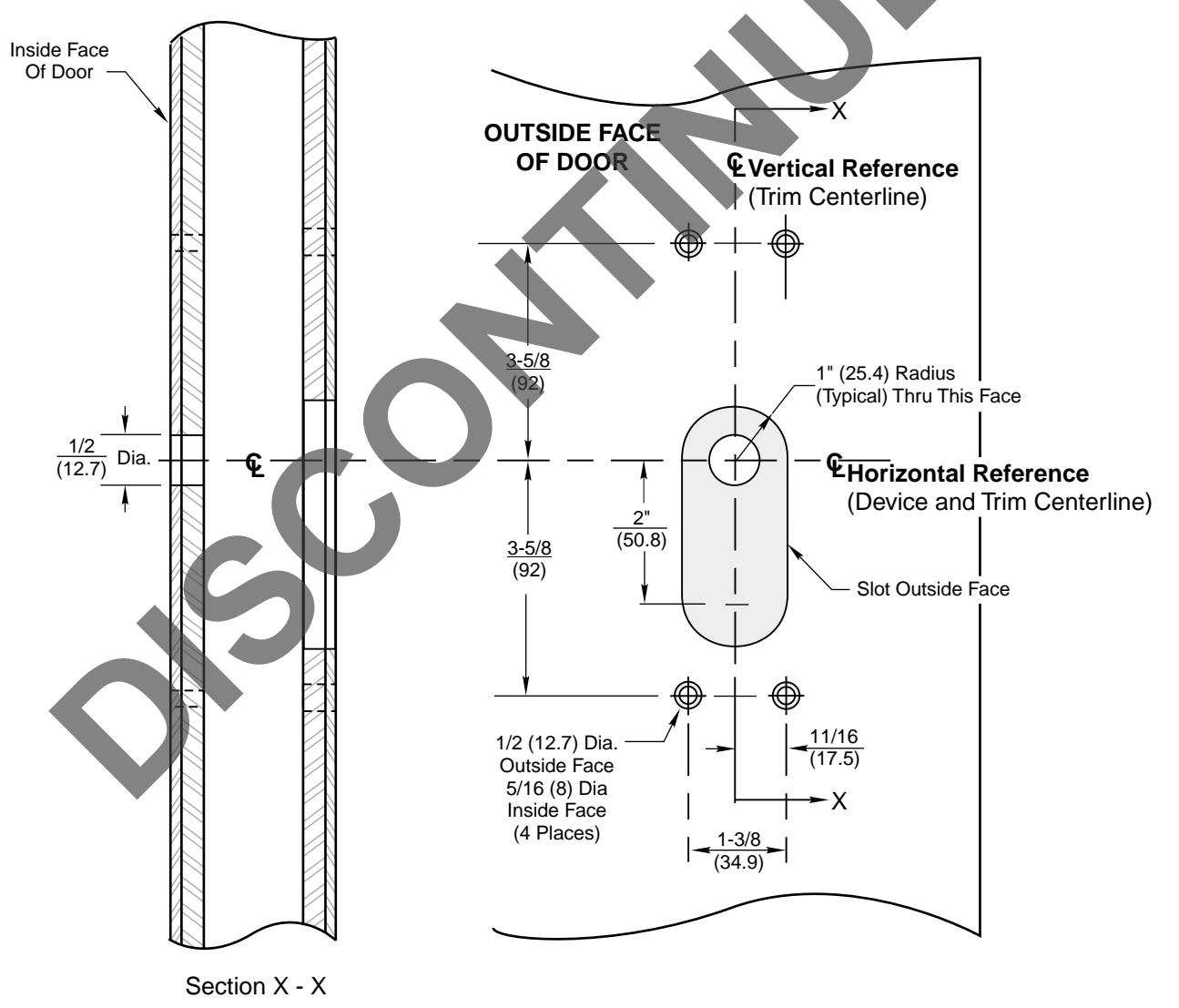

With 1500(F), 2100(F) or 7100(F) Series Rim and Vertical Rod Exit Devices Metal Door Preparation

Yale <sup>®</sup>

Yale Commercial Locks and Hardware

www.yalecommercial.com

TEMPLATE NUMBER 7400-0524

3-06
