ASSA ABLOY ACCENTRA 524F & 528F Series Trim (Discontinued) Installation Instructions_80-8470-0524-000

Installation Instruction

• 1. Check box contents. See other side for components.

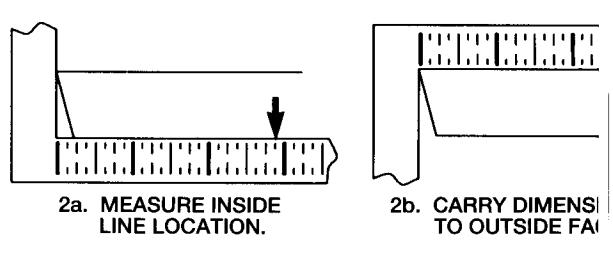

• 2. After marking door inside face for device k (Device Instructions), carry "Vertical Refere Centerline" from inside door face. Follow s 2a. and 2b. below.

• 3. Carry "Horizontal Reference Centerline" from inside to outside door face.
• 4. Align trim template and tape to door outsit face

CAUTION: Office copiers and facsimile machines mechange the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the dimensions written on the template to locate the holon the door (do not use the template as a door marker).

• 5. Spot holes and prepare door for trim.

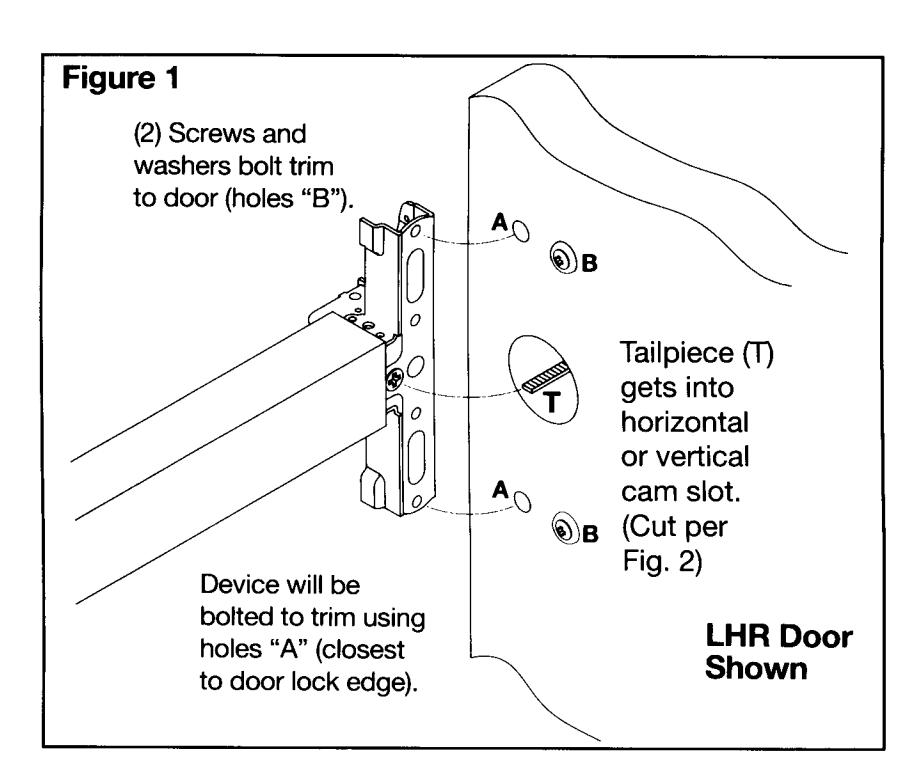

• Mount trim to door. Fasten finger tight only 2 screws and washers seating on door, as in Figure 1.

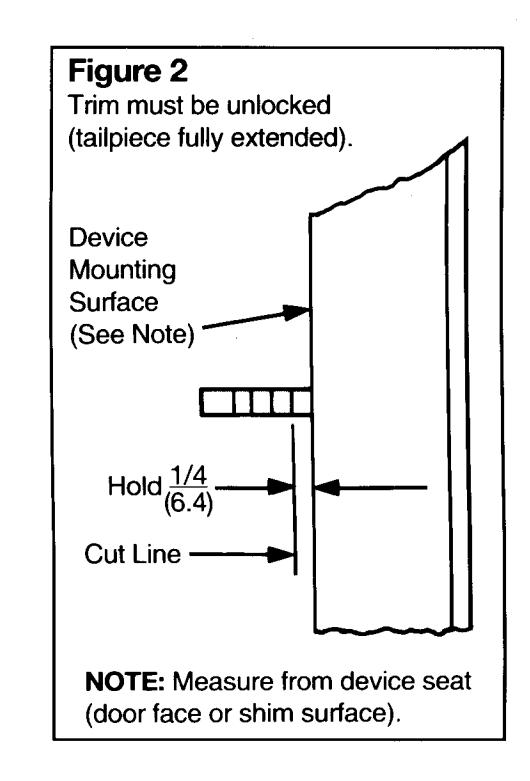

• 7. Cut trim tailpiece as shown in Figure 2.
• 8. Seat device so that trim tailpiece penetrate slot, as shown in Figure 1. Continue as she device instructions.

cation

N OVER

with shown

s cam

wn in

ce

eps

Dimensions given in $\backslash frac\{\backslash text\{inches\}\}\{\backslash text\{(mm)\}\}$ .

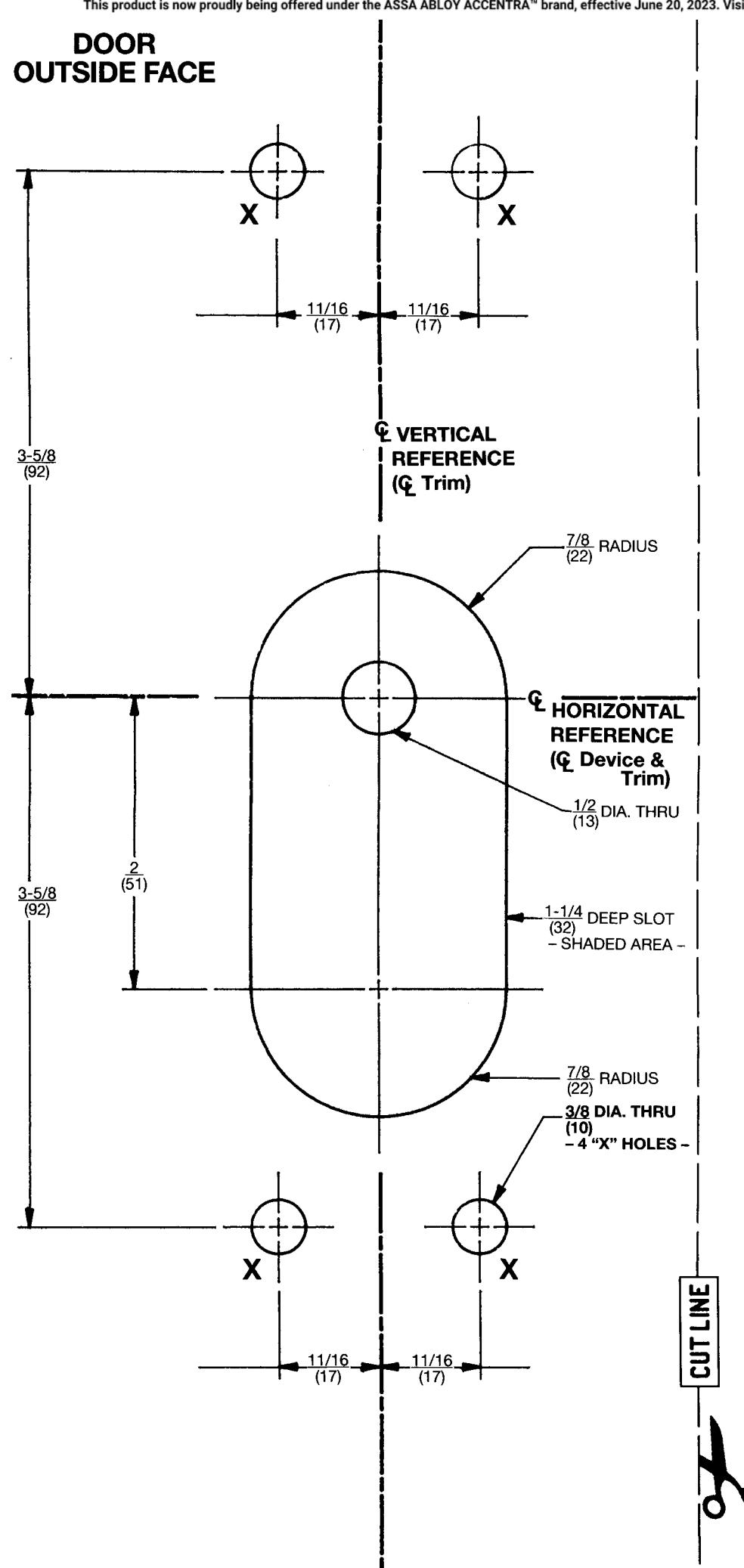

Yale® 524(F) & 528(F) Series Trim Installation Template

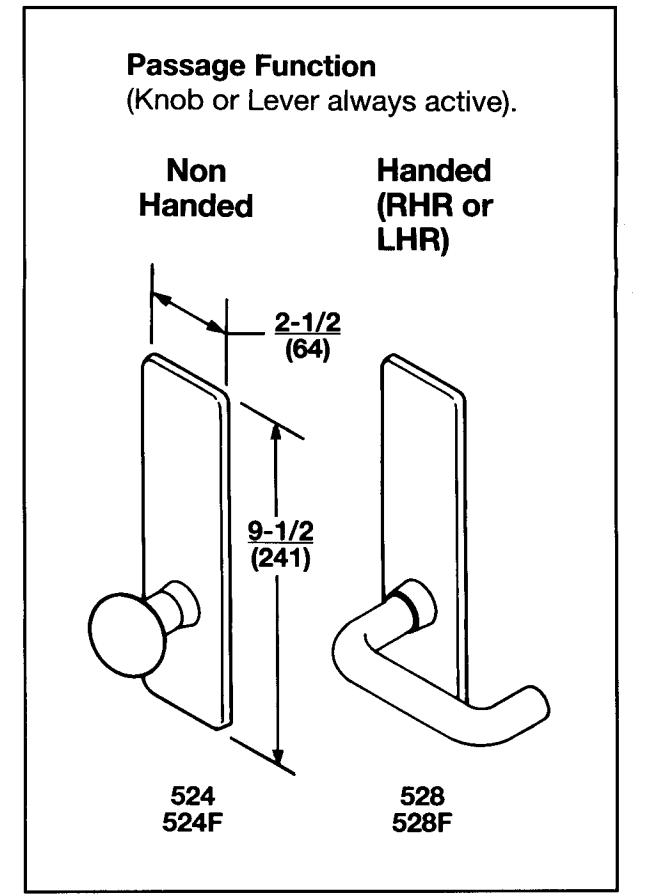

Note: 528(F) illustrated. 524(F) identical, except that actuator is a knob and trim is non-handed.

OCK EDGE

Packed

OCK EDGE

0-036
