ASSA ABLOY ACCENTRA 521F Trim for 1500(F), 2100(F), and 7100(F) Series Narrow Stile Rim, SVR, CVR_7400-0521

Notes:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing the trim.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
• 8. Dimensions given about a centerline are symmetrical.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

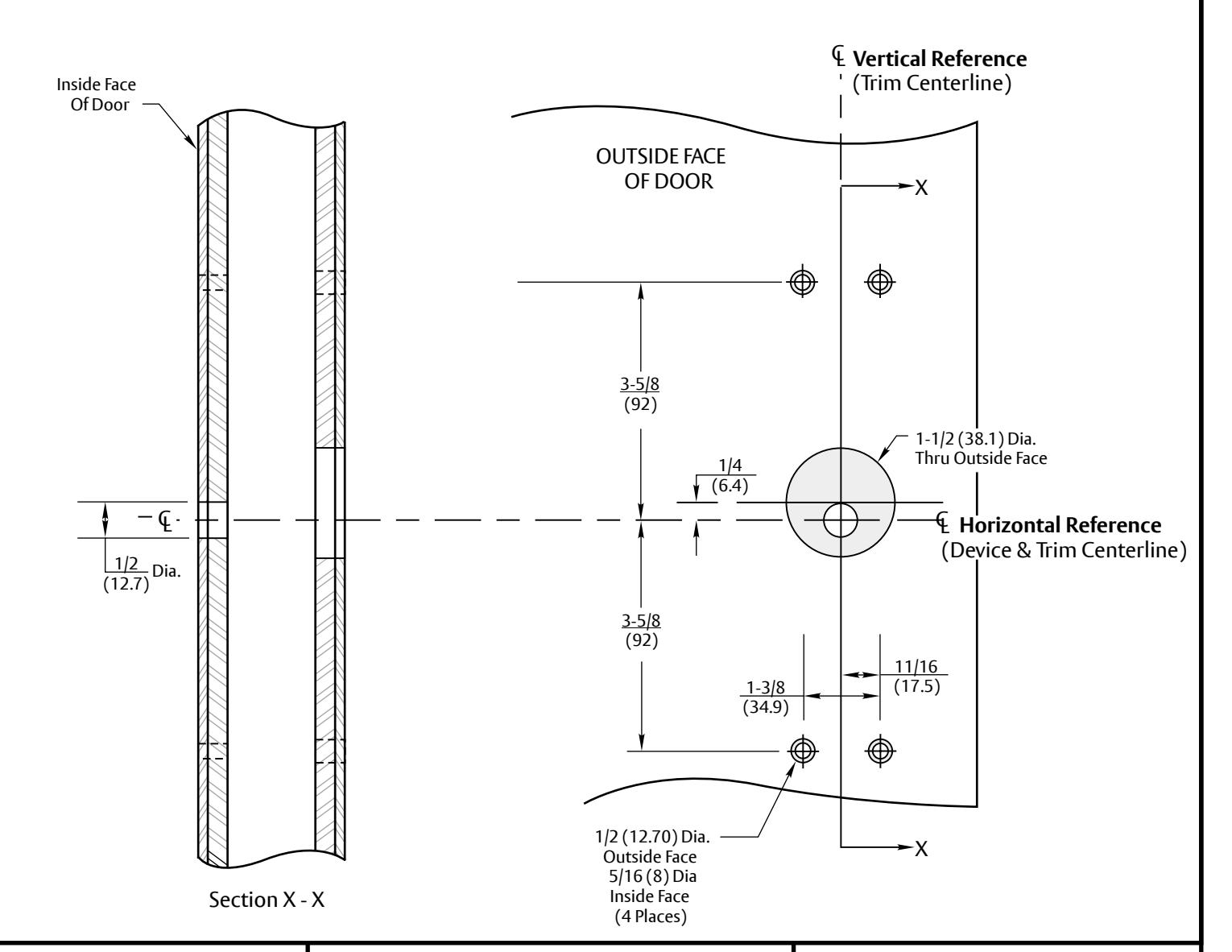

521F Trim With 1500(F), 2100(F) or 7100(F) Series Rim, and Vertical Rod Exit Devices Metal Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.
