ASSA ABLOY ACCENTRA 513(F), 517(F), 518(F), and 519(F) Trim for 6200ED and 7200(M)(F) Series Narrow_7400-1513

Open the original PDF document

View PDF

NOTES:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate structural support to maintain door integrity during

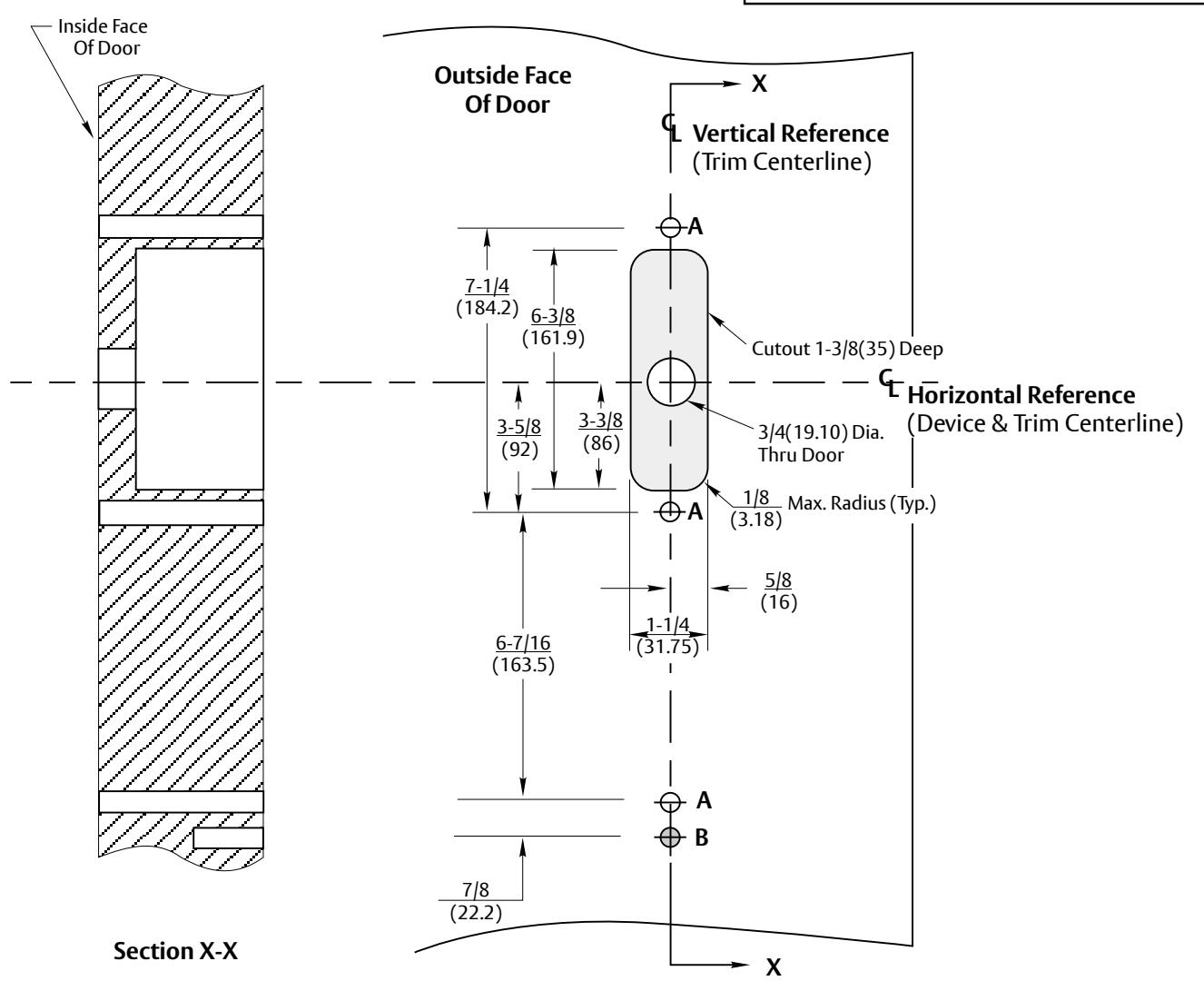

Hole Specification
A 1/2(12.50) Dia. Thru Door
B 3/8(9.50) Dia. X 3/4(19) Deep

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

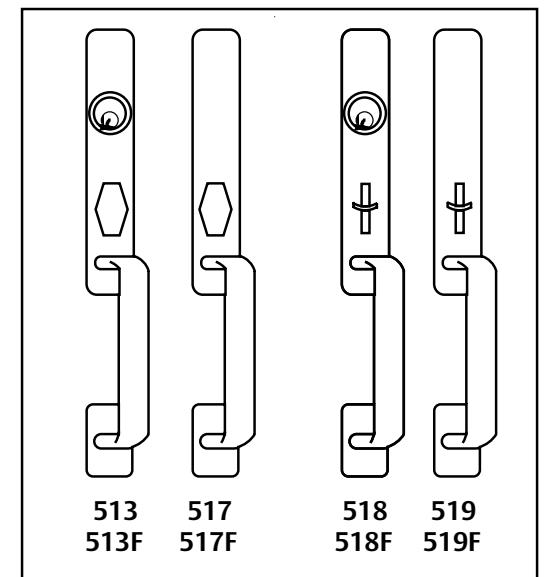

513(F),517(F),518(F) and 519(F) Narrow Escutcheon Trim

With 7200(M) or 7200(MF) Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation

7400-1513 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 8/99 12-23
