ASSA ABLOY ACCENTRA 513(F), 517(F), 518(F), and 519(F) Trim for 6200ED and 7200(M)(F) Series Narrow_7400-0513

Notes:

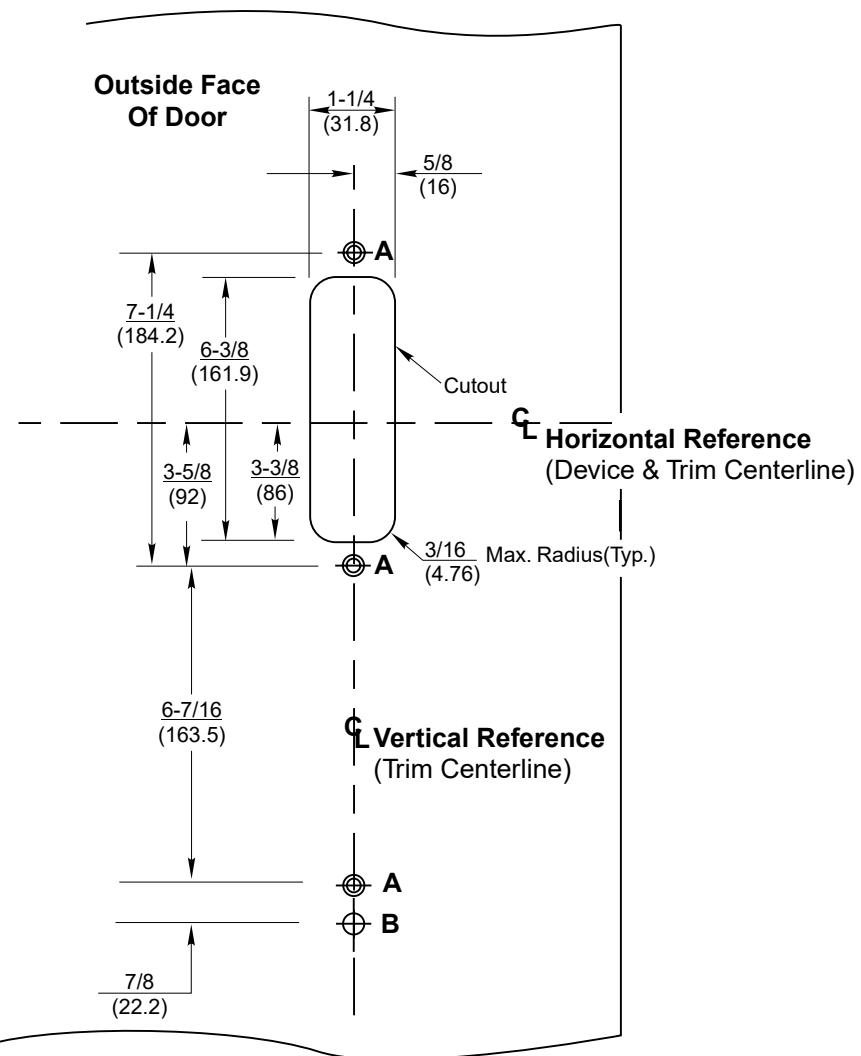

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing the trim.
• 7. Provide internal door support door deformation from bolting trim to the device

Hole	Specification
A	3/8(9.50) Dia. Outside Face 5/16(8) Dia. Inside Face (3 Places)
B	3/8(9.50) Dia. Outside Face

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

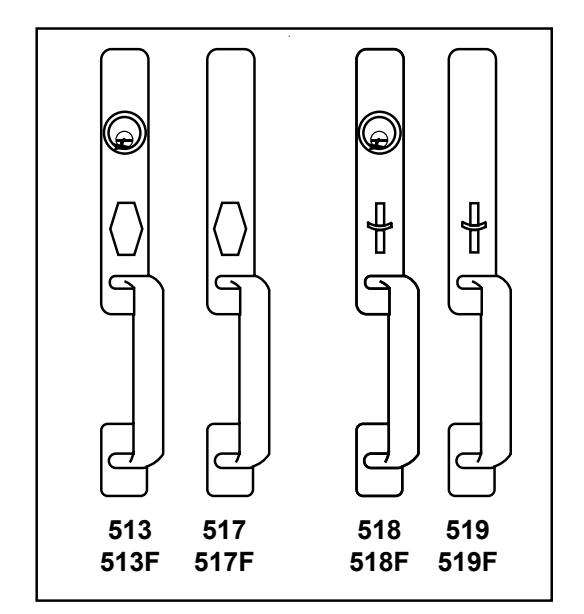

513(F),517(F),518(F) and 519(F) Narrow Escutcheon Trim With 7200, 7200M or 7200MF Series Rim and Vertical Rod Exit Devices Metal Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES DO NOT SCALE DRAWING 7400-0513 08/99

TEMPLATE NUMBER

7400-0513 DATE

01-24
