ASSA ABLOY ACCENTRA 5120T, 5121T x 890 Bkt, 214 Drop Plate Optional Template_7350-1304
Open the original PDF document
View PDF
| Opening | |||||
|---|---|---|---|---|---|
| Stop | Dim. A | Dim. B | Dim. C | ||
| 90˚ | 11-1/8 | 9-1/8 | 10-1/8 | ||
| 95˚ | 10-3/8 | 8-3/8 | 9-3/8 | ||
| 100˚ | 9-5/8 | 7-5/8 | 8-5/8 | ||
| 105˚ | 9 | 7 | 8 | ||
| 110˚ | 8-3/8 | 6-3/8 | 7-3/8 | ||
| 115˚ | 7-3/4 | 5-3/4 | 6-3/4 | ||

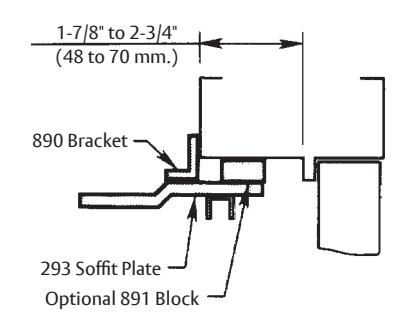

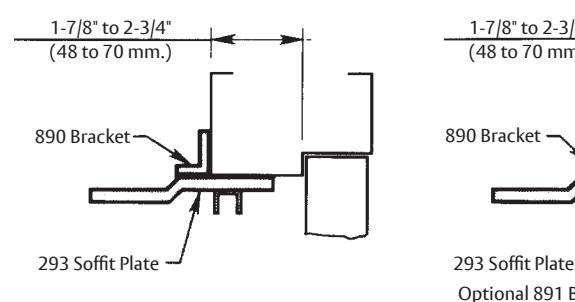

Single Rabbetted Frame Blade Stop Frame
Notes:
- 1. Do not scale drawing
- 2. Left hand door shown.
- 3. Dimensions shown in inches. See conversion chart for metric dimensions.
- 4. Units with a "T" suffix have a hold-open arm and cannot be installed on fire doors.
- 5. Door swing may be limited by door, frame, wall or hardware conditions.
- 6. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified for closers.
- 7. Sex bolts and bolts required to mount closer on steel covered composite type, sheet metal type or hollow metal type fire doors provided without reinforcements.
- 8. Minimum thickness recommended for reinforcements is hollow metal doors and frame: .1046" (2.66 mm.) unless otherwise noted.
| Metric Conversion | ||||||||
|---|---|---|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. | inches | mm. | |
| 3/8" | 9.5 | 2" | 50.8 | 7-3/8" | 187 | 9-1/16" | 230.2 | |
| 7/16" | 11.1 | 2-3/4" | 69.9 | 7-5/8" | 194 | 9-1/8" | 232 | |
| 1/2" | 12.7 | 4" | 101.6 | 7-3/4" | 197 | 9-3/8" | 238 | |
| 3/4" | 19.1 | 5-3/4" | 146 | 8" | 203 | 9-5/8" | 244 | |
| 1" | 25 | 6-3/8" | 162 | 8-3/8" | 213 | 10-1/8" | 257 | |
| 1-1/4" | 38.8 | 6-3/4" | 171 | 8-5/8" | 219 | 10-3/8" | 264 | |
| 1-1/2" | 38.1 | 7" | 177.8 | 9" | 229 | 11-1/8" | 283 | |
| 1-5/8" | 41 | |||||||

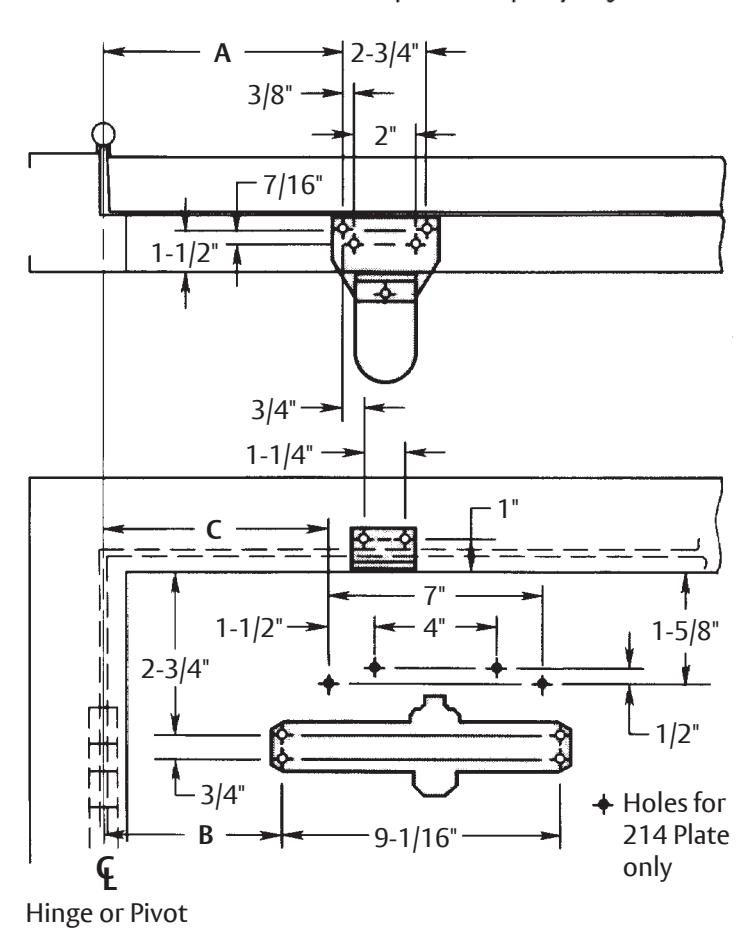

| Top View Typical Installation | |
|---|---|
|
Left Door
Right Door |
|
| Stop | Stop |
|
"S" and "L"
Valves |
|
|
Pinion Flat
Hold Open Installation Shown |
Pinion Flat |
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners | Frame | Door | Drill | ||
|
#14 type "A"
Sheet Metal Screw |
Wood | None | 7/32" (5.5 mm.) | ||
|
1/4-20 machine
screw |
Metal | None | #7 (.201" dia.) or 5.10 mm. drill 1/4-20 tap | ||
|
SNB
None |
Hollow
Metal |
9/32" (7.00 mm.) thru;
3/8" (9.50 mm.) door face opposite to closer |
|||
|
Aluminum
or Wood |
3/8" (9.50 mm.) thru | ||||
Copyright © 2001, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
5120 or 5120T Series HolderStop Door Closers Parallel Arm Application with 890 Reinforcing Bracket and with or without 891 Spacer Block and/or 214 Drop Plate Stop Only or stop with Hold Open (Hold Open indicated by a "T" Suffix) Closer Sizs 1, 1BF, 2, 3, 4, 5, or 6
Template Number: 7350-1304 Sheet: 1 of 1
Date: 12/23
