ASSA ABLOY ACCENTRA 5120T, 5121T, 214 Drop Plate Optional Template_7350-1302
Open the original PDF document
View PDF

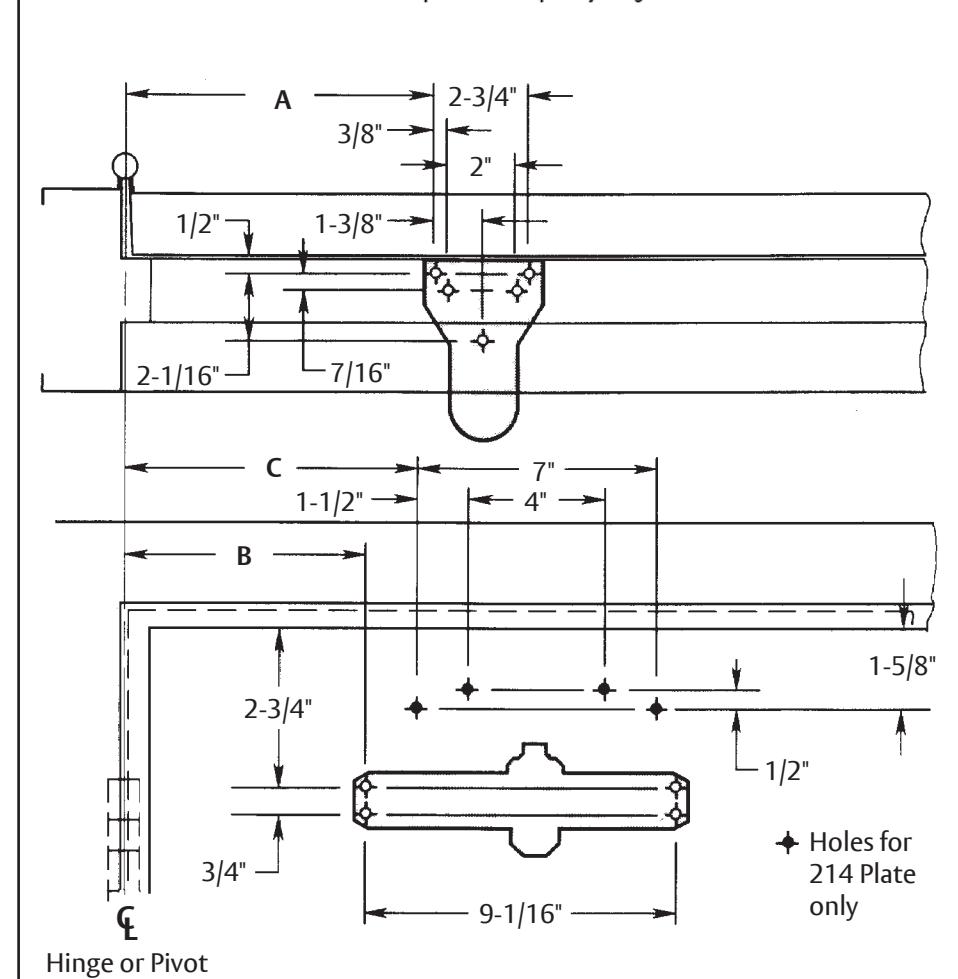

| Opening | |||||
|---|---|---|---|---|---|
|
Hold
Open |
Stop | Dim. A | Dim. B | Dim. C | |
| 85˚ | 90˚ | 11-1/8 | 9-1/8 | 10-1/8 | |
| 90˚ | 95˚ | 10-3/8 | 8-3/8 | 9-3/8 | |
| 95˚ | 100˚ | 9-5/8 | 7-5/8 | 8-5/8 | |
| 100˚ | 105˚ | 9 | 7 | 8 | |
| 105˚ | 110˚ | 8-3/8 | 6-3/8 | 7-3/8 | |
| 110˚ | 115˚ | 7-3/4 | 5-3/4 | 6-3/4 | |

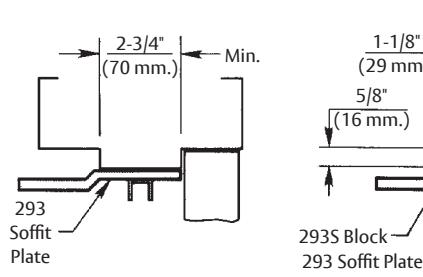

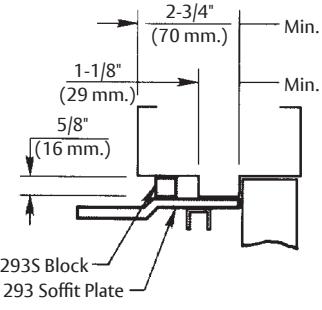

Wide Stop Frame Narrow Stop Frame
Notes:
- 1. Do not scale drawing
- 2. Left hand door shown.
- 3. Dimensions shown in inches. See conversion chart for metric dimensions.
- 4. Units with a "T" suffix have a hold-open arm and cannot be installed on fire doors.
- 5. Door swing may be limited by door, frame, wall or hardware conditions.
- 6. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified for closers.
- 7. Sex bolts and bolts required to mount closer on steel covered composite type, sheet metal type or hollow metal type fire doors provided without reinforcements.
- 8. Minimum thickness recommended for reinforcements is hollow metal doors and frame: .1046" (2.66 mm.) unless otherwise noted.
| Metric Conversion | |||||||
|---|---|---|---|---|---|---|---|
| inches | mm. | inches | mm. | inches | mm. | inches | mm. |
| 2" | 50.8 | 7-3/8" | 187 | 9-1/16" | 230.2 | ||
| 3/8" | 9.5 | 2-1/16" | 52.4 | 7-5/8" | 194 | 9-1/8" | 232 |
| 7/16" | 11.1 | 2-3/4" | 69.9 | 7-3/4" | 197 | 9-3/8" | 238 |
| 1/2" | 12.7 | 4" | 101.6 | 8" | 203 | 9-5/8" | 244 |
| 3/4" | 19.1 | 5-3/4" | 146 | 8-3/8" | 213 | 10-1/8" | 257 |
| 1-3/8" | 34.9 | 6-3/8" | 162 | 8-5/8" | 219 | 10-3/8" | 264 |
| 1-1/2" | 38.1 | 6-3/4" | 171 | 9" | 229 | 11-1/8" | 283 |
| 1-5/8" | 41 | 7" | 177.8 | ||||
| Top View Typical Installation | |
|---|---|
|
Left Door
Right Door |
|
|
Stop
Stop |
|
|
"S" and "L"
Valves |
|
|
Pinion Flat
Pinion Flat Hold Open Installation Shown |
| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners | Frame | Door | Drill | |
|
#14 type "A"
Sheet Metal Screw |
Wood | None | 7/32" (5.5 mm.) | |
|
1/4-20 machine
screw |
Metal | None | #7 (.201" dia.) or 5.10 mm. drill 1/4-20 tap | |
| SNB | None |
Hollow
Metal |
9/32" (7.00 mm.) thru;
3/8" (9.50 mm.) door face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50 mm.) thru | |||
Copyright © 2001, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
5120 or 5120T Series HolderStop Door Closers Parallel Arm Application with or without 214 Drop Plate Stop Only or Stop with Hold Open (Hold Open indicated by a "T" Suffix) Closer Sizes 1, 1BF, 2, 3, 4, 5, or 6 Date: 12/23
Template Number: 7350-1302 Sheet: 1 of 1
1-800-438-1951 www.assaabloy.com
