Installation Instructions
80-9350-2530-010 (06-09)
Model Numbers Included:
PR50(BF) / PR150(BF) 5120(BF)(T)
The Habitat for Humanity®
Parallel Rigid Arm Door Closers with or without Stop
An incorrectly installed or improperly adjusted door closer can cause properly damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.
Additional Closer Options:
- "DL" indicates Delayed Action closing.
- "H" indicates Hold-Open function. These components are handed
- "T" indicates Thumbturn actuated Hold-Open control.
Optional Accessories:
- 213 Dropplate
- 293L, 890, 891 Soffit Plate Accessories.
NOTE: For special applications a separate door and frame preparation template is packed with these instructions. In those cases, use this instruction sheet for installation sequence and closer adjustments only.

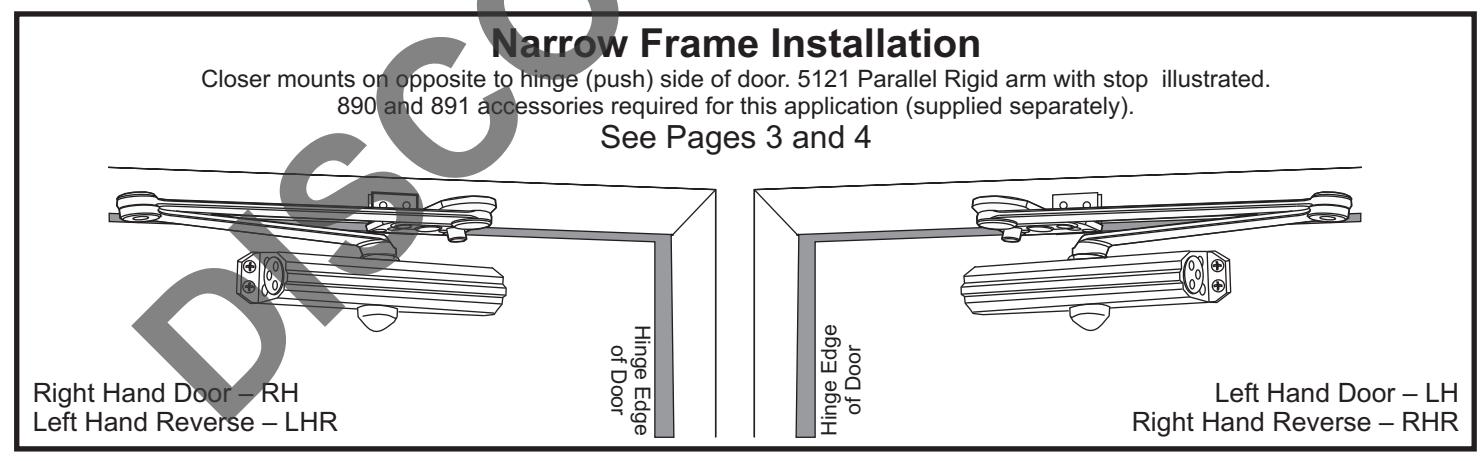

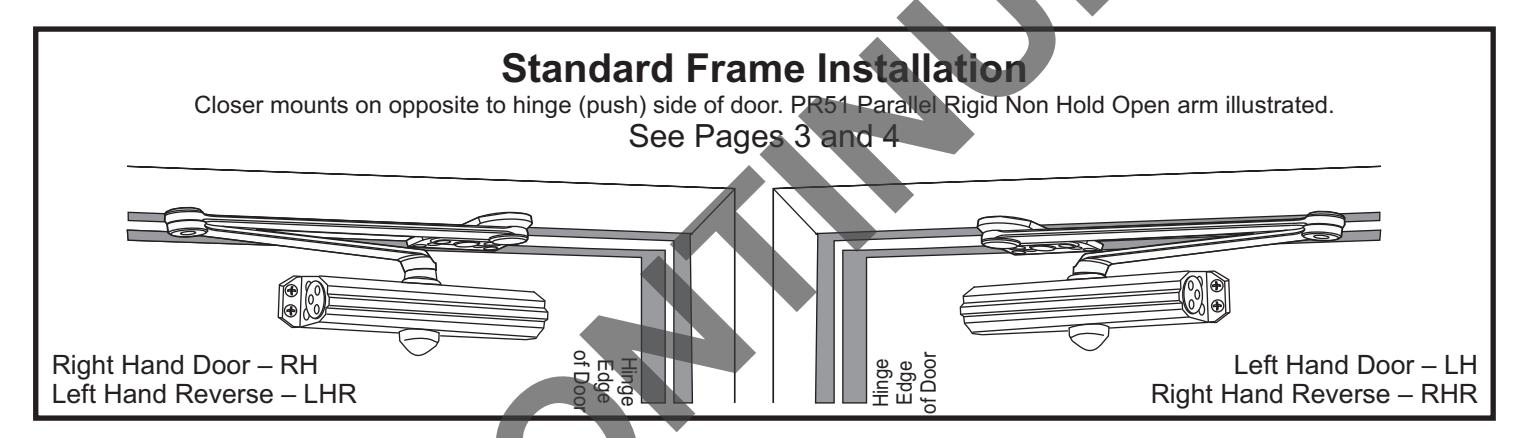

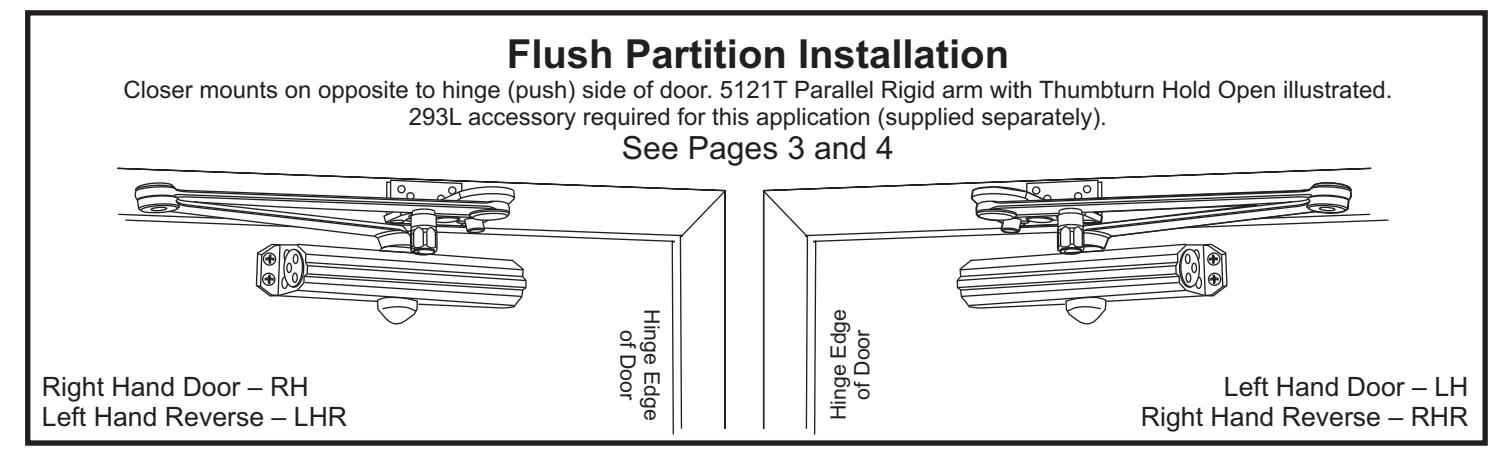

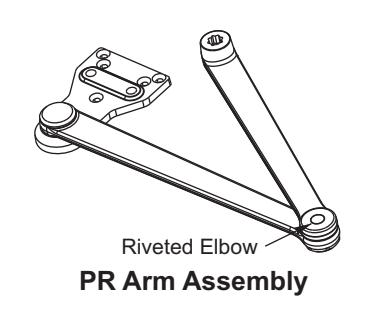

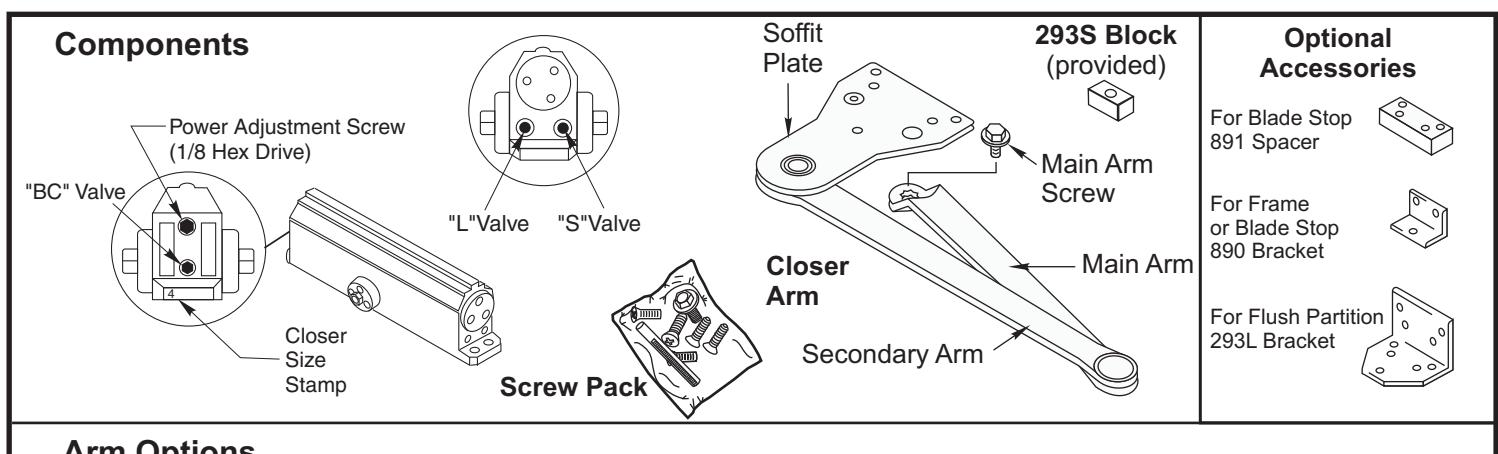

Arm Options

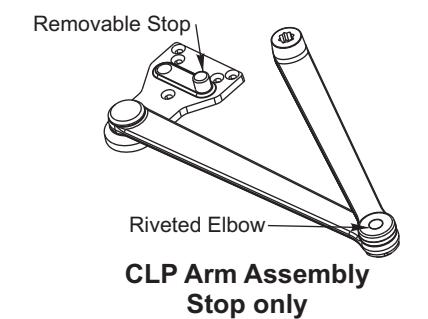

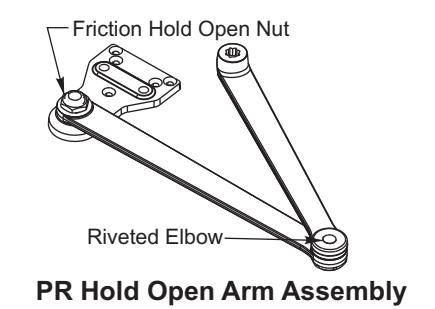

CLP Arm Assembly with Thumbturn
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners | Door or Frame | Drill-Sizes | |||
| Standard |
Aluminum
or Metal |
No drill required | |||
| Self-Drilling Screw | Wood | 3/16" (4.30 mm) | |||
| 1/4" - 20 machine screw | Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
|||
| Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
|||
| Optional |
Aluminum
or Wood |
3/8" (9.5 mm) through | |||
|
Through-bolts and
grommet-nuts |
All |
9/32" (7 mm);
3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer |
|||
Note: MUST Wood doors be pre-drilled when using Self-Drilling Screws.

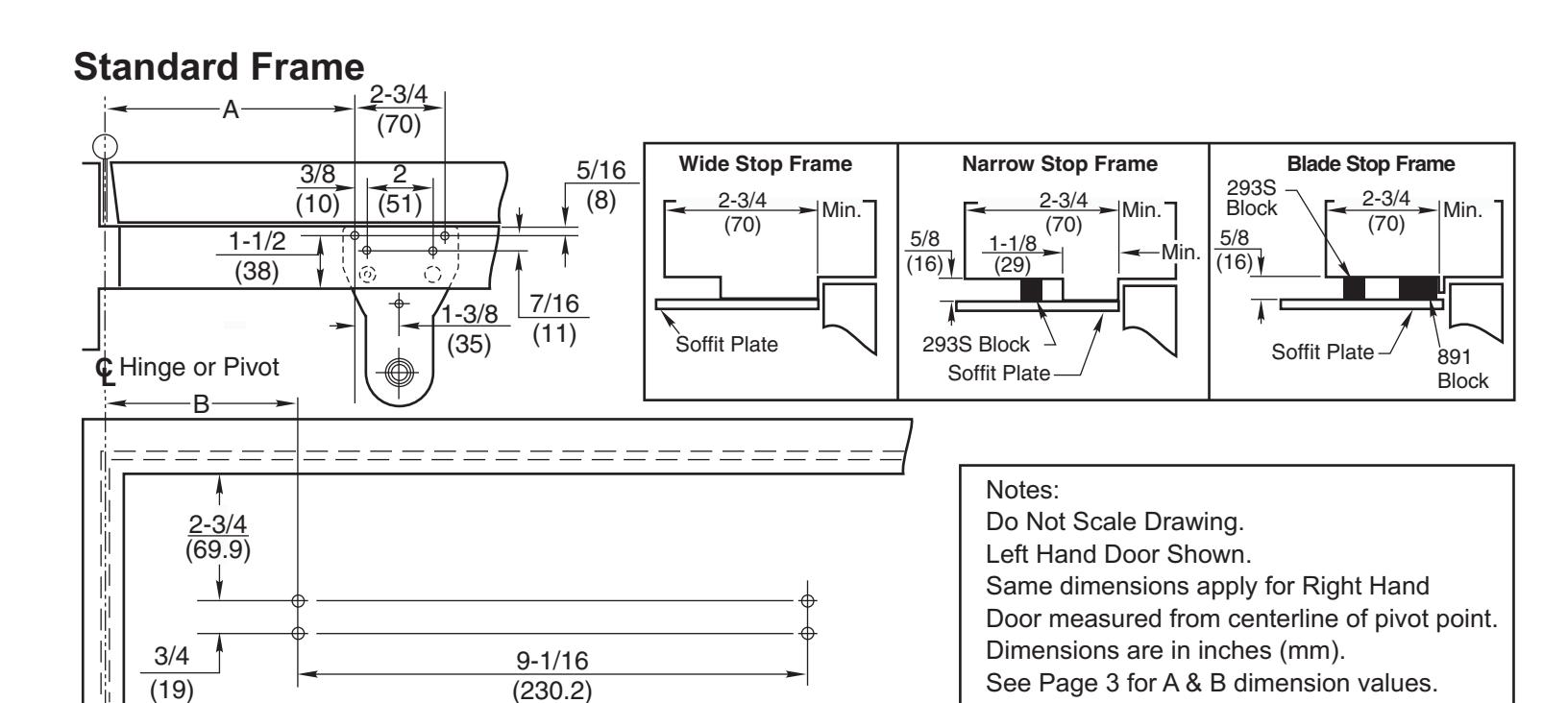

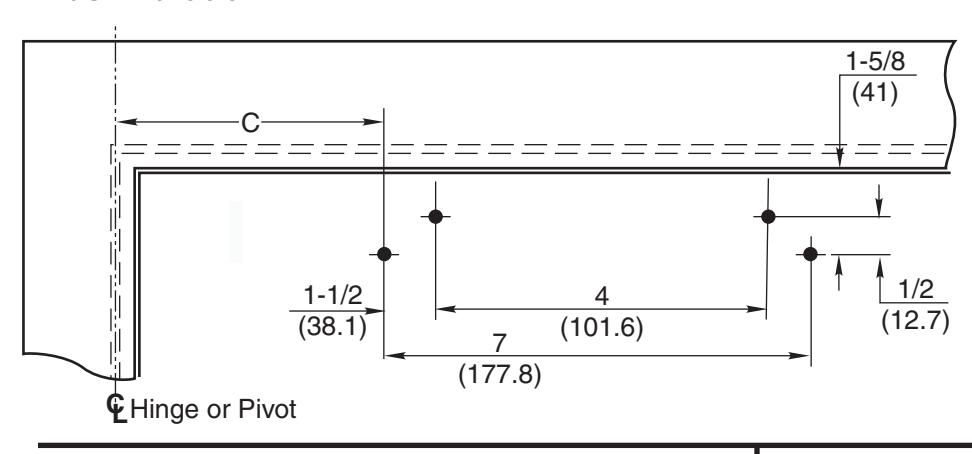

- Select angle of opening and use dimensions shown on Page 4 and Dimension Chart below to locate 4 holes on stop side of door for closer body or 213 dropplate, only if required and 5 holes on stop and/or rabbet for Soffit Plate. For applications not covered in these instructions, a separate template will be required.
- Prepare door and frame for fasteners. See "Preparation for Fasteners", Page 2.
- Set closer power for door size using Power Adjustment Chart below. Use 1/8" hex wrench supplied to adjust Power Adjustment Shaft ... 15 turns maximum. Turn nut CLOCKWISE to Increase, COUNTER-CLOCKWISE to Decrease power. See Page 6 for the illustration of this step.

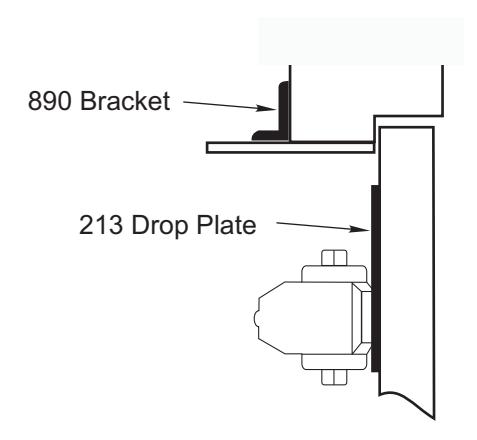

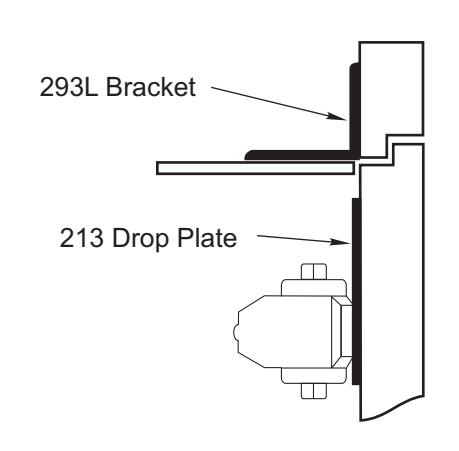

- Mount 213 Dropplate ... only if required (see Page 5).
- Install closer with power adjustment screw toward hinge edge of door. Note: If using cover, thread in screws before mounting closer. Leave enough gap between the head of the screw and the closer to slide the cover on.

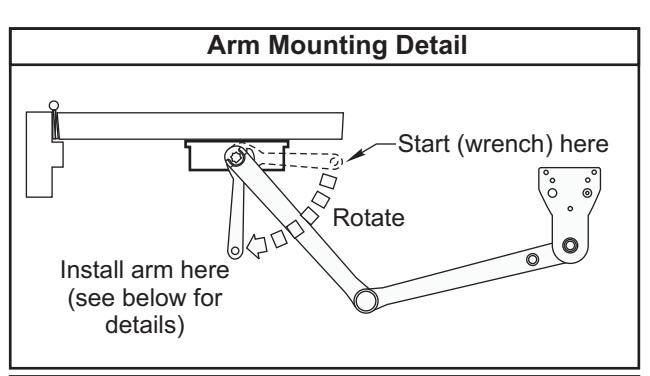

- With door closed, use wrench to rotate pinion shaft as illustrated below, see Arm Mounting Details. Caution: Closer arm is under spring tension and may be difficult to rotate.
| Power Adjustment Chart | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| DOOR |
PARALLEL ARM
INSTALLATION |
* | MAXIMUM DOOR SIZE | ||||||
|
34"
(0.85 m) |
36"
(0.9 m) |
40"
(1 m) |
44"
(1.1 m) |
48"
(1.2 m) |
|||||
| INT | PR51BF/ |
360° TURNS
R ADJUSTMENT SHAFT |
2 | 2 | 3 | 4 | 5 | ||
| EXT |
PR151BF /
5121BF |
8 | 9 | 12 |
NOT
RECOMMENDED USE PR1601/CLP160 |
||||
| INT |
PR51 /
PR151 / |
FULL 36(
POWER 7 |
3 | 5 | 7 | 10 | 13 | ||
| EXT | 5121 | OF PC | 5 | 7 | 10 | 14 | 16 | ||
*18 -360° TURNS MAXIMUM AVAILABLE
| Installation Dimensions Chart | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dim |
Up to
85° |
85°-
90° |
90°-
95° |
95°-
100° |
100°-
105° |
105°-
110° |
110°-
130° |
130°-
180° |
|||
|
PR50 /
PR150 |
Standard
and Narrow Frame |
Α |
in.
(mm) |
9-5/8 8-1/8
(244) (206) |
6-1/8
(156) |
||||||
| В |
in.
(mm) |
7-5/8
(194) |
6-1/8
(156) |
4-1/8
(105) |
|||||||
| Frame | С |
in.
(mm) |
8-5/8
(219) |
7-1/8
(181) |
5-1/8
(130) |
||||||
| Α |
in.
(mm) |
9-3/4 8-1/4
(248) (210) |
6-1/4
(159) |
||||||||
|
Flush
Partition |
В |
in.
(mm) |
7-5/8
(194) |
6-1/8
(156) |
4-1/8
(105) |
||||||
| С |
in.
(mm) |
8-5/8
(219) |
7-1/8
(181) |
5-1/8
(130) |
|||||||
| 5120 |
Standard
and Narrow Frame |
Α |
in.
(mm) |
11-1/8
(283) |
10-3/8
(264) |
9-5/8
(244) |
9 (229) |
8-3/8
(213) |
7-3/4
(197) |
||
| В |
in.
(mm) |
9-1/8
(232) |
8-3/8
(213) |
7-5/8
(194) |
7
(178) |
6-3/8
(162) |
5-3/4
(146) |
||||
| С |
in.
(mm) |
10-1/8
(257) |
9-3/8
(238) |
8-5/8
(219) |
8
(203) |
7-3/8
(187) |
6-3/4
(171) |
||||
|
Flush
Partition |
Α |
in.
(mm) |
11-1/4
(286) |
10-1/2
(267) |
9-3/4
(248) |
9-1/8
(232) |
8-1/2
(216) |
7-7/8
(200) |
|||
| В |
in.
(mm) |
9-1/8
(232) |
8-3/8
(213) |
7-5/8
(194) |
7 (178) |
6-3/8
(162) |
5-3/4 (146) | ||||
| С |
in.
(mm) |
10-1/8
(257) |
9-3/8
(238) |
8-5/8
(219) |
8
(203) |
7-3/8
(187) |
6-3/4
(171) |
||||
-

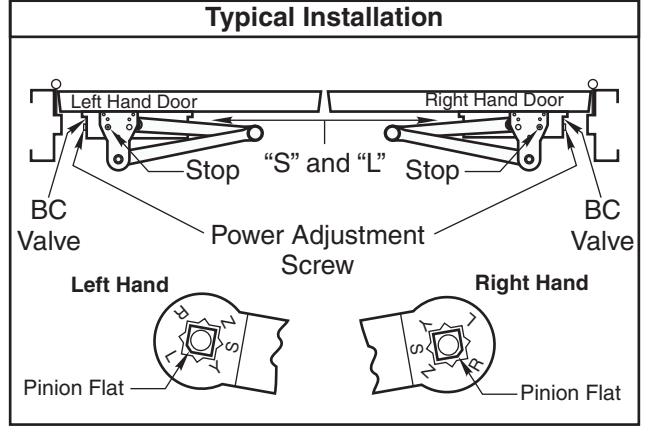

Install Main Arm: Close valves 'S' and 'L', then turn pinion shaft more than 50° to permit proper alignment of arm mark with pinion flat -
- 'L' for Left hand door.
- 'R' for Right hand door.
See "Main Arm Installation Instructions" below.
- Make closer adjustments (see page 6) before installing cover ... CAUTION: Do not back valves out of closer completely or a leak will result.
- Reopen valves by turning counter clockwise.
- With door closed, align soffit plate with mounting holes in frame. Fasten soffit plate to frame with flat head screws provided.... use spacer blocks 293S or 891, if required.

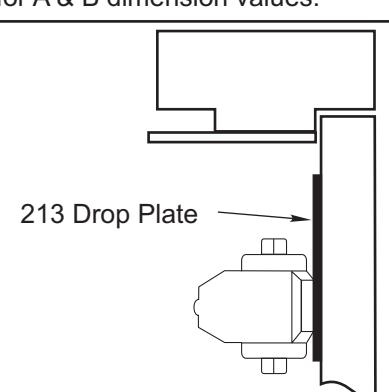

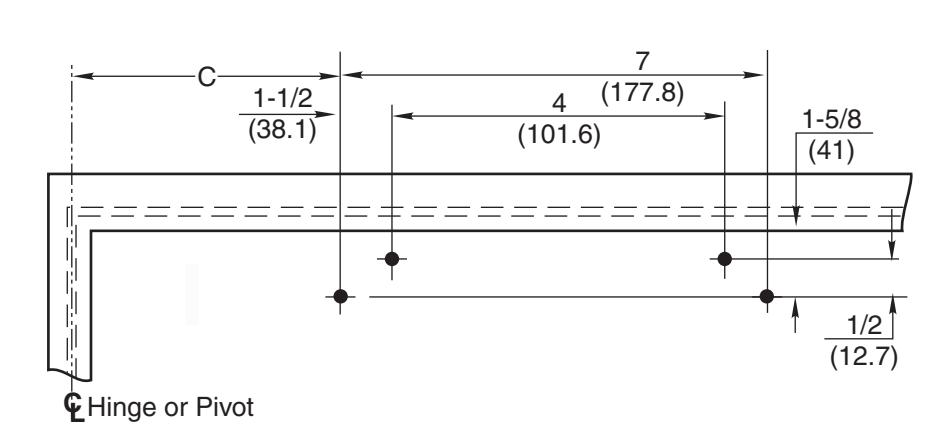

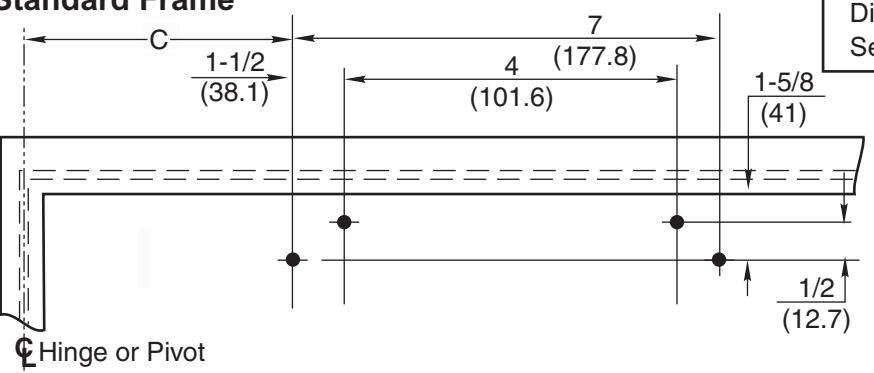

213 Drop Plate Mounting Holes
Standard Frame
Notes:
Left Hand Door Shown.
Same dimensions apply for Right Hand
Door measured from centerline of pivot point. Dimensions are in inches (mm).
See Page 3 for A & B dimension values.

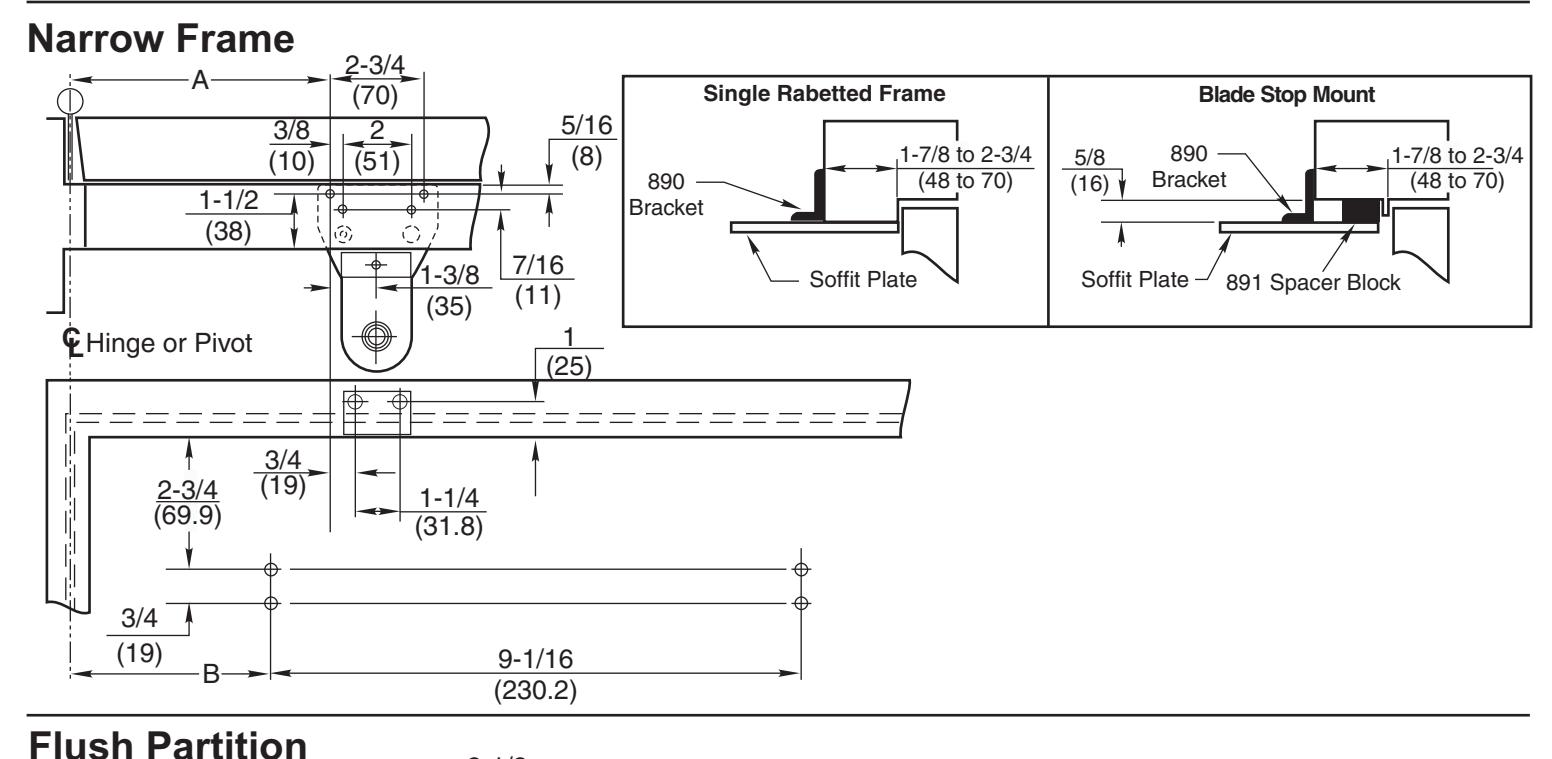

Narrow Frame

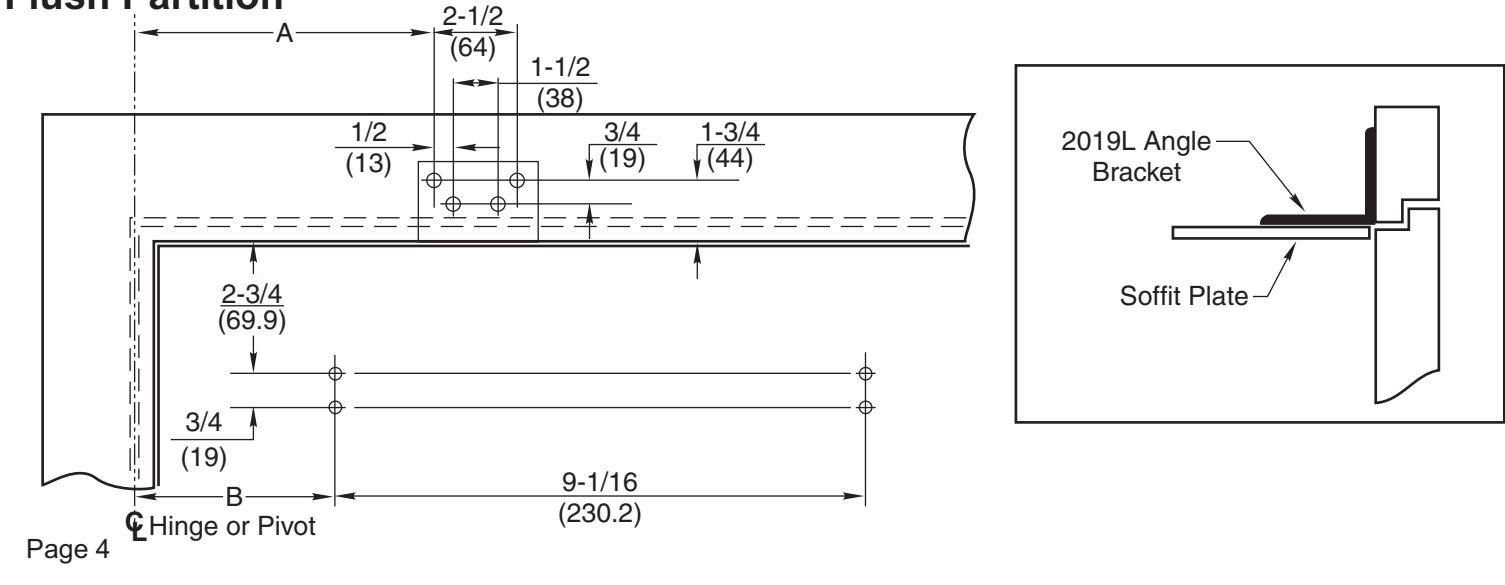

Flush Partition

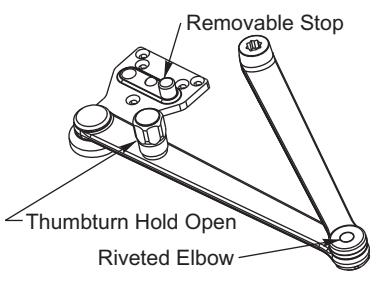

Thumbturn Hold-Open Feature
The Thumbturn Hold-Open feature is controlled by the knob located on the arm of the unit. Turning this knob clockwise will engage the Hold-Open mechanism and increase the Hold-Open force. Turning this knob counterclockwise will reduce the Hold-Open force and disengage the Hold-Open mechanism. DECREASE - - INCREASE
Friction Hold-Open Feature
Hold door open to opening angle desired and tighten holderadjustment-nut (wrench supplied) or use 1" Box or Open End wrench.
Unit Adjustment
Closing Power Adjustment–
Using "Power Adjustment Chart" from Page 3, select the correct number of turns for power adjustment shaft that corresponds with the installation. With 1/8" hex-key provided, rotate adjustment shaft full 360° clockwise turns to desired setting. After closer has been installed and proper adjustments made to the sweep and latch, it may be necessary to readjust spring power for good closing action.
Control Valve Adjustments
(See Figure 2.)

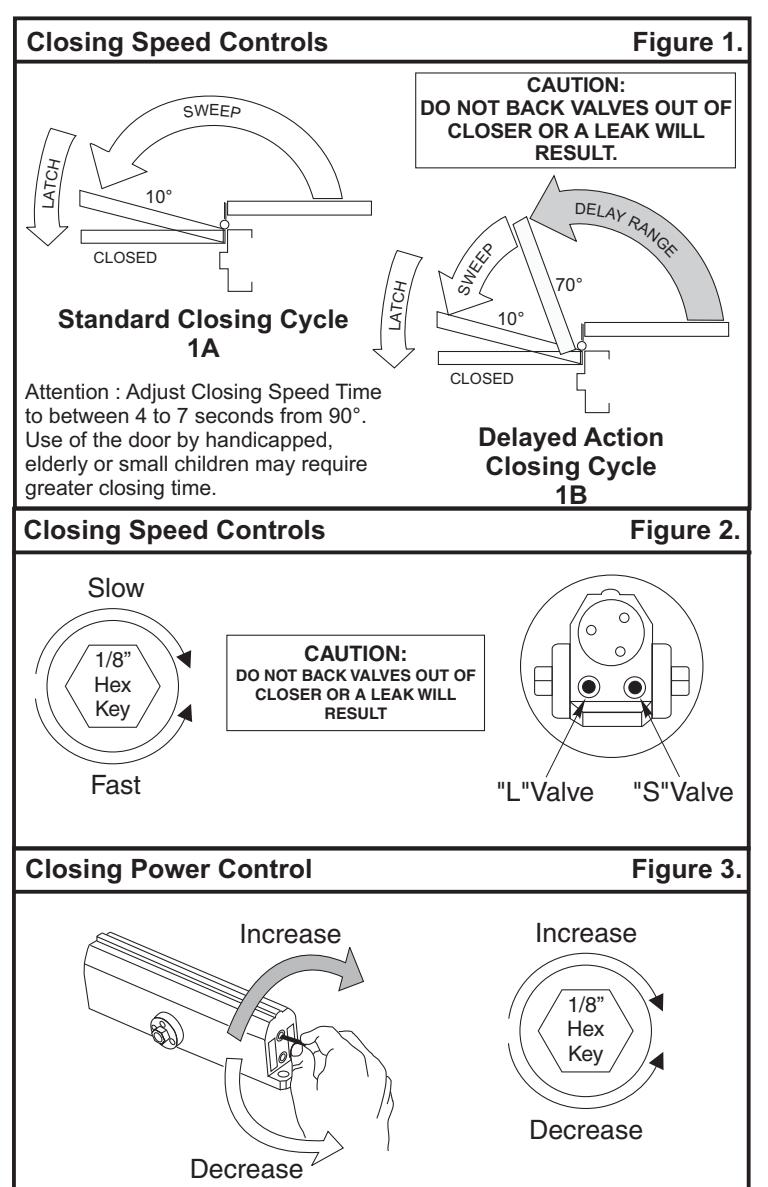

Closing Speed Controls (Figure 1A or 1B and 2.)
- Valve "S" Controls Sweep Range.
- Valve "L" Controls Latch Range.

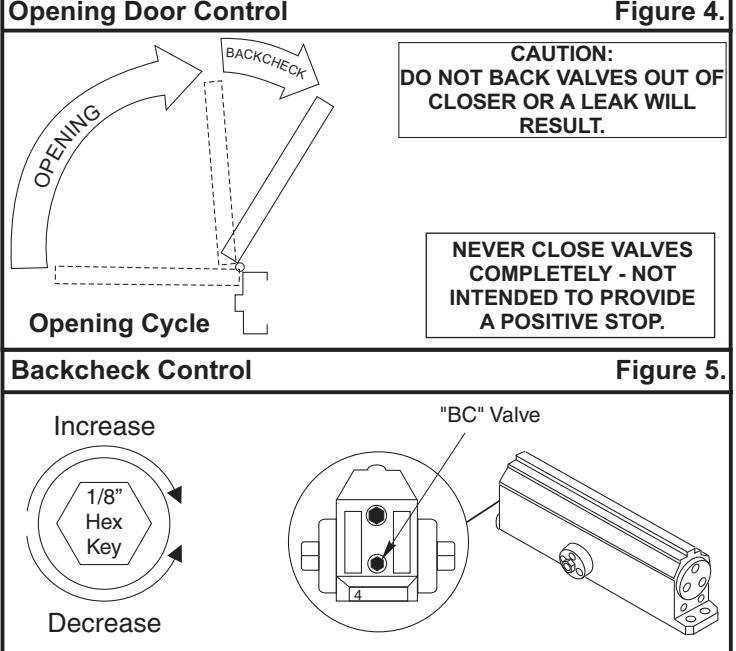

Opening Cycle
"Backcheck" valve controls the strength of cushioning in Backcheck Range. NEVER close this valve completely – it is not to provide a positive stop. (see Figure 4 and Figure 5).
