ASSA ABLOY ACCENTRA 5110, 5110BC Template_7351-0002
Open the original PDF document
View PDF

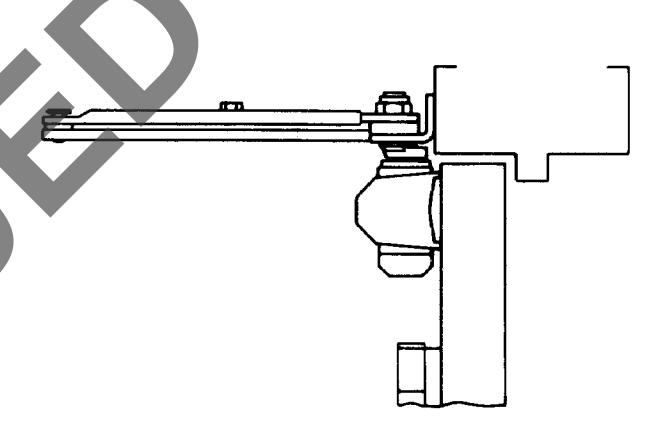

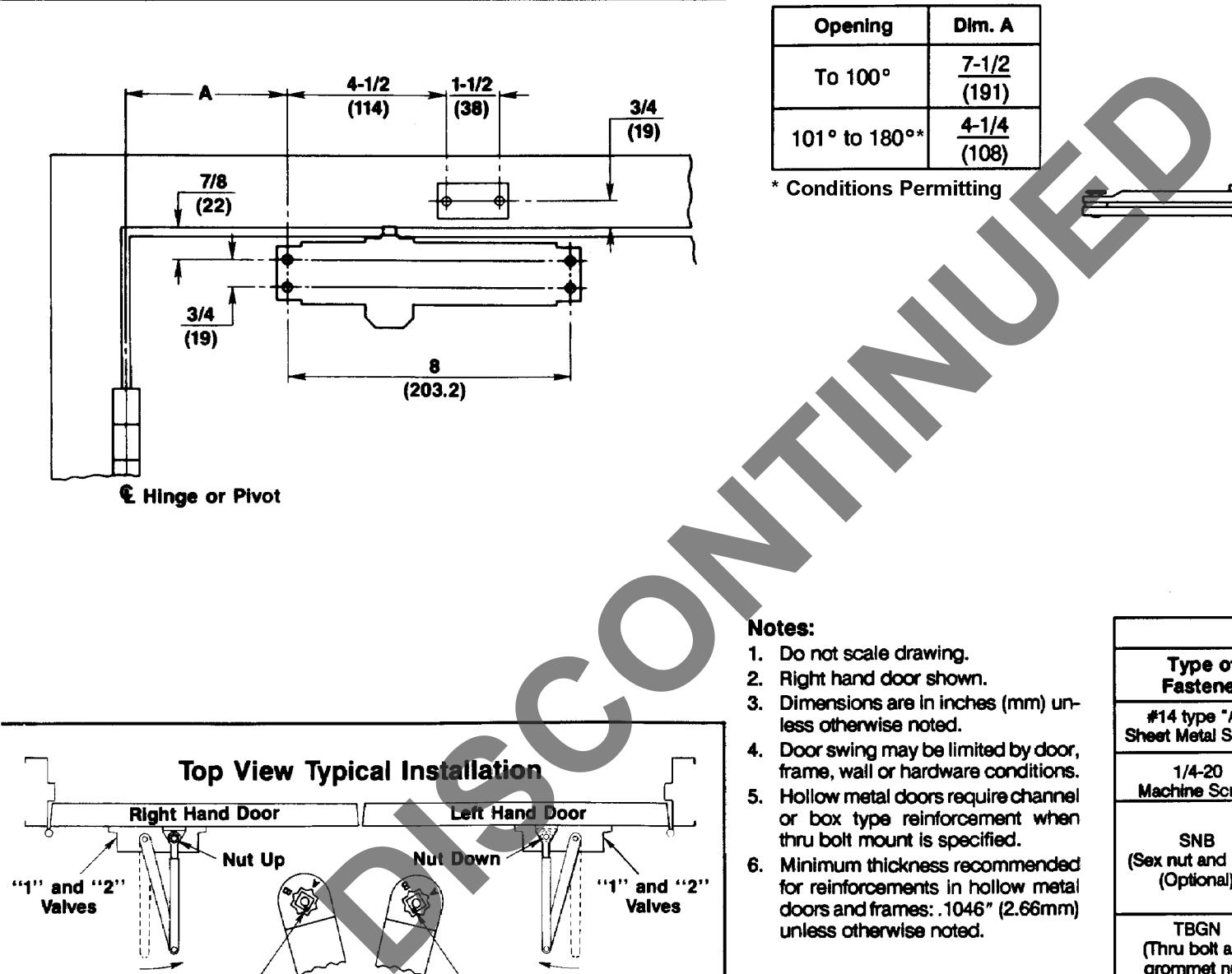

| Opening | Dim. A |
|---|---|
| To 100° |
7-1/2
(191) |
| 101° to 180°* |
4-1/4
(108) |
| Preparation for Fasteners | ||
|---|---|---|
|
Type of
Fastener |
Door or
Frame |
Preparation |
|
#14 type "A"
Sheet Metal Screw |
Wood | 7/32" (5.5mm) |
|
1/4-20
Machine Screw |
Hollow
Metal |
#7 (.201" dia.) or 5.10mm
drill - 1/4-20 tap |
| SNB (Sex rut and bolt) (Optional) Hollow Metal Aluminum or Wood |
9/32" (7.00mm) thru
3/8" (9.50mm) door face Opposite to closer |
|
| 3/8" (9.50mm) thru | ||
|
TBGN
(Thru bolt and grommet nut) (Optional) |
AH |
9/32" (7.00mm) thru
3/8" (9.50mm) dia. 3/8" (10mm) deep, door face opposite to closer |
