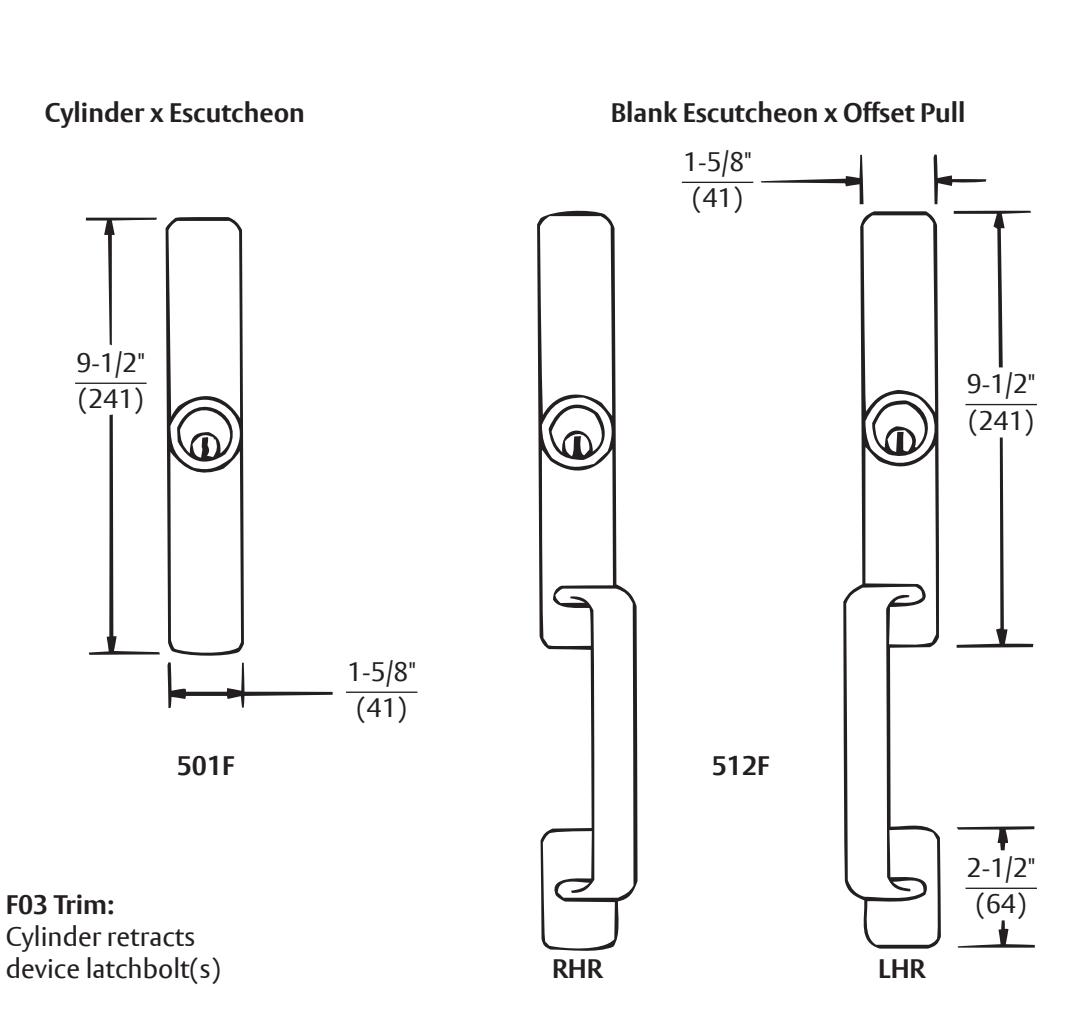

501F & 512F

Trim

Installation Instructions

501F & 512F Trim

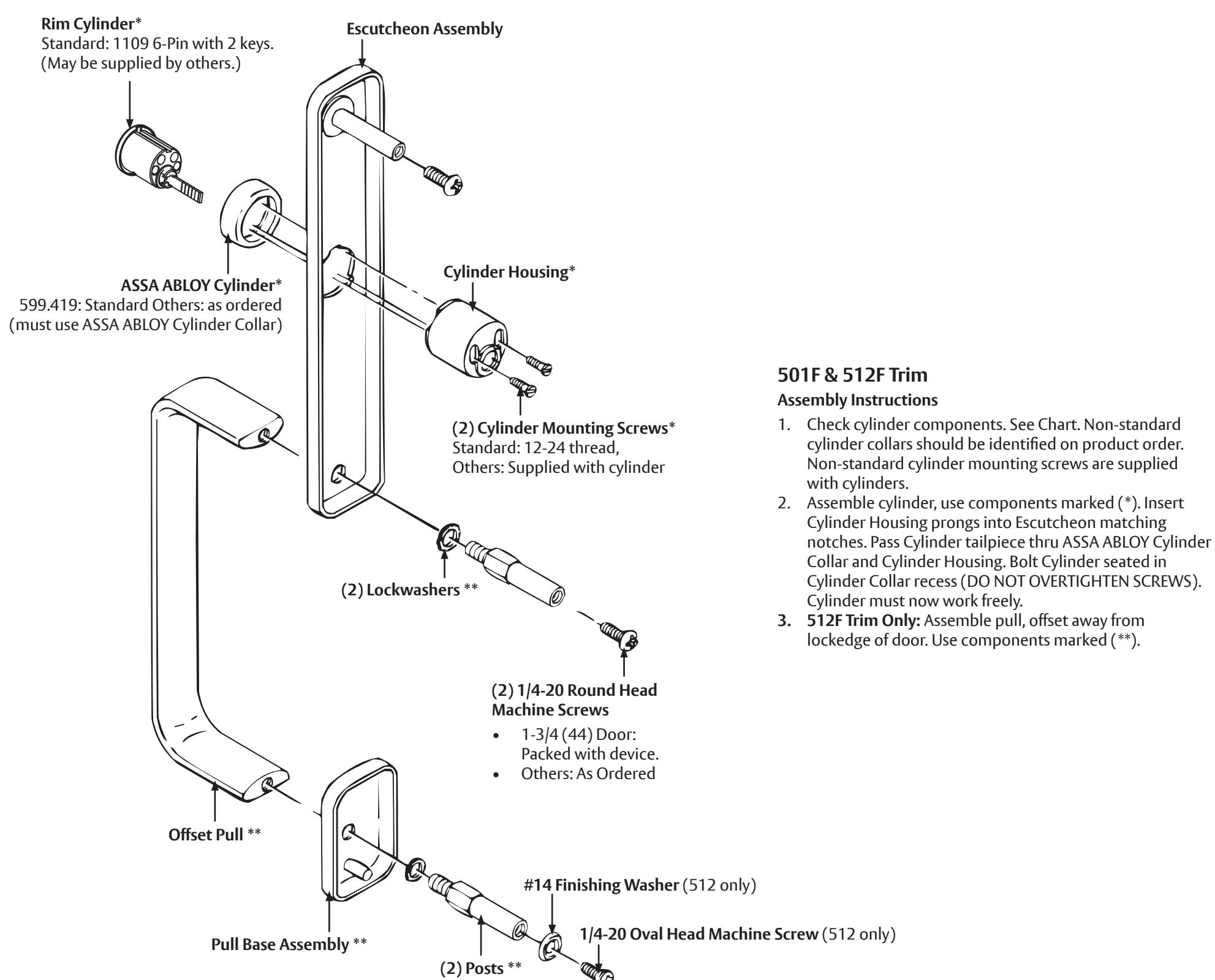

1. Check cylinder components. See Chart. Non-standard cylinder collars should be identified on product order.

• Non-standard cylinder mounting screws are supplied with cylinders. 2. Assemble cylinder, use components marked (*). Insert Cylinder Housing prongs into Escutcheon matching
• 3. 512F Trim Only: Assemble pull, offset away from lockedge of door. Use components marked (**).

599.419 CYLINDER COLLAR APPLICATIONS
Rim Cylinder	Cylinder Collar (Must be ASSA ABLOY's)
A	5/32 (4) H 1-1/2 (38)	Collar Number	Collar Dim. "H"
		599.419	19/32" (15)
Cylinder Length (Dim "A")	Cylinder Collar	ASSA ABLOY Cylinder	Cylinder Mounting Screws
Up to 1-9/16" (39)	599.419 (Std.)	6-Pin, Fixed Core	60-7000-1235-048 (Std.)
		7-Pin, Fixed Core
For other cylinder types, refer to 7000 Series Exit Device catalog for collar information.

All dimensions are in inches (mm).

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov.

WARNING

Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new firerated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-8470-0501-000 03/24

DOOR OUTSIDE FACE Device Mounting Holes & Trim 3-5/8" (92) 1-3/8" (35) Dia 1-3/8" (35) Deep Device 3/4 (19) Dia. Opposite Face (Break into 1-3/8" (35) Hole) 3-5/8" (92) 3/8" (10) Dia. Thru - 2 Holes measuring trim tailpiece. For 512F Only: (1) Oval head screw and (1) countersunk washer bolt bottom pull stud to 6-7/16" door (not shown). $\backslash overline\{(164)\}$ 3/8" (10) Dia. thru (512F Only) 3/8" (10) Dia. x 3/4" (19) Deep

Installation Instructions

1. Pull trim becomes handed after assembly (parts are universal). See other side for components and instructions.

ASSA ABLOY

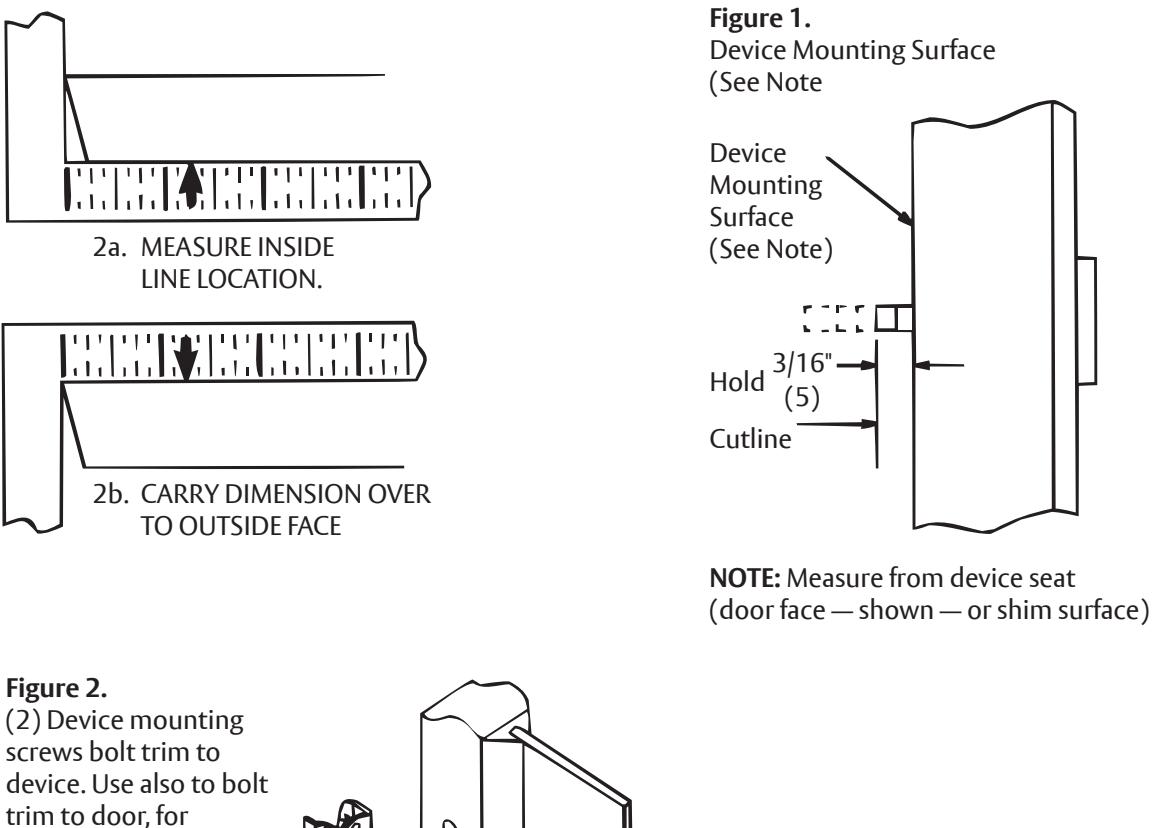

• 2. After marking door inside face for device location (Device Instructions), carry "Centerline of Device Mounting Holes" from outside doorface. Follow steps 2a and 2b, below.
• 3. Carry horizontal "Centerline of Device" from inside to outside door face.
• 4. Align trim template and tape to door, outside face. Caution: Office copiers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the dimensions written on the template to locate the holes on the door (do not
• use the template as a door marker). 5. Spot holes and prepared door for trim.
• 6. Mount trim to door. Fasten finger tight with 2 screws (packed with device). see Figure 2 .
• 7. With trim unlocked (tailpiece turning when the thumbturn is rotated or the thumbpiece is depressed), cut trim tailpiece as shown in Figure 1 .
• 8. Seat device so that trim tailpiece penetrates cam slot, as shown in Figure 2. Continue as shown in device instructions. Bottom pull post fastens to door, with oval head screw seated on countersunk washer (packed with trim).

T

LHR Door Shown

Tailpiece (T) gets into horizontal or vertical cam slot. (Cut per Fig. 1)

Dimensions given in inches

80-8470-0501-000 03/24

(512 Only)
