Yale ^®

Installation Instructions

80-9351-0101-010 (11-08)

Models 5101 5102

5103 5104

Non Hold Open Door Closers

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

With or without prefix "J" with or without suffix "BC" or "COV"

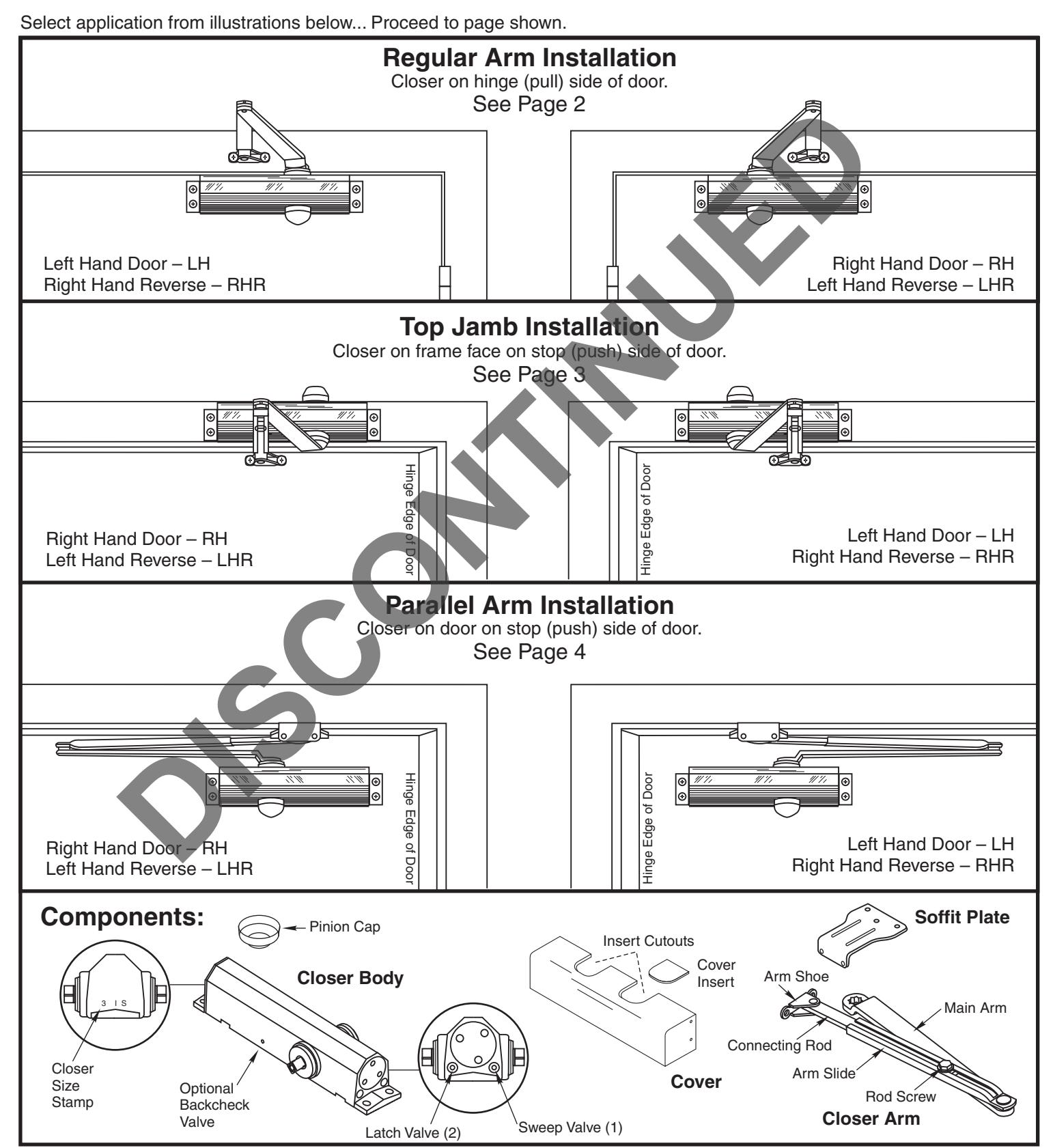

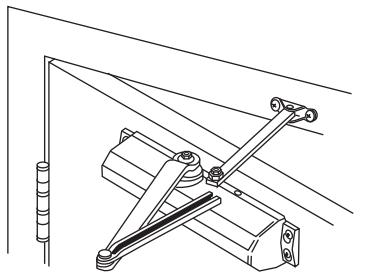

Regular Arm Mount

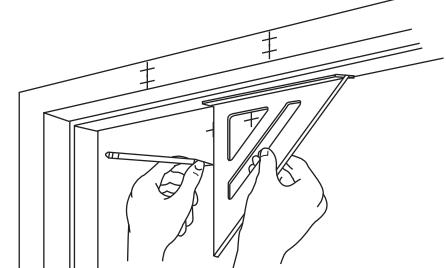

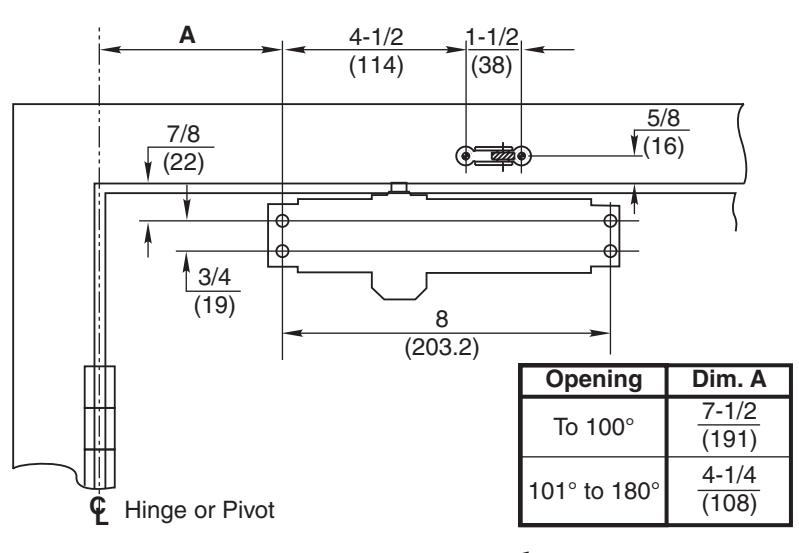

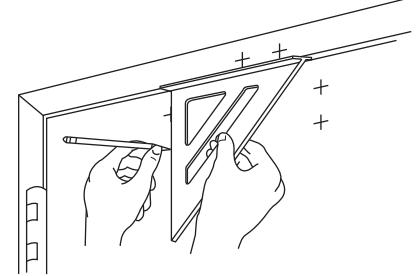

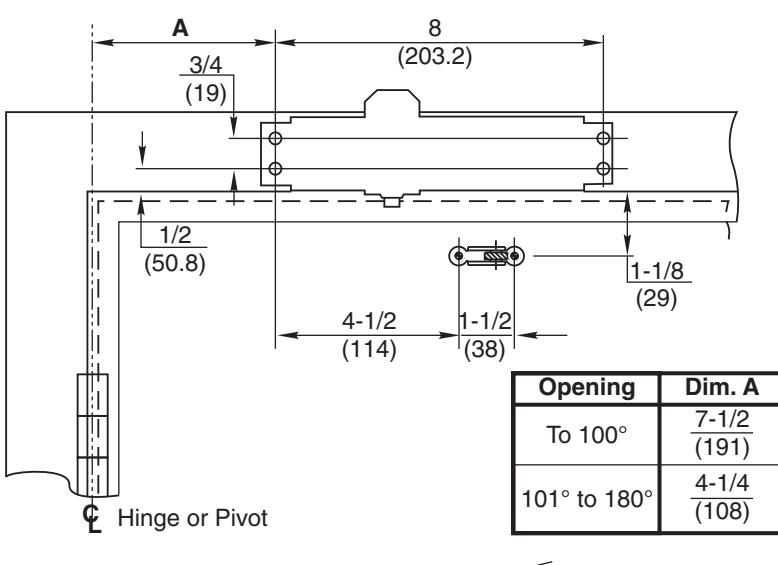

• Select door opening angle. Use template to locate holes on door and frame:
  • 4 on door for closer. 2 on frame face for arm shoe.
• Prepare for fasteners. See Chart on Page 2.

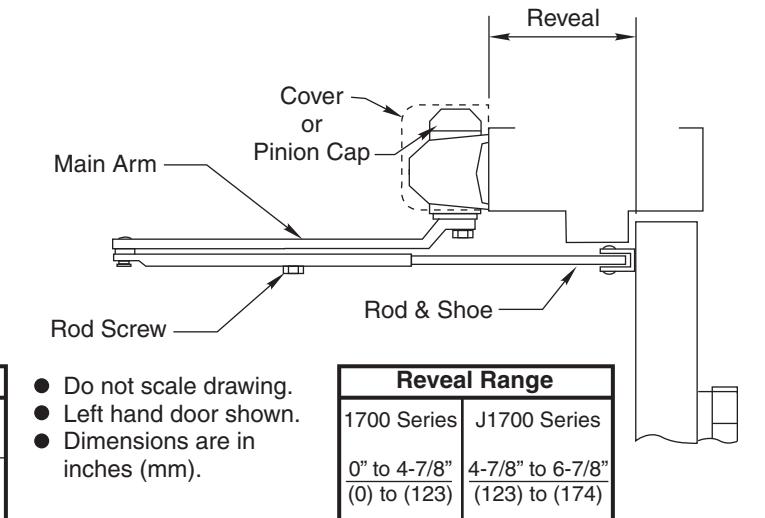

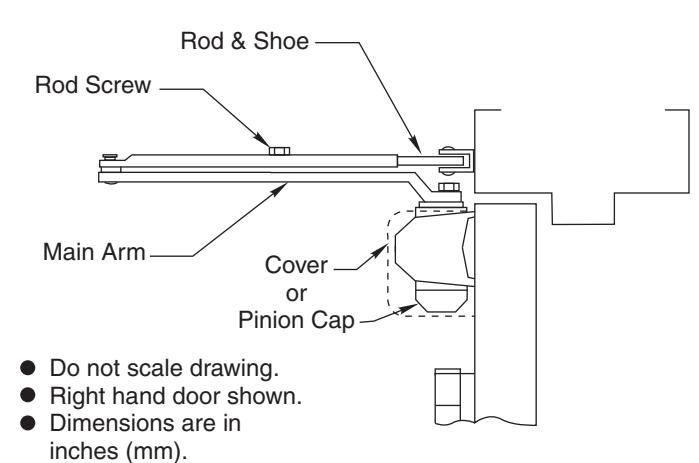

• Remove rod and shoe from arm assembly.
• Mount rod and shoe to frame. (Long end of shoe toward hinge.)

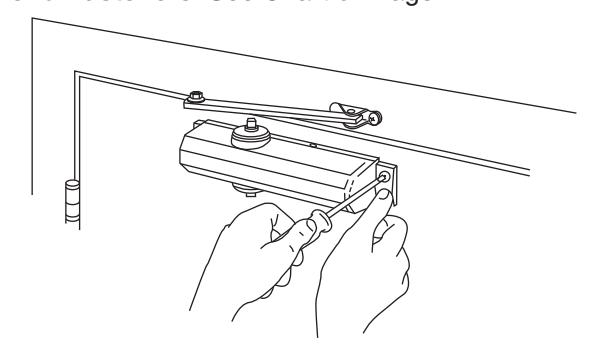

• Mount closer to door. Place end with two regulating valves toward hinge edge of door.

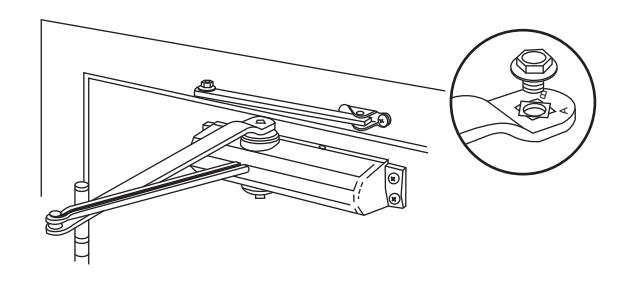

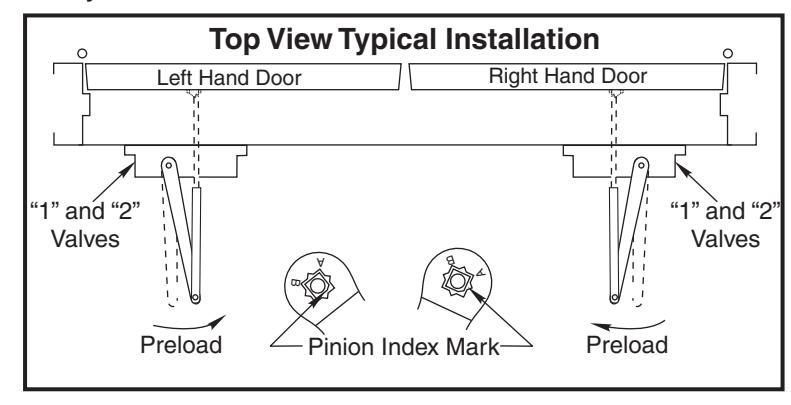

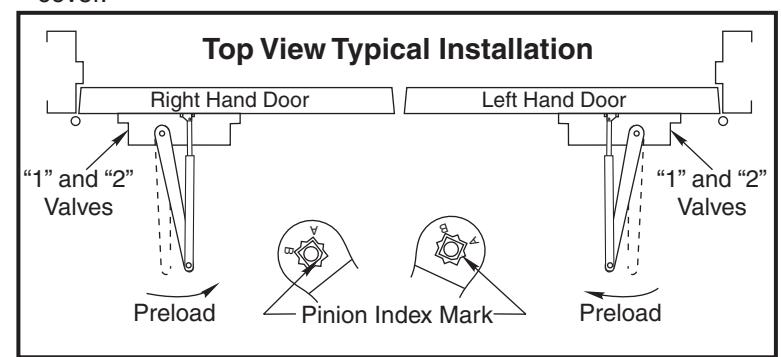

Install main arm on closer. Place arm on pinion at 90° angle (perpendicular) to frame, see "Typical Installation" chart below. Fasten with arm screw.

• Open door slightly. Align and insert adjusting rod into adjusting tube. Close door. Adjust forearm at 90° angle (perpendicular) to door. Tighten rod screw.
• Adjust closer. See Page 3 ... Then install pinion cap or cover.

Fasteners Chart
	Fasteners	Door or Frame	Drill-Sizes
Standard	#14 type "A" sheet metal screw	Wood	7/32" (5.56 mm.)
	1/4" - 20 machine screw	Metal	drill: #7 (0.201" dia.) Or 5.10mm tap: 1/4" - 20
nal	Sex nuts and bolts	Hollow-Metal	9/32" (7.00 mm.) through; 3/8" (9.50 mm.) Door face opposite to closer
Optional		Aluminum or Wood	3/8" (9.50 mm.) through
	Through-bolts and grommet-nuts	All	9/32" (7.00 mm.) through; 3/8" (9.50 mm.) dia. x 3/8" (9.50 mm.) deep on door face opposite to closer

Page 2 80-9351-0101-010 (11-08)

Top Jamb Mount Installation

-

below.

Instructions

• - Select door opening angle. Use template to locate holes on door and frame:
  • 4 on frame face on door for closer. 2 for arm shoe.
• - Prepare for fasteners. See Chart on Page 2.
• - Remove rod and shoe from arm assembly.
• - Mount rod and shoe to door. (Long end of shoe toward

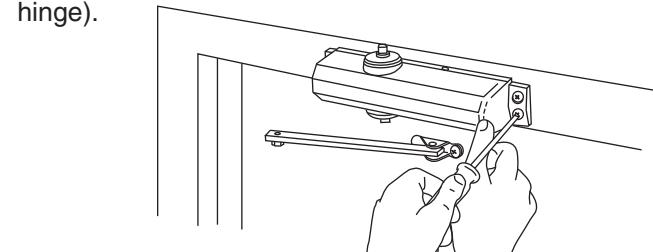

- Mount closer to frame. Place end with two regulating valves toward hinge edge of door.

• Install main arm on closer. Place arm on pinion at 90 angle (perpendicular) to frame, see "Typical Installation" chart °
• - Reassemble arm. Adjust forearm at 90 ° angle (perpendicular) to door. Tighten rod screw.
• - Adjust closer. See below.

Val e Adjustments v

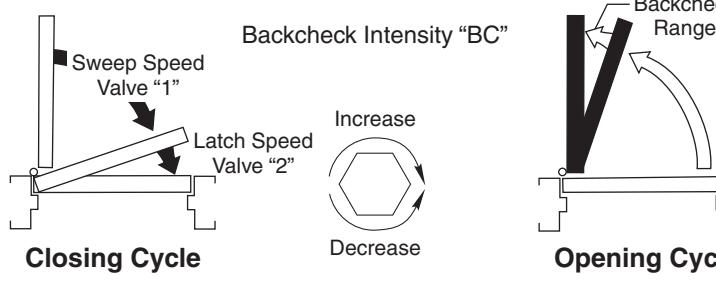

Closing Speeds "1" and "2"

• - Closing power adjustment. To increase power at "latch" by 15% refer to "Arm Shoe Adjustment" for Regular Arm of for Top Jamb installations only.
• - Closing speed controlled by valve marked "1" (sweep range) and by valve marked "2" (latch range).

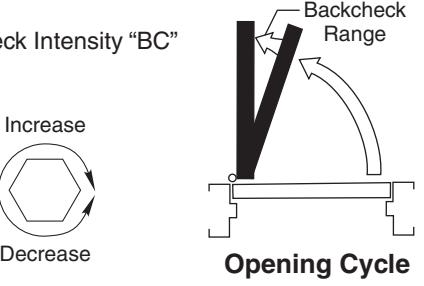

• - Backcheck Model Closers only Never close "BC" valve completely. suffix "BC". Backcheck controlled by va ve "BC". l

Installation Instructions

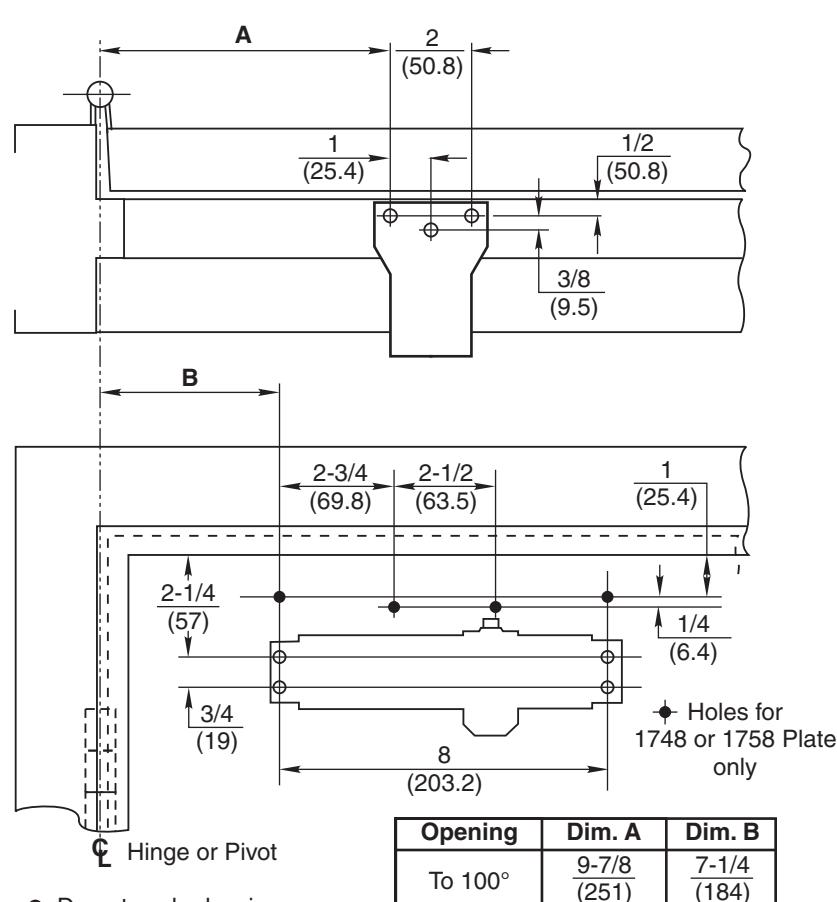

Parallel Arm Mount

7-1/8

(181)

101° to 180°

4-1/4

(108)

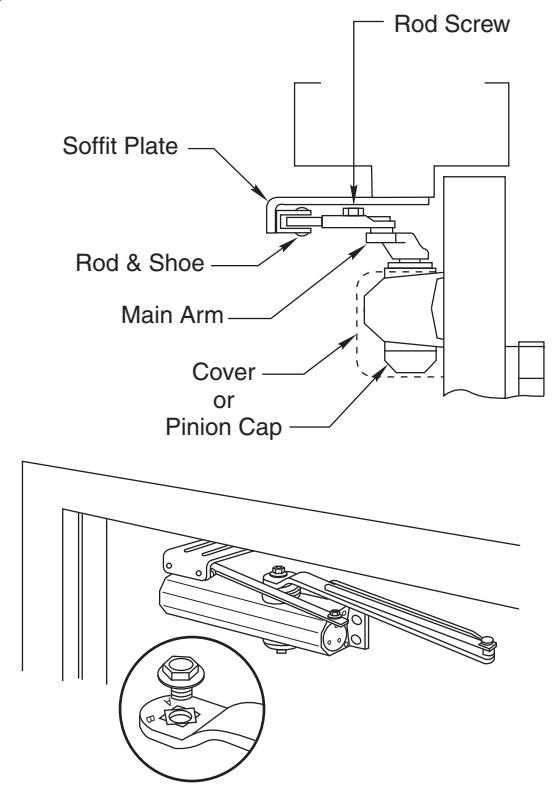

• Remove rod and shoe from arm assembly.
• Fasten rod and shoe to soffit plate.
• Mount closer or drop plate and closer to door. Place end with two regulating valves toward lock edge of door.

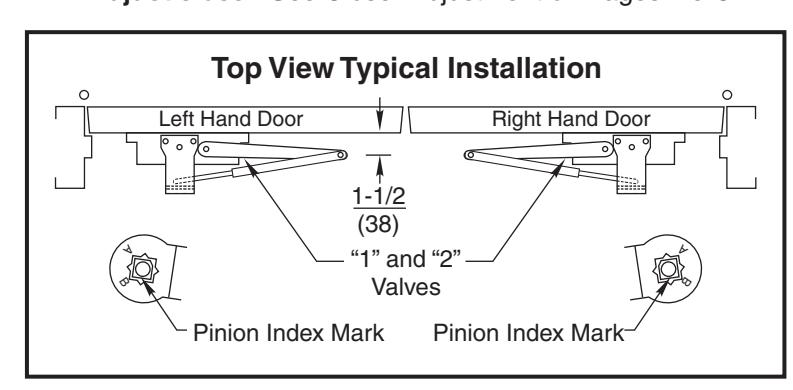

• Install main arm on closer. Rotate pinion 45° toward hinge edge of door to align main arm letter "A" (right hand) or "B" (left hand) with Pinion Index Mark, see "Typical Installation" this page. Tighten rod screw.
• Reassemble arm. Adjust forearm length to set arm elbow about 1-1/2 (38) from door. Tighten rod screw.
• Adjust closer. See Closer Adjustment on Pages 2 & 3.

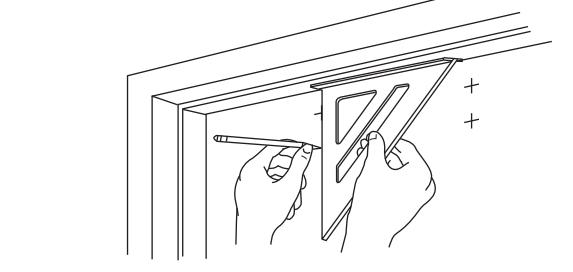

• Select door opening angle. Use template to locate holes on door and frame:
  • 4 on door for closer (or drop plate).
  • 3 on frame for soffit plate.
• Prepare for fasteners. See Chart on Page 2.

Mount soffit plate to frame.

ASSA ABLOY, the global leader in door opening solutions

Do not scale drawing.

Dimensions are in inches (mm).

Left hand door shown.

An ASSA ABLOY Group brand 3000 Highway 74 East • Monroe, NC 28112 Tel: (800)-438-1951 • Fax: (800)-338-0965 www.yalecommercial.com
